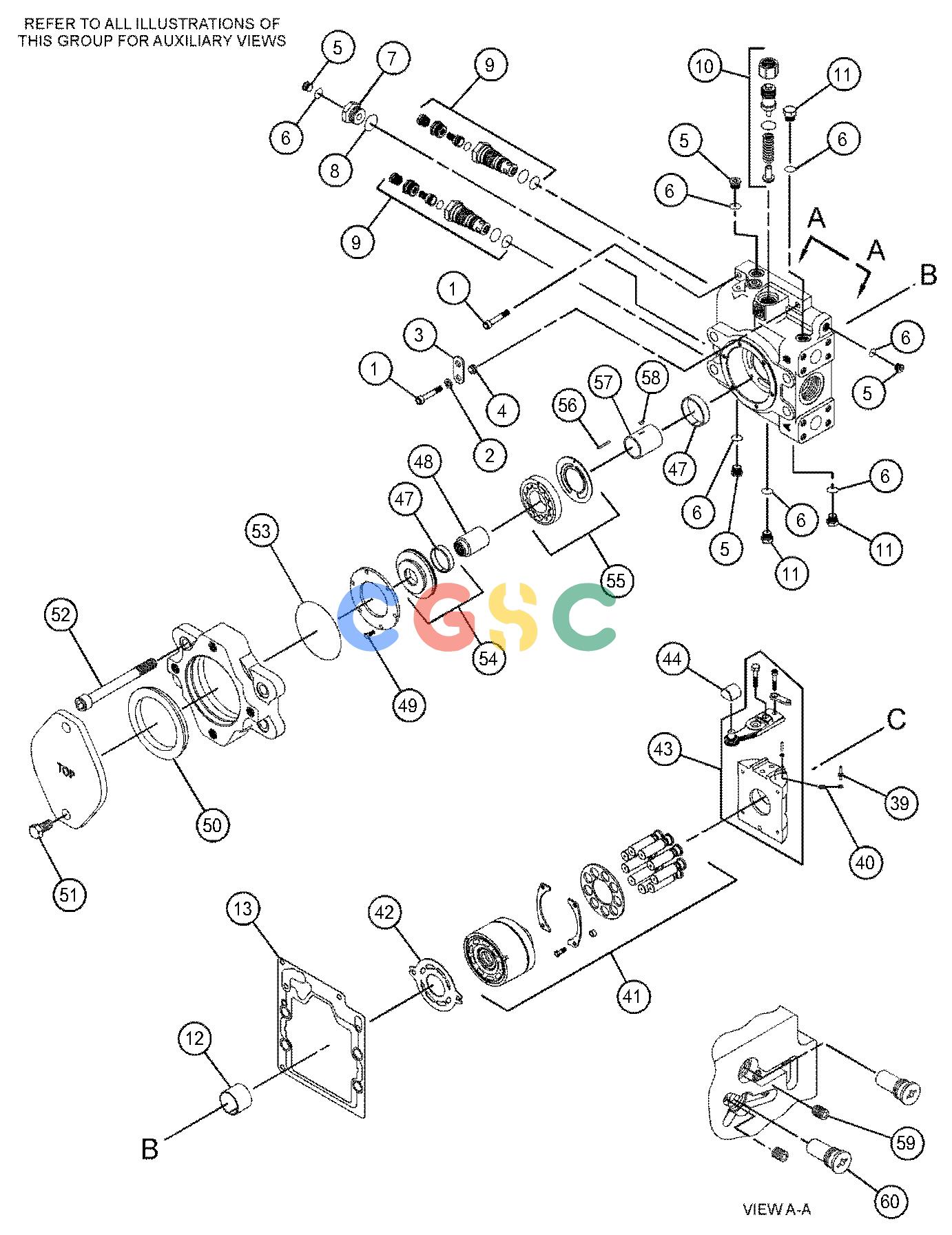

卡特零件查询（BG655D） 426-4843: PUMP GP-PISTON
广数供应链运营团队, 17 02月, 2025，浏览：
762 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-0338M | [2] | BOLT-SOCKET HEAD(M8X1.25X45-MM) | |
| 2. | 098-3039 | [1] | WASHER(8.33X15X2.12-MM THK) | |
| 3. | 126-6640 | [1] | BRACKET-LIFTING | |
| 4. | 134-1827 | [1] | SPACER | |
| 5. | 9S-8004 | [9] | PLUG(9/16-18-THD) | |
| 6. | 3J-1907 | [12] | SEAL-O-RING | |
| 7. | 7R-3394 | [1] | FITTING | |
| 8. | 7M-8485 | [1] | SEAL-O-RING | |
| 9. | 229-8393 | [2] | KIT-VALVE | |
| | | | (EACH INCLUDES VALVE & O-RING SEALS) |
| 10. | 7R-3825 | [1] | KIT-RELIEF VALVE | |
| | 033-6027 | [1] | SEAL-O-RING | |
| | 5E-8748 | [1] | SPRING | |
| | 6R-1702 | [1] | NUT-SPECIAL(7/8-14-THD) | |
| | 6R-1703 | [1] | POPPET | |
| | 6R-1704 | [1] | PLUG AS | |
| 11. | 9S-4191 | [3] | PLUG(9/16-18-THD) | |
| 12. | 1G-9193 | [1] | BEARING-JOURNAL | |
| 13. | 126-6638 | [1] | GASKET-END CAP | |
| 14. | 3D-2824 | [2] | SEAL-O-RING | |
| 15. | 9S-8008 | [2] | PLUG(1-1/16-12-THD) | |
| 16. | 426-4845Y | [1] | VALVE GP-PUMP CONTROL(PROPEL) | |
| 17. | 7X-9232 | [3] | PLUG-VENT(PISTON PUMP) | |
| 18. | 1G-9185 | [1] | BEARING-ROLLER | |
| 19. | 319-5223 | [1] | SEAL-LIP TYPE | |
| 20. | 229-8396 | [1] | PLATE-RETAINER | |
| 21. | 8T-0269M | [3] | BOLT-SOCKET HEAD(M6X1X20-MM) | |
| 22. | 319-5224 | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEAL, LIP SEAL & CARRIER SEAL) |
| 23. | 1G-9188 | [1] | SEAL-O-RING | |
| 24. | 6V-7700 | [1] | RING-RETAINING | |
| 25. | 126-6643 | [1] | SHAFT-PUMP | |
| 26. | 3J-7354 | [1] | SEAL-O-RING | |
| 27. | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 28. | 364-0735 | [1] | KIT-SERVO PISTON | |
| 29. | 364-0736 | [2] | CYLINDER AS | |
| 30. | 6V-5215M | [6] | BOLT(M8X1.25X16-MM) | |
| 31. | 161-3931 | [2] | POST-GUIDE | |
| 32. | 1G-9182 | [1] | SEAL-O-RING | |
| 33. | 203-8494 | [1] | INSERT AS | |
| 34. | 132-6697M | [6] | BOLT(M8X1.25X20-MM) | |
| 35. | 5E-8765 | [2] | NUT | |
| 36. | 307-8306 | [2] | SEAT-SPRING | |
| 37. | 456-1382 | [2] | SPRING | |
| 38. | 203-8505 | [2] | SHIM(0.51-MM THK) | |
| 39. | 199-7051 | [1] | PIN | |
| 40. | 1G-9177 | [1] | LINK | |
| 41. | 319-5221Y | [1] | ROTATING GP-PUMP | |
| 42. | 145-6892 | [1] | PLATE-VALVE | |
| 43. | 319-5226 | [1] | KIT-SWASHPLATE | |
| | | | (INCLUDES SCREW, BOLT, FEEDBACK LINK, CAGE LOCK LINK, SERVO ARM, PINS, WASHER & SWASH PLATE) |
| 44. | 366-0724 | [1] | BLOCK-SLIDER | |
| 45. | 319-5219 | [1] | KIT-BEARING | |
| | | | (INCLUDES CRADLE BEARINGS) |
| 46. | 077-8353 | [2] | PIN(SPRING) | |
| 47. | 5E-8473 | [2] | CLAMP | |
| 48. | 1G-9198 | [1] | COUPLING | |
| 49. | 6V-8837M | [6] | BOLT(M6X1X16-MM) | |
| 50. | 340-7078 | [1] | SEAL | |
| 51. | 6H-1717 | [2] | BOLT(1/2-13X1.125-IN) | |
| 52. | 7X-2557M | [4] | BOLT(M16X2X140-MM) | |
| 53. | 5E-8771 | [1] | SEAL-O-RING | |
| 54. | 109-5166 | [1] | COVER-CHARGE | |
| 55. | 108-8537 | [1] | PUMP GP-GEROTOR(CHARGE) | |
| 56. | 1G-9196 | [1] | PIN | |
| 57. | 109-5165 | [1] | SHAFT-CHARGE | |
| 58. | 7R-3453 | [1] | KEY-WOODRUFF | |
| 59. | 5E-8777 | [2] | PLUG | |
| 60. | 5E-8747 | [2] | VALVE-CHECK | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 456-1383 | [1] | KIT-SEAL | |
| | | | (INCLUDES FILTER, BOLTS, NUTS, O-RING SEALS, PISTON RING KIT, GASKET END CAP, SEAL KIT & BACKUP RINGS) |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
