卡特零件查询（BG655D） 230-9160: VALVE GP-CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
574 次

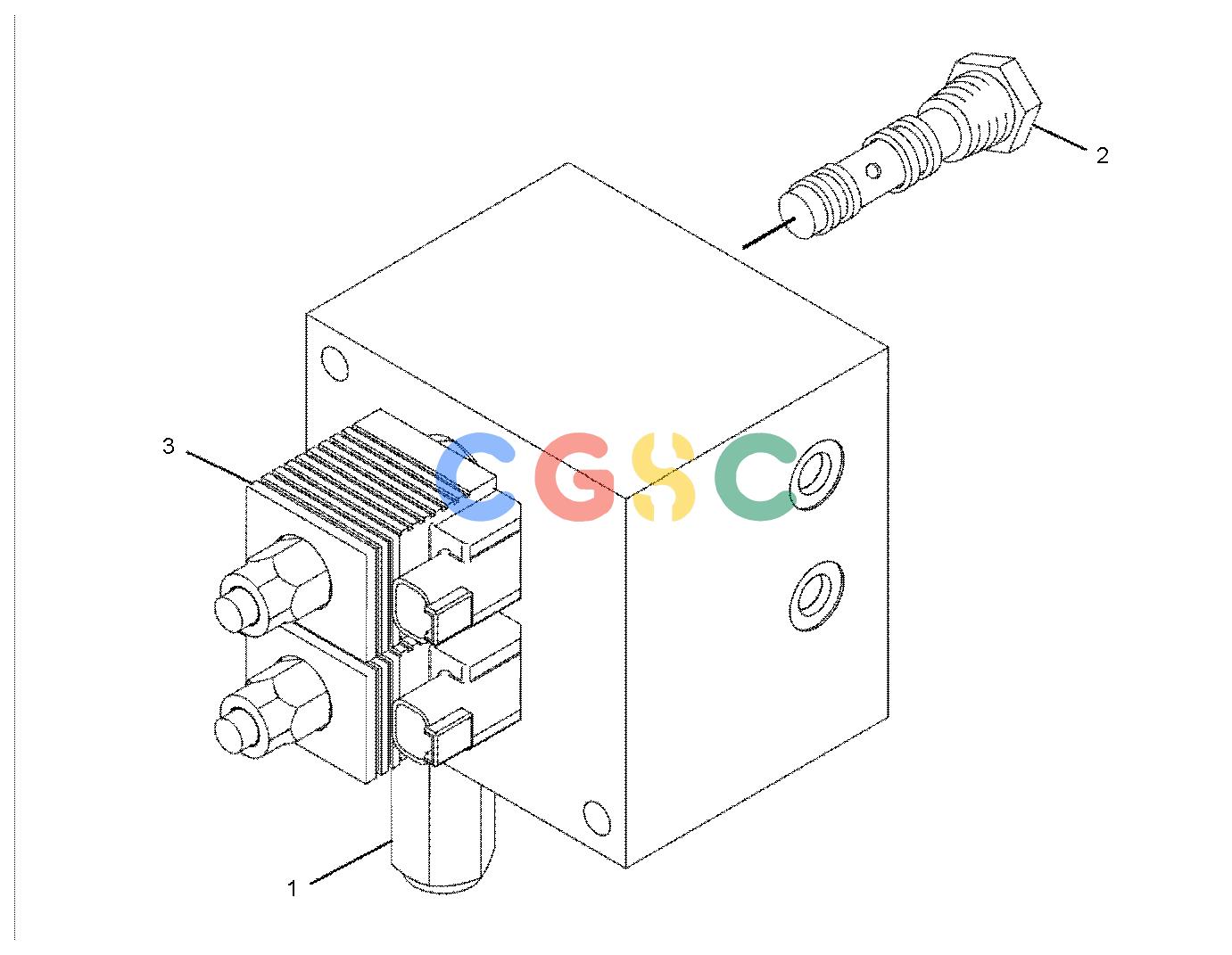

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 260-7625H | [1] | KIT-PRESSURE REDUCING VALVE | |
| 2. | 260-7626H | [2] | KIT-CHECK VALVE | |
| 3. | 260-6151J | [2] | KIT-SOLENOID VALVE | |
| | | | (EACH INCLUDES) |
| | 230-4082 | [1] | NUT-SPECIAL | |
| | 260-6162 | [1] | COIL-SOLENOID | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 255-6259J | [1] | KIT-SEAL | |
| | | | (INCLUDES BACKUP RINGS & O-RING SEALS) |
| | 245-6141H | [1] | KIT-SEAL(SOLENOID VALVE) | |
| | | | (INCLUDES BACKUP RINGS & O-RING SEALS) |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
