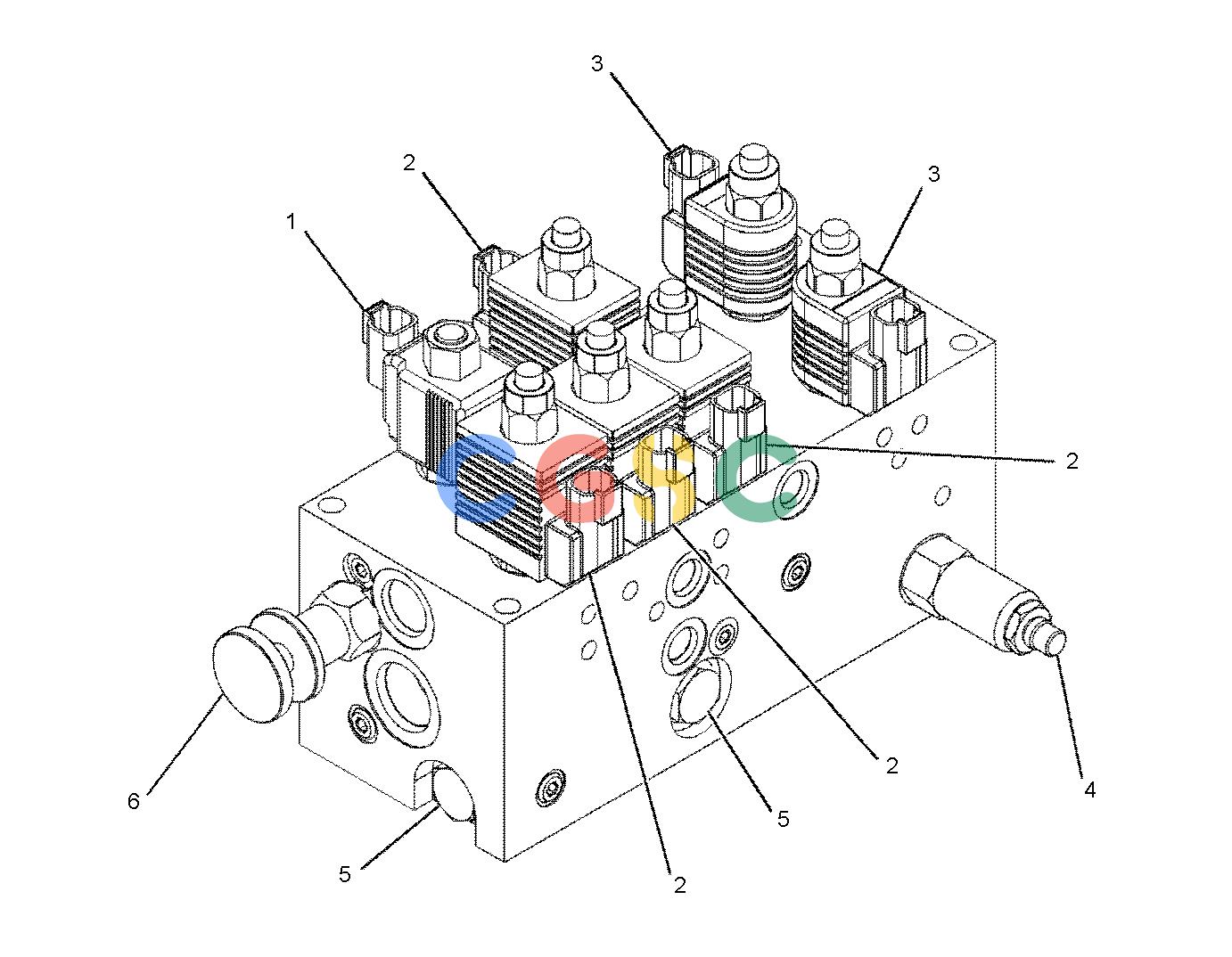

卡特零件查询（BG655D） 269-0536: VALVE GP-CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
690 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 305-5295 | [1] | VALVE GP-SOLENOID(SCREED ASSIST, ON/OFF) | |
| | 267-3191 | [1] | COIL-SOLENOID | |
| | 305-5296 | [1] | KIT-SEAL(SOLENOID VALVE) | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| | 305-5297 | [1] | KIT-COIL NUT | |
| | | | (INCLUDES COIL NUT & O-RING SEALS) |
| 2. | 260-6151 | [4] | KIT-SOLENOID VALVE | |
| | | | (EACH INCLUDES CARTRIDGE VALVE, NUT, SEAL KIT & SOLENOID COIL) |
| 3. | 275-2287 | [2] | VALVE GP-SOLENOID(PROPEL MOTOR SHIFT) | |
| | | | (EACH INCLUDES) |
| | 230-4082 | [1] | NUT-SPECIAL | |
| | 255-6417 | [1] | KIT-SEAL(SOLENOID VALVE) | |
| | | | (INCLUDES O-RINGS & BACKUP RINGS) |
| | 255-8036 | [1] | COIL-SOLENOID | |
| 4. | 275-2289 | [1] | VALVE GP-PRESSURE REDUCING(AUXILIARY CIRCUIT) | |
| | 245-6141 | [1] | KIT-SEAL(PRESSURE REDUCING VALVE) | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| 5. | 346-9503 | [3] | KIT-CHECK VALVE | |
| | | | (EACH INCLUDES CHECK VALVE & SEAL KIT) |
| 6. | 284-3560 | [1] | VALVE AS-PRESSURE RELIEF | |
| | 245-6141 | [1] | KIT-SEAL(PRESSURE RELIEF VALVE) | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
