卡特零件查询（BG655D） 282-1792: CONTROL GP-STEERING
广数供应链运营团队, 17 02月, 2025，浏览：
475 次

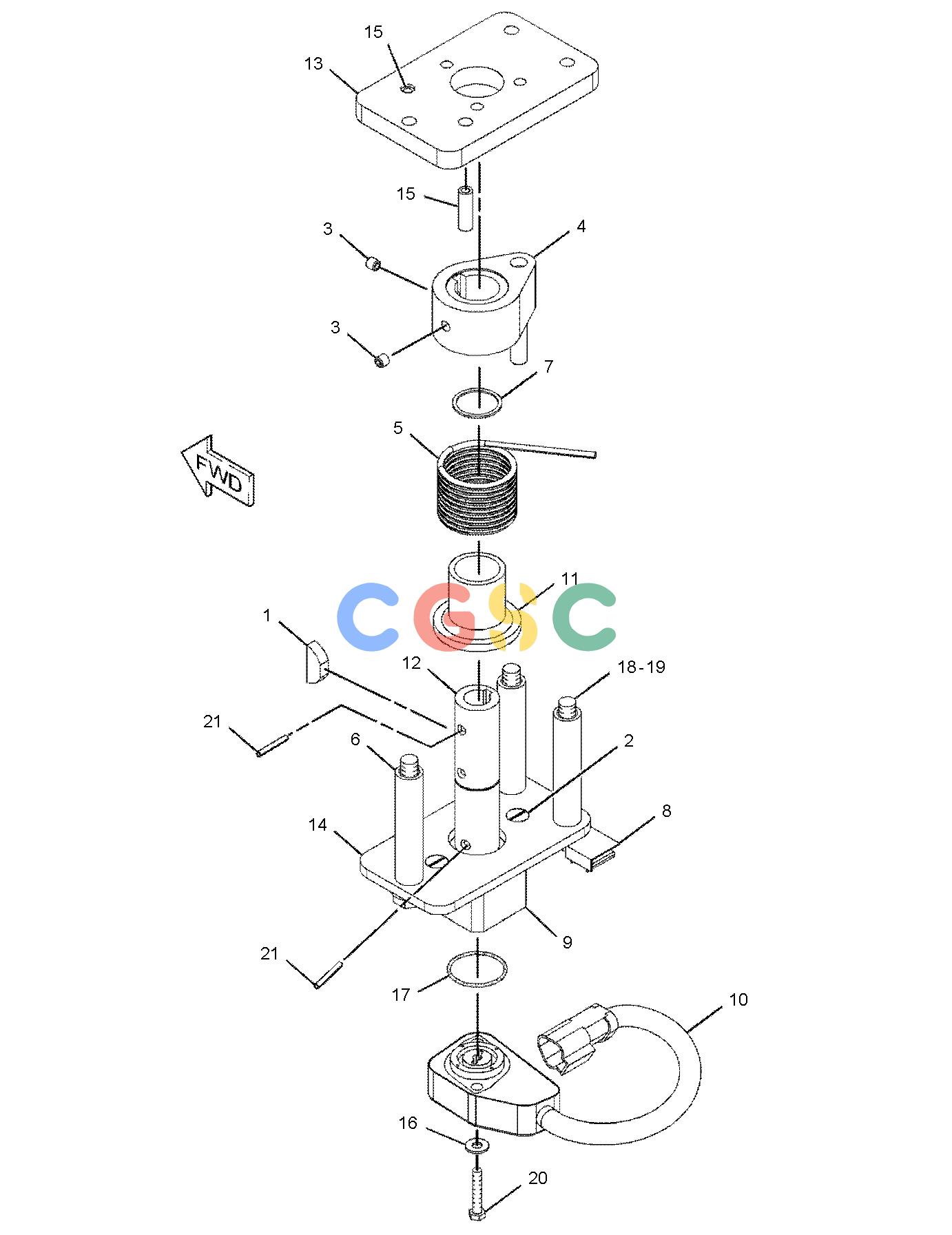

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1B-8714 | [1] | KEY-WOODRUFF | |
| 2. | 4B-1282 | [2] | SCREW-MACHINE(1/4-20X0.75-IN) | |
| 3. | 4B-9806 | [2] | SETSCREW-SOCKET(1/4-20X0.25-IN) | |
| 4. | 7R-5370 | [1] | ARM AS | |
| 5. | 7R-5382 | [1] | SPRING | |
| 6. | 7R-5383 | [3] | TUBE | |
| 7. | 081-7511 | [1] | RING | |
| 8. | 116-0118 | [1] | CLIP | |
| 9. | 169-8332 | [1] | BLOCK AS-MOUNTING | |
| 10. | 195-8090Y | [1] | SENSOR GP-POSITION(STEERING) | |
| 11. | 250-3949 | [1] | SPACER | |
| 12. | 282-1777 | [1] | SHAFT | |
| 13. | 282-1778 | [1] | PLATE | |
| 14. | 282-1779 | [1] | PLATE | |
| 15. | 1T-0550 | [2] | PIN-SPRING | |
| 16. | 4B-4274 | [2] | WASHER(5.5X13X1.2-MM THK) | |
| 17. | 6V-0894 | [1] | SEAL-O-RING | |
| 18. | 8T-4121B | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 19. | 8T-4178M | [3] | BOLT(M10X1.5X90-MM) | |
| 20. | 8T-7368M | [2] | SCREW-MACHINE(10-32X28.58-MM) | |
| 21. | 8T-0277 | [2] | PIN-SPRING | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
