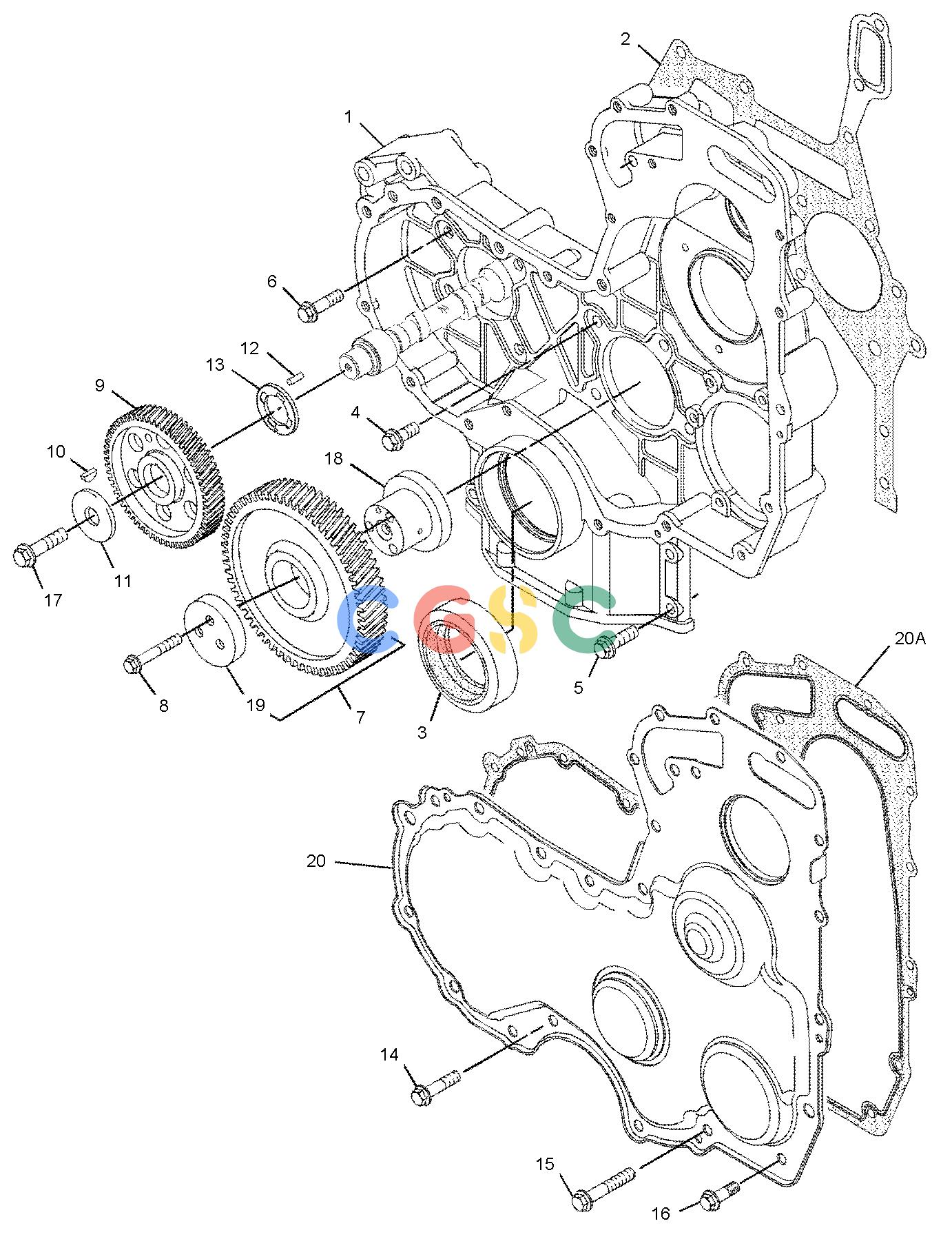

卡特零件查询（BG655D） 277-3014: HOUSING GP-FRONT
广数供应链运营团队, 17 02月, 2025，浏览：
133 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 326-5063 | [1] | HOUSING-FRONT | |
| 2. | 277-3012 | [1] | GASKET-COVER | |
| 3. | 277-3013 | [1] | SEAL | |
| 4. | 6I-0217M | [6] | BOLT(M8X1.25X20-MM) | |
| 5. | 6I-0645M | [4] | BOLT(M8X1.25X25-MM) | |
| 6. | 101-3895M | [2] | BOLT(M8X1.25X35-MM) | |
| 7. | 251-4336 | [1] | GEAR AS-IDLER(73-TEETH) | |
| 8. | 6I-0650M | [3] | BOLT(M10X1.5X65-MM) | |
| 9. | 425-7103 | [1] | GEAR(68-TEETH) | |
| 10. | 067-6135 | [1] | KEY-WOODRUFF | |
| 11. | 133-1011 | [1] | WASHER | |
| 12. | 067-6179 | [1] | DOWEL | |
| 13. | 232-3666 | [1] | WASHER-THRUST | |
| 14. | 124-3815M | [9] | BOLT(M8X1.25X16-MM) | |
| 15. | 100-3751M | [5] | BOLT(M8X1.25X65-MM) | |
| 16. | 100-4830M | [1] | BOLT(M10X1.5X20-MM) | |
| 17. | 7C-4616M | [1] | BOLT(M12X1.75X45-MM) | |
| 18. | 324-0444 | [1] | HUB-IDLER GEAR | |
| 19. | 346-0408 | [1] | PLATE | |
| 20. | 226-8767 | [1] | COVER AS-FRONT | |
| 20A. | 226-8766 | [1] | GASKET-COVER | |
| | M | | METRIC PART |
