卡特零件查询（BG655D） 333-2713: PLATE & FILM GP
广数供应链运营团队, 17 02月, 2025，浏览：
618 次

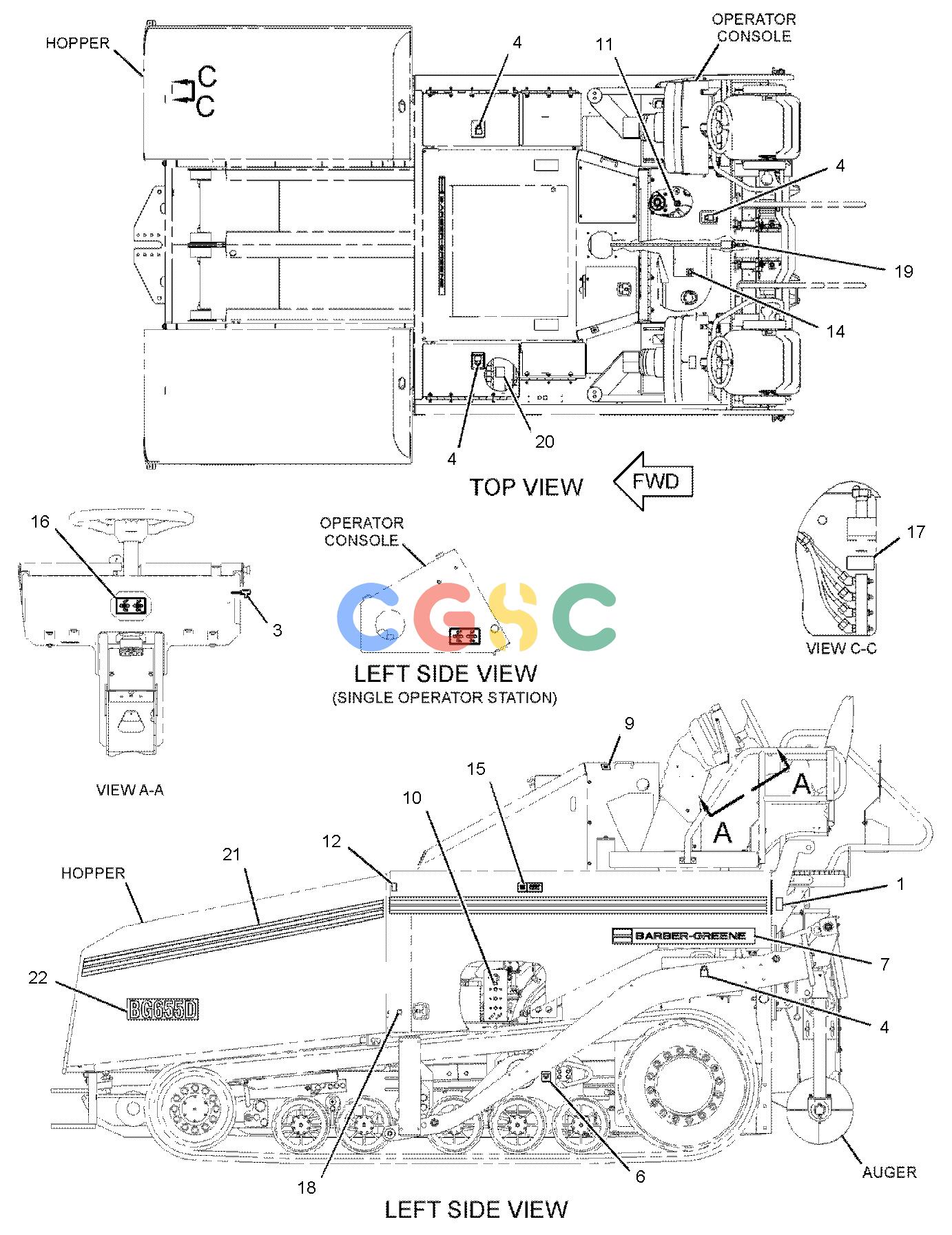

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1P-2807 | [2] | FILM-IDENTIFICATION(LIFT EYE LOCATION) | |
| 2. | 5P-7958 | [1] | SLEEVE-CABLE SPLICE | |
| 3. | 5P-8500 | [2] | KEY | |
| 4. | 246-2641 | [1] | PADLOCK GP | |
| | | | (EACH INCLUDES) |
| | 5P-8500 | [1] | KEY | |
| 5. | 7X-3229 | [2] | FILM-IDENTIFICATION(LIFT EYE, TIE-DOWN LOCATION) | |
| 6. | 7X-7644 | [4] | FILM-IDENTIFICATION(TIE-DOWN) | |
| 7. | 116-6175 | [3] | FILM-IDENTIFICATION(BARBER-GREENE) | |
| 8. | 123-4082 | [1] | FILM-INFORMATION(HEIGHT SCALE) | |
| 9. | 134-7258 | [1] | FILM-INFORMATION(EXTENDED LIFE COOLANT) | |
| 10. | 146-6747 | [1] | FILM-INFORMATION(24-VOLT) | |
| 11. | 158-7864 | [1] | FILM-IDENTIFICATION(HYDRAULIC OIL) | |
| 12. | 214-7915 | [1] | FILM-INSTRUCTION(ENGINE SHUTOFF) | |
| 13. | 239-6986 | [1] | PLATE-SERIAL NUMBER(MACHINE) | |
| 14. | 240-9665 | [1] | FILM-IDENTIFICATION(DIESEL FUEL) | |
| 15. | 253-0861 | [2] | FILM-INFORMATION(CAT POWER, ACERT TECHNOLOGY) | |
| 16. | | [1] | FILM-IDENTIFICATION(PROPEL OVERRIDE) |
| 17. | 279-6497 | [2] | FILM-INSTRUCTION(GREASE, READ OMM) | |
| 18. | | [2] | FILM-IDENTIFICATION(TOW POINT CYLINDER) |
| 19. | 219-3009 | [1] | HOSE AS(TRACK TENSION CYLINDER PURGE) | |
| 20. | | [1] | FILM-INSTRUCTION(ALTERNATOR BELT MOUNTING) |
| 21. | | [2] | FILM AS |
| | 116-6173E | | FILM-STRIPE(450-CM) | |
| 22. | | [2] | FILM-IDENTIFICATION(BG 655D) |
| | E | | ORDER BY THE CENTIMETER |
