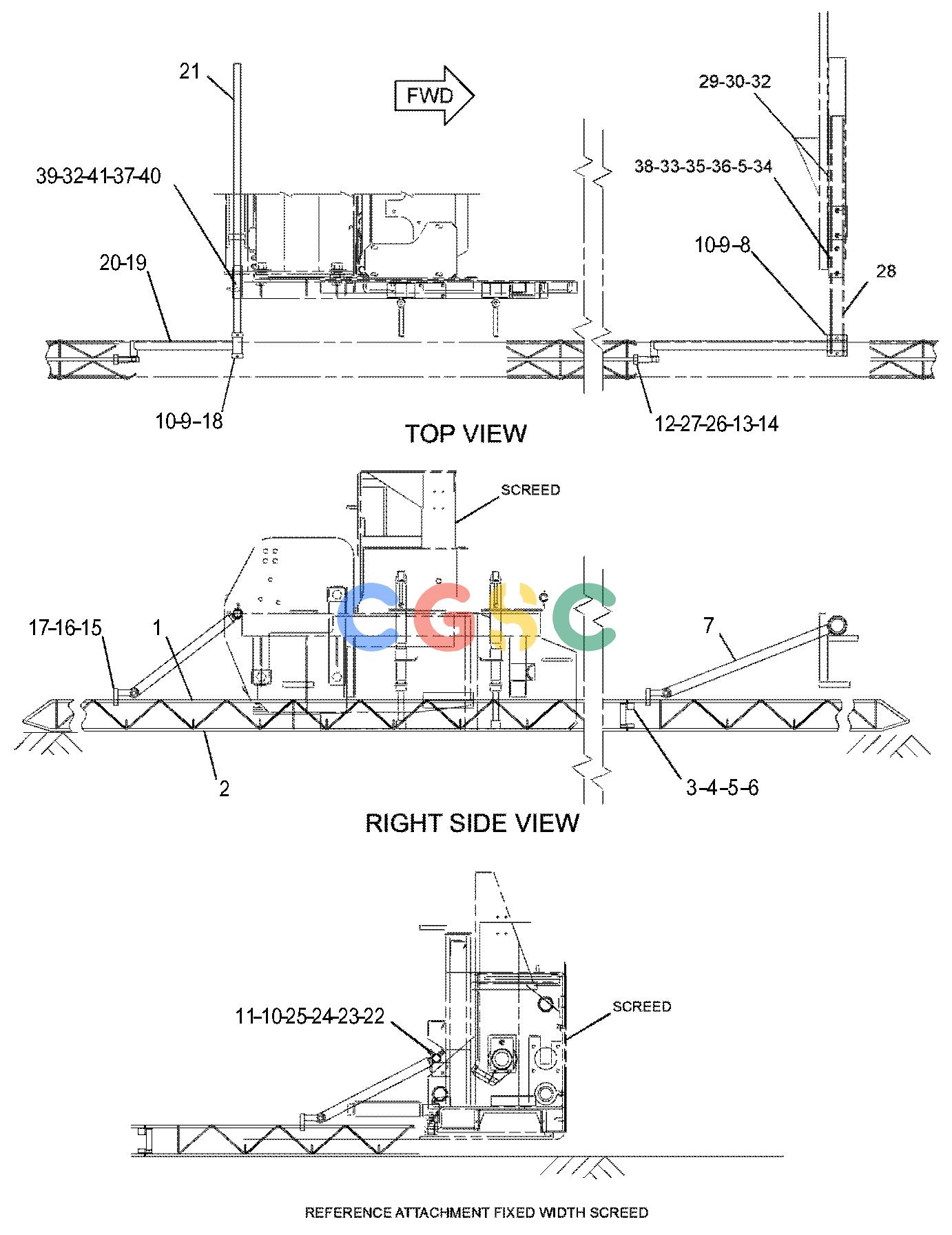

卡特零件查询（BG655D） 109-5627: LEVELER GP
广数供应链运营团队, 17 02月, 2025，浏览：
799 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 114-1072 | [1] | FRAME AS(GRADE REFERENCE) | |
| 2. | 114-1073 | [1] | FRAME AS(GRADE REFERENCE) | |
| 3. | 7X-0350 | [12] | BOLT(5/8-11X3.5-IN) | |
| 4. | 7X-0448 | [12] | NUT(5/8-11-THD) | |
| 5. | 8T-4122 | [16] | WASHER-HARD(17X32X3.5-MM THK) | |
| 6. | 114-1637 | [16] | WASHER(19X25.4X0.51-MM THK) | |
| 7. | 109-5651 | [1] | ARM AS(TOWING) | |
| 8. | 109-5649 | [2] | COLLAR | |
| 9. | 9B-7237 | [6] | BOLT(3/8-16X1.25-IN) | |
| 10. | 6V-8801 | [10] | NUT(3/8-16-THD) | |
| 11. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 12. | 109-5661 | [2] | ROD END | |
| 13. | 2H-3725 | [2] | BOLT(3/4-16X1.5-IN) | |
| 14. | 8T-4994 | [2] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 15. | 114-1263 | [2] | COLLAR | |
| 16. | 6V-8918 | [4] | BOLT(5/16-18X1.25-IN) | |
| 17. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 18. | 140-8793 | [2] | COLLAR | |
| 19. | 109-5634 | [1] | TUBE AS | |
| 20. | 109-7798 | [1] | ROD AS | |
| | 109-7807 | [1] | BAR | |
| 21. | 109-7805 | [1] | BAR | |
| 22. | 109-5658 | [2] | SUPPORT AS-GUIDE | |
| | | | (EACH INCLUDES) |
| | 1F-0748 | [2] | NUT-WELD(1/2-13-THD) | |
| 23. | 8T-8917 | [4] | BOLT(1/2-13X1.25-IN) | |
| 24. | 6V-8188 | [4] | NUT(1/2-13-THD) | |
| 25. | 4L-9337 | [4] | BOLT(3/8-16X1.5-IN) | |
| 26. | 9L-9132 | [2] | WASHER(10.2X25.5X2.5-MM THK) | |
| 27. | 4L-6454 | [2] | BOLT(3/8-16X1-IN) | |
| 28. | 106-4604 | [1] | TUBE | |
| 29. | 199-4198 | [1] | TUBE AS | |
| 30. | 8T-4244M | [6] | NUT(M12X1.75-THD) | |
| 31. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 32. | 8T-4183M | [6] | BOLT(M12X1.75X40-MM) | |
| 33. | 293-1022 | [2] | MOUNT AS | |
| 34. | 8T-4132M | [4] | NUT(M16X2-THD) | |
| 35. | 8T-4193M | [4] | BOLT(M16X2X50-MM) | |
| 36. | 7X-2554M | [4] | BOLT(M16X2X70-MM) | |
| 37. | 8T-5005M | [4] | BOLT(M10X1.5X70-MM) | |
| 38. | 432-2435 | [2] | MOUNT AS | |
| | | | (EACH INCLUDES) |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 39. | 329-3356M | [4] | NUT(M12X1.75-THD) | |
| 40. | 450-5685 | [2] | SUPPORT AS | |
| | | | (EACH INCLUDES) |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 41. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| | M | | METRIC PART |
