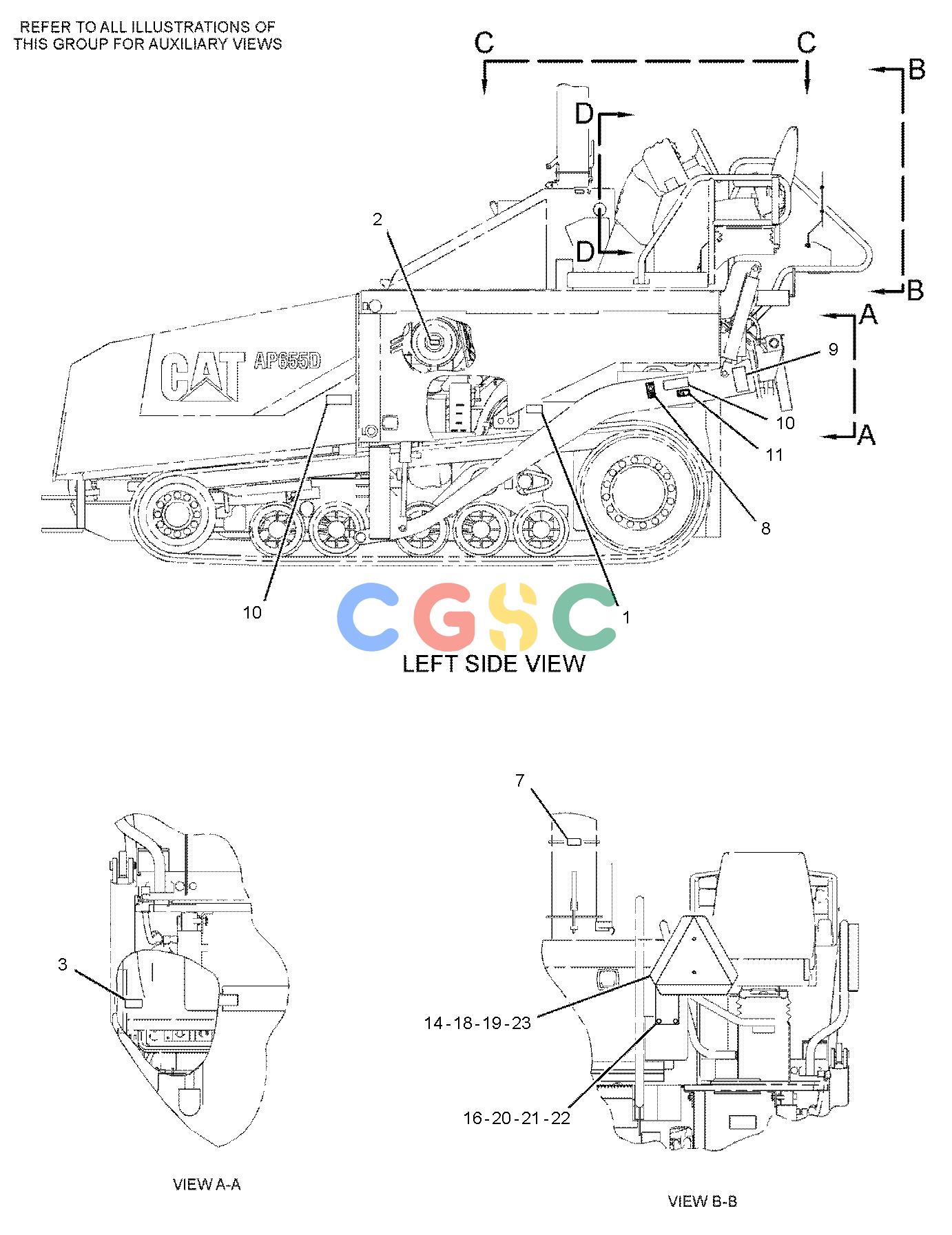

卡特零件查询（BG655D） 286-9968: FILM GP
广数供应链运营团队, 17 02月, 2025，浏览：
789 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 224-7830 | [2] | FILM-WARNING(HIGH PRESSURE, READ OMM, U.S.) | |
| 2. | 224-8945 | [1] | FILM-WARNING(DO NOT USE ETHER, U.S.) | |
| 3. | 224-9828 | [1] | FILM-WARNING(SHOCK HAZARD) | |
| 4. | 225-0313 | [1] | FILM-WARNING(JUMP START, READ OMM, U.S.) | |
| 5. | 225-3305 | [1] | FILM-WARNING(UNIVERSAL, READ OMM) | |
| 6. | 225-4256 | [1] | FILM-WARNING(HOT FLUID UNDER PRESSURE, U.S.) | |
| 7. | 228-7315 | [2] | FILM-WARNING(HOT SURFACE, HANDS CLEAR) | |
| 8. | 242-5055 | [2] | FILM-WARNING(NO STEP) | |
| 9. | 264-2263 | [2] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 10. | 264-7868 | [4] | FILM-WARNING(CRUSH HAZARD, READ OMM) | |
| 11. | 269-0193 | [2] | FILM-WARNING(CRUSH HAZARD, STAY BACK) | |
| 12. | 283-8409 | [1] | FILM-IDENTIFICATION(CIRCUIT PANEL) | |
| 13. | 286-1926 | [1] | FILM-WARNING(FASTEN SEAT BELT) | |
| 14. | 8T-6986 | [1] | PLATE AS-WARNING(SLOW MOVING VEHICLE) | |
| 15. | 230-1340B | [1] | FILM-WARNING(PRODUCT LINK RADIO, U.S.) | |
| 16. | 289-2889 | [1] | PLATE | |
| 17. | 307-0047B | [1] | FILM-INFORMATION(PRODUCT LINK, READ OMM) | |
| 18. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 19. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 20. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 21. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 22. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 23. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
