卡特零件查询（BG655D） 7R-4741: LINES GP-SPRAY DOWN
广数供应链运营团队, 17 02月, 2025，浏览：
817 次

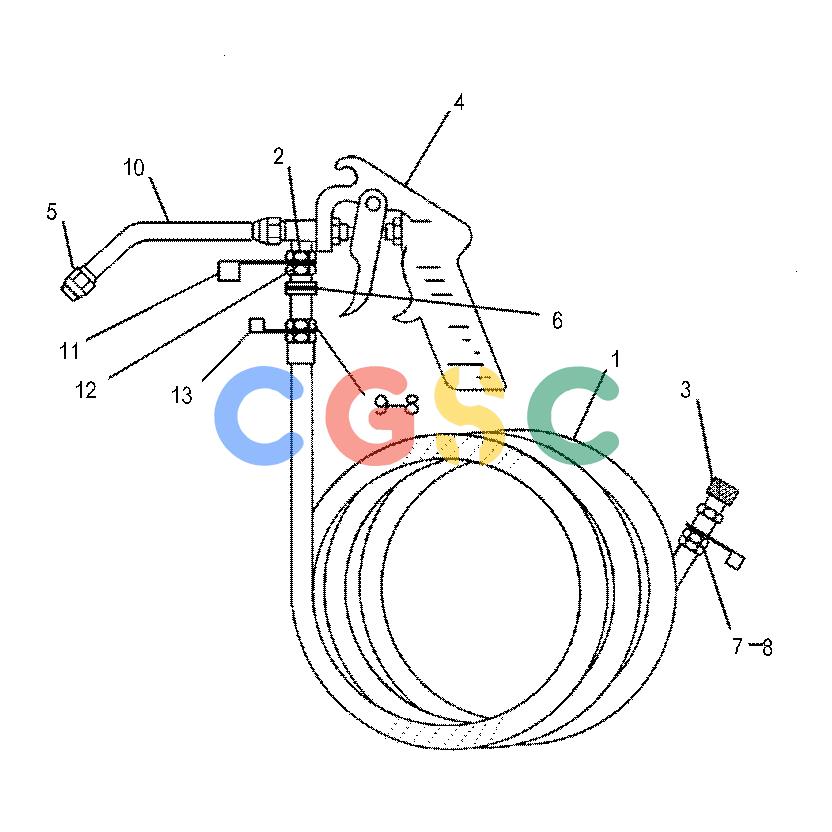

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-5879CI | [1] | HOSE AS | |
| 2. | 5P-8998C | [1] | FITTING | |
| 3. | 5R-6307 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| | 1H-8171 | [1] | SEAL-O-RING | |
| | 5R-6859 | [1] | RETAINER | |
| | 5R-6301 | [1] | PLUG-DUST | |
| 4. | 6R-4317C | [1] | GUN-SPRAY | |
| 5. | 6R-4315C | [1] | NOZZLE(SPRAY DOWN) | |
| 6. | 5R-5560C | [1] | COUPLING AS | |
| | 5R-7817 | [1] | SEAL | |
| | 5R-7818 | [1] | RING-BACKUP | |
| 7. | 087-0677C | [1] | ADAPTER | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| 8. | 4J-5477C | [2] | SEAL-O-RING | |
| 9. | 8C-6866C | [1] | CONNECTOR | |
| 10. | 1G-5370C | [1] | EXTENSION-CURVE | |
| 11. | 8C-7992C | [1] | COVER-DUST | |
| 12. | 5R-5561C | [1] | FITTING AS | |
| 13. | 8C-7993C | [1] | COVER-DUST | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
