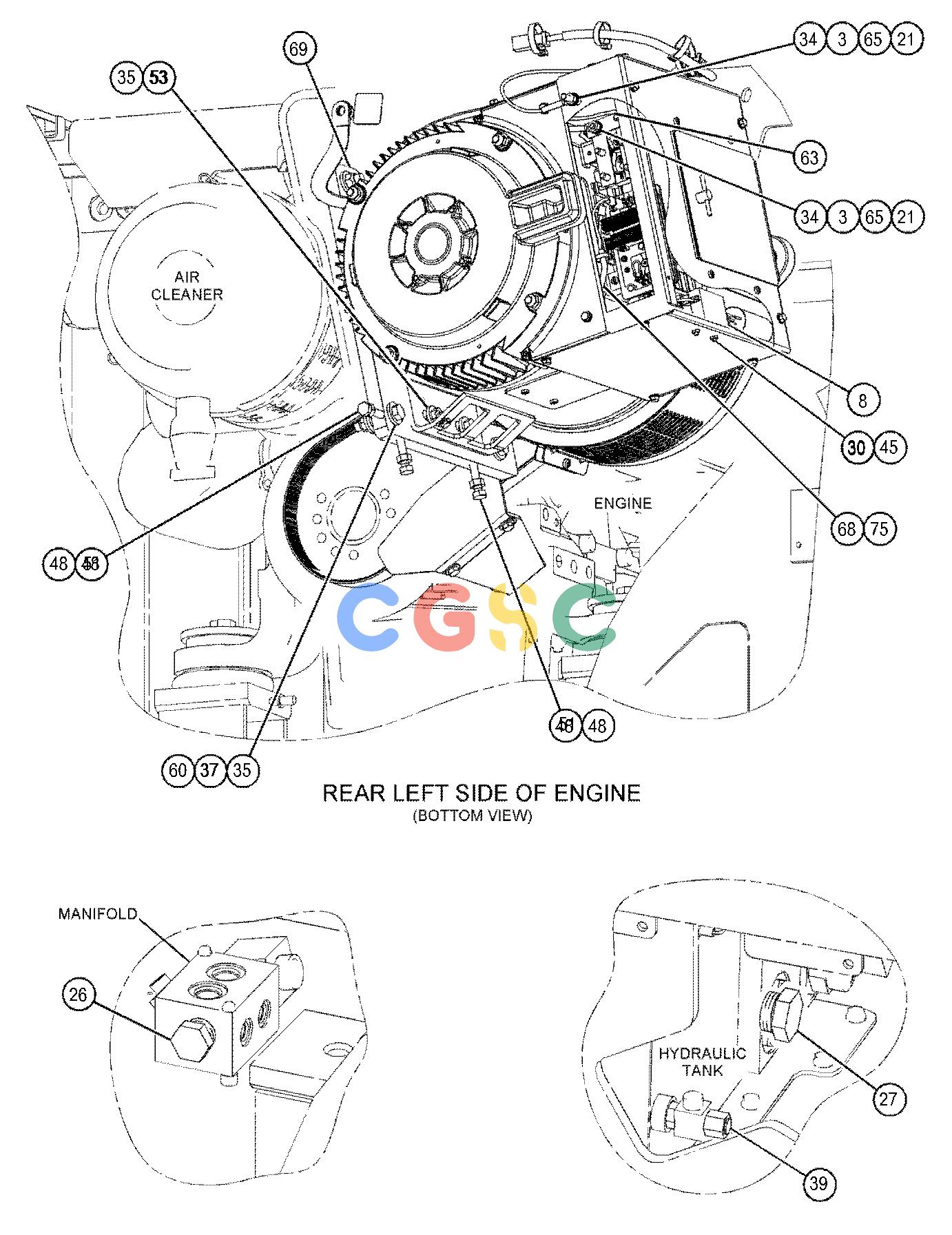

| 1. | 4D-1326 | [2] | LOCKWASHER(EXTERNAL TOOTH) | |
| 2. | 8X-6645C | [1] | STRAP AS-GROUND | |
| 3. | 7H-3937C | [2] | LOCKWASHER(EXTERNAL TOOTH) | |
| 4. | 9X-0352 | [1] | RECEPTACLE AS-CONNECTOR(2-PIN) | |
| 5. | 197-9642 | [1] | PULLEY AS-IDLER(8-GROOVE) | |
| 6. | 220-1209 | [1] | BELT TENSIONER | |
| 7. | 228-4798 | [1] | FILM-IDENTIFICATION(GROUND) | |
| 8. | 255-5011 | [1] | RELAY AS(24-VOLT)(SCREED HEAT) | |
| 9. | 270-3558 | [1] | BUSHING | |
| 11. | 276-8166 | [1] | SPACER(12X40X7-MM THK) | |
| 12. | 417-5522C | [1] | PLATE | |
| 13. | 284-2886 | [1] | SHEAVE | |
| 14. | 417-5523C | [1] | PLATE | |
| 15. | 286-9960 | [1] | BRACKET AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 16. | 363-7389 | [1] | BELT-SERPENTINE(ALTERNATOR AIR) | |
| 17. | 324-3727 | [1] | BRACKET AS | |
| | 6V-9632M | [1] | NUT-WELD(M6X1-THD) | |
| 18. | 421-4076C | [1] | FILM-IDENTIFICATION(CIRCUIT BREAKER) | |
| 21. | 420-0612C | [2] | WIRE AS-GROUND | |
| 23. | 398-8389 | [1] | STUD | |
| 24. | 099-2374M | [2] | BOLT-SOCKET HEAD(M5X0.8X12-MM) | |
| 25. | 148-8411 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 26. | 164-4180 | [1] | PLUG AS(TRANSMISSION CASE) | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 9S-4181 | [1] | PLUG(1-5/16-12-THD) | |
| 27. | 164-5616 | [1] | PLUG AS(HYDRAULIC TANK) | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 9S-6130 | [1] | PLUG | |
| 28. | 3B-4504 | [3] | LOCKWASHER | |
| 29. | 3J-4818 | [1] | LOCKWASHER(EXTERNAL TOOTH) | |
| 30. | 4B-4863 | [2] | WASHER(4.7X11X1.2-MM THK) | |
| 31. | 4M-5282 | [3] | BOLT(1/4-20X1.5-IN) | |
| 32. | 5C-2874M | [2] | NUT(M5X0.8-THD) | |
| 33. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 34. | 5C-7261CM | [2] | NUT(M8X1.25-THD) | |
| 35. | 5P-1076 | [12] | WASHER-HARD(13.5X30X4-MM THK) | |
| 36. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 37. | 6V-7687M | [4] | LOCKNUT(M12X1.75-THD) | |
| 38. | 6V-8801 | [2] | NUT(3/8-16-THD) | |
| 39. | 6V-9830 | [1] | CAP | |
| 43. | 7X-2537M | [5] | BOLT(M8X1.25X35-MM) | |
| 44. | 7X-2552M | [2] | BOLT(M16X2X30-MM) | |
| 45. | 8T-3998M | [2] | BOLT(M4X0.7X12-MM) | |
| 46. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 47. | 8T-4122 | [2] | WASHER-HARD(17X32X3.5-MM THK) | |
| 48. | 8T-4133CM | [3] | NUT(M10X1.5-THD) | |
| 49. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 50. | 8T-4172M | [1] | BOLT(M10X1.5X80-MM) | |
| 51. | 8T-4186M | [3] | BOLT(M10X1.5X40-MM) | |
| 52. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 53. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 54. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 55. | 8T-4205 | [5] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 56. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 57. | 8T-4224 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| 58. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 59. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 60. | 8T-4910M | [4] | BOLT(M12X1.75X60-MM) | |
| 61. | 8T-4971M | [1] | BOLT(M6X1X30-MM) | |
| 63. | 128-2596D | | SEAL(0.5-M) | |
| 64. | 1H-3338 | [1] | LOCKWASHER(EXTERNAL TOOTH) | |
| 65. | 8F-7242C | [2] | WASHER(8.7X15.9X1.6-MM THK) | |
| 66. | 445-7531 | [1] | WIRE AS-GROUND | |
| 67. | 459-1872C | [1] | PLATE | |
| 68. | 418-2328C | [1] | HARNESS AS-SOLENOID | |
| | 5P-4571 | [1] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 5P-5694 | [1] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 194-5226 | [2] | WIRE AS(16-GA) | |
| | | | -OR- |
| | 194-5227 | [2] | WIRE AS(14-GA) | |
| | 329-3734B | | TAPE-ELECTRICAL | |
| 69. | 417-5521C | [1] | PLATE | |
| 70. | 399-5150C | [1] | GENERATOR GP-HYDRAULIC | |
| 71. | 384-3506C | [1] | HARNESS AS-LIGHTING(SIDE FLOOD, RH, LH) | |
| | 274-3774 | [1] | CAP-CONNECTOR | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (KIT INCLUDES RECEPTACLE AS & INTERFACE SEAL) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8730 | [2] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (KIT INCLUDES PLUG AS & WEDGE) |
| 72. | 344-5674CM | [5] | NUT(M8X1.25-THD) | |
| 73. | 290-5562C | [1] | MOUNT(DUAL SWIVEL) | |
| 74. | 7K-1181C | [5] | STRAP-CABLE | |
| 75. | 3S-2093C | [4] | STRAP-CABLE | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
