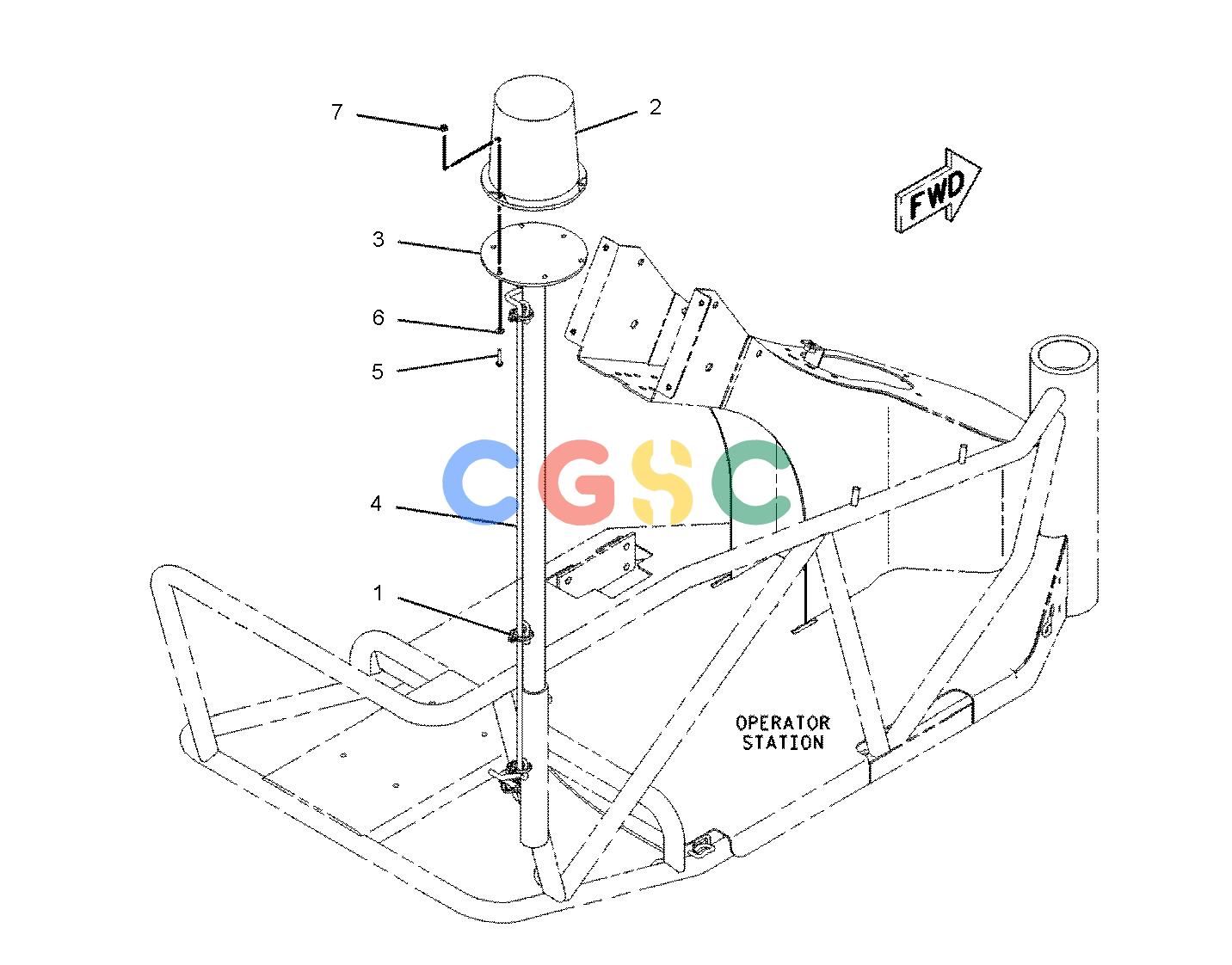

卡特零件查询（BG655D） 198-8284: LIGHTING GP-WARNING BEACON
广数供应链运营团队, 17 02月, 2025，浏览：
651 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [8] | STRAP-CABLE | |
| 2. | 110-7563Y | [1] | LAMP GP-WARNING BEACON(24-VOLT)(STROBE LIGHT) | |
| 3. | 116-9320 | [1] | TUBE AS | |
| 4. | 213-5009 | [1] | HARNESS AS-LIGHTING(WARNING BEACON) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8730 | [2] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| 5. | 033-4814 | [3] | SCREW(10-32X1-IN) | |
| 6. | 4B-4274 | [3] | WASHER(5.5X13X1.2-MM THK) | |
| 7. | 4L-1250 | [3] | LOCKNUT(10-32-THD) | |
| | Y | | SEPARATE ILLUSTRATION |
