卡特零件查询（BG655D） 330-6089: DISPLAY GP-MONITOR
广数供应链运营团队, 17 02月, 2025，浏览：
395 次

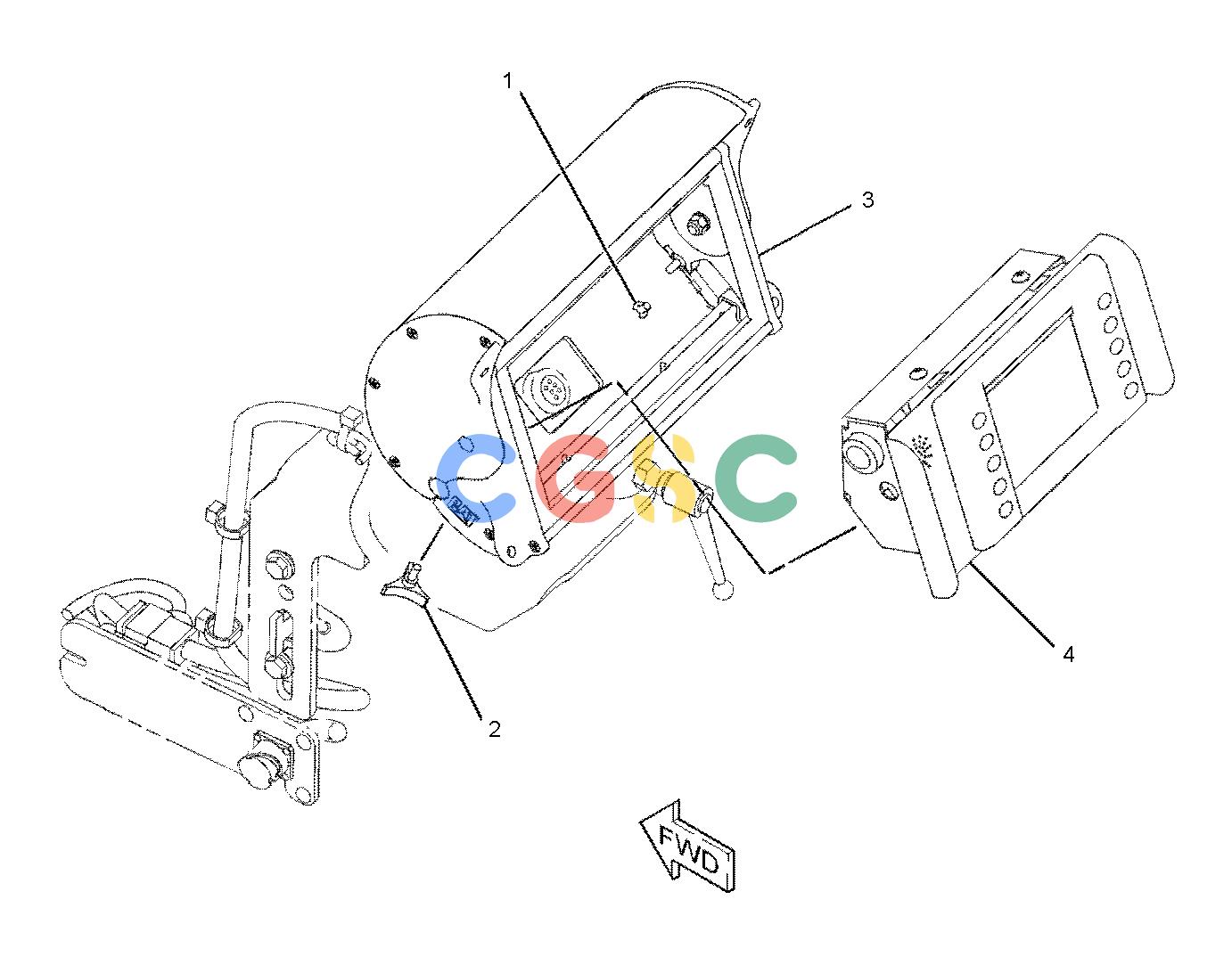

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 198-6568 | [1] | HORN(6 TO 28-VDC) | |
| 2. | 225-3322M | [4] | SCREW-TRUSS HEAD(M6X1X10-MM) | |
| 3. | 282-8241 | [1] | CONTROL GP-UNPROGRAMMED(MONITOR) | |
| | 239-5418 | [10] | COVER-SWITCH | |
| 4. | 329-9324 | [1] | PANEL | |
| 5. | 330-6087 | [1] | PLATE AS | |
| 6. | 330-8600 | [1] | HARNESS AS-MONITOR | |
| | 332-6696 | [1] | RECEPTACLE AS(13-PIN) | |
| | 147-1444 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 159-9322 | [1] | SEAL-O-RING | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [55] | PLUG-SEAL | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| | 180-9340 | [17] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| 7. | 332-6697 | [1] | CAP-CONNECTOR | |
| 8. | 3C-6969M | [5] | NUT(M3X0.5-THD) | |
| 9. | 6V-9671M | [5] | SCREW-MACHINE(M3X0.5X12-MM) | |
| 10. | 9B-1117 | [5] | LOCKWASHER | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
