卡特零件查询（BG655D） 289-5220: GENERATOR GP
广数供应链运营团队, 17 02月, 2025，浏览：
927 次

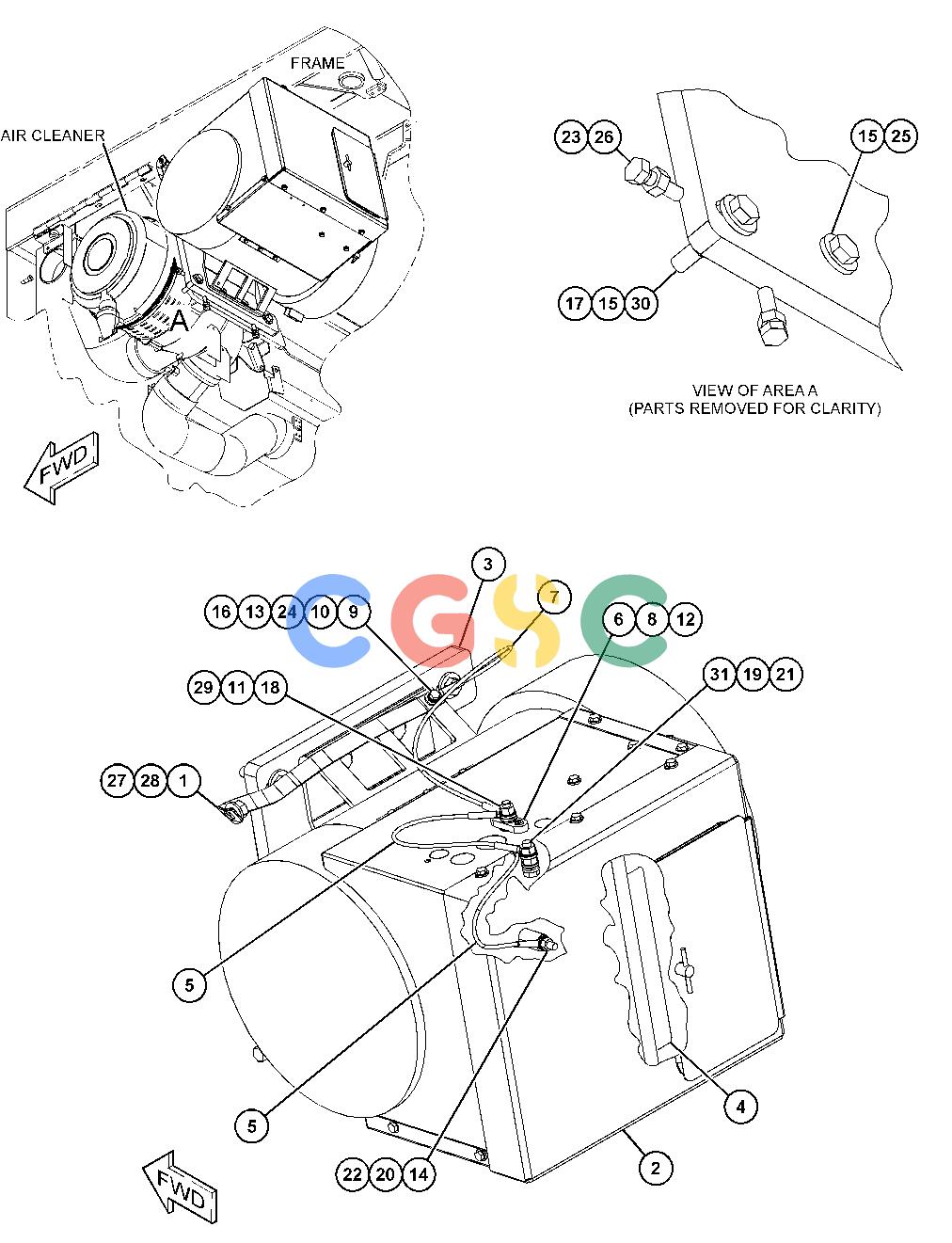

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6Y-6584 | [1] | STRAP AS-GROUND | |
| 2. | 231-1332Y | [1] | GENERATOR GP(23-KW) | |
| 3. | 276-8163C | [1] | PLATE | |
| 4. | 322-7952 | [1] | FILM-IDENTIFICATION(CIRCUIT BREAKER) | |
| 5. | 367-6889 | [2] | WIRE AS-GROUND | |
| 6. | 398-8389 | [1] | STUD | |
| 7. | 445-7531 | [1] | WIRE AS-GROUND | |
| 8. | 099-2374M | [2] | BOLT-SOCKET HEAD(M5X0.8X12-MM) | |
| 9. | 1A-8912 | [2] | WASHER(6.7X12.7X1.6-MM THK) | |
| 10. | 1H-3338 | [1] | LOCKWASHER(EXTERNAL TOOTH) | |
| 11. | 4D-1326 | [2] | LOCKWASHER(EXTERNAL TOOTH) | |
| 12. | 5C-2874M | [2] | NUT(M5X0.8-THD) | |
| 13. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| 14. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 15. | 5P-1076 | [12] | WASHER-HARD(13.5X30X4-MM THK) | |
| 16. | 5P-4115 | [1] | WASHER-HARD(7.2X19X2-MM THK) | |
| 17. | 6V-7687M | [4] | LOCKNUT(M12X1.75-THD) | |
| 18. | 6V-8801 | [2] | NUT(3/8-16-THD) | |
| 19. | 7F-6998 | [1] | LOCKWASHER | |
| 20. | 7H-3937 | [1] | LOCKWASHER(EXTERNAL TOOTH) | |
| 21. | 7P-1695 | [3] | WASHER(10.5X19X3-MM THK) | |
| 22. | 8F-7242 | [1] | WASHER(8.7X15.9X1.6-MM THK) | |
| 23. | 8T-4133M | [5] | NUT(M10X1.5-THD) | |
| 24. | 8T-4138M | [1] | BOLT(M6X1X20-MM) | |
| 25. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 26. | 8T-4196M | [3] | BOLT(M10X1.5X35-MM) | |
| 27. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 28. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 29. | 8T-4896 | [3] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 30. | 8T-4910M | [4] | BOLT(M12X1.75X60-MM) | |
| 31. | 8T-7353M | [1] | BOLT-HIGH TEMPERATURE(M10X1.5X35-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
