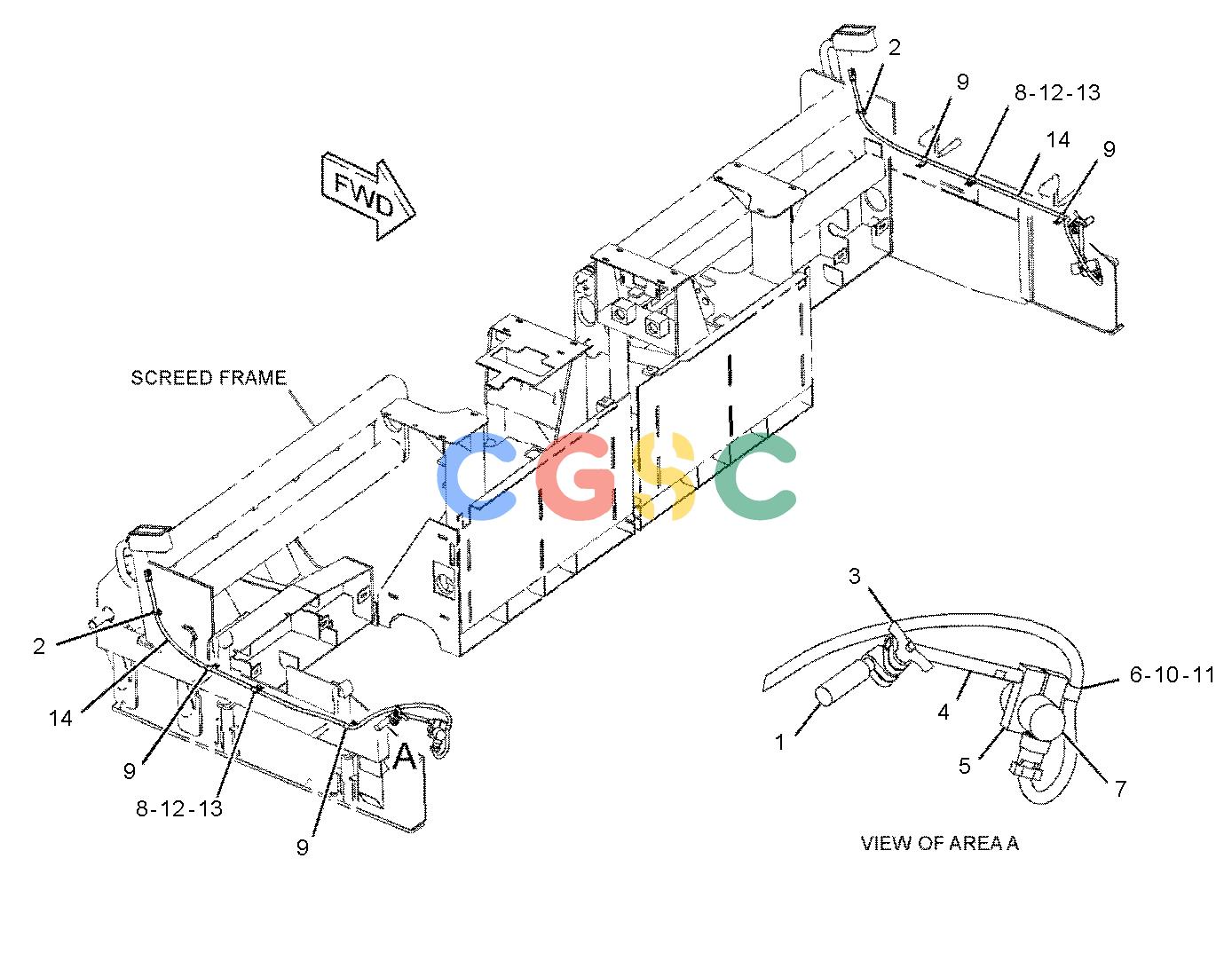

卡特零件查询（BG655D） 294-0112: SENSOR GP-POSITION
广数供应链运营团队, 17 02月, 2025，浏览：
164 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 164-0841 | [2] | SUPPORT-SENSOR | |
| 2. | 7K-1181 | [2] | STRAP-CABLE | |
| 3. | 6R-4365 | [2] | CLAMP AS | |
| 4. | 1G-6811 | [2] | SHAFT | |
| 5. | 110-2124 | [2] | CLAMP | |
| 6. | 8M-2770 | [2] | CLIP(LOOP) | |
| 7. | 369-4794 | [2] | SENSOR(SONIC)(AUGER) | |
| 8. | 5K-3294 | [2] | CLIP | |
| 9. | 4D-9517 | [4] | CLIP | |
| 10. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 11. | 8T-9377 | [2] | BOLT(3/8-16X2.25-IN) | |
| 12. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 13. | 7X-2548M | [2] | BOLT(M12X1.75X16-MM) | |
| 14. | 279-2460 | [2] | CABLE AS-COILED | |
| | | | (EACH INCLUDES) |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 241-8153 | [1] | PLUG AS | |
| | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | M | | METRIC PART |
