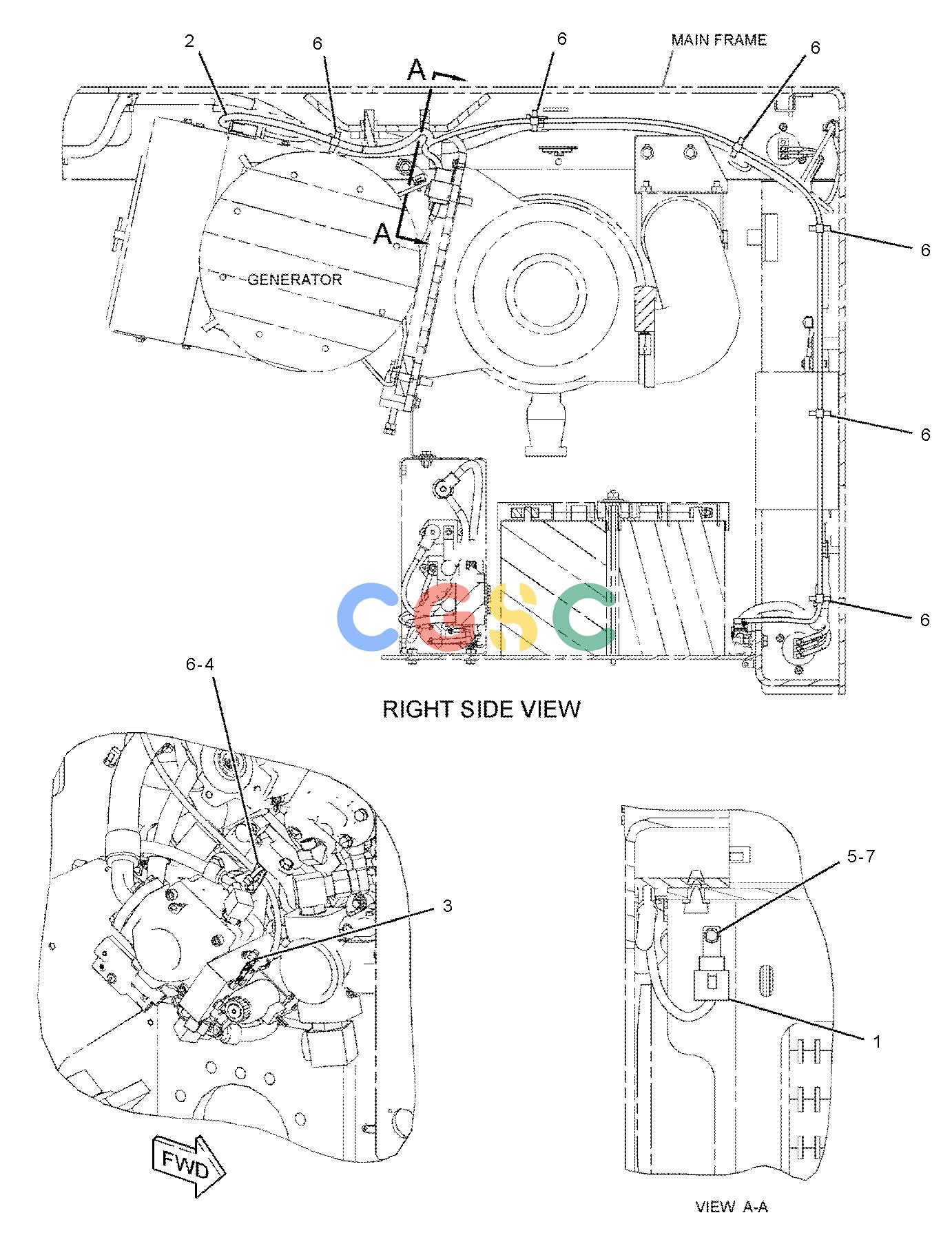

卡特零件查询（BG655D） 297-1002: WIRING GP-HYDRAULIC GENERATOR
广数供应链运营团队, 17 02月, 2025，浏览：
819 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-5239 | [1] | RELAY AS(24-VOLT) | |
| 2. | 297-1004 | [1] | HARNESS AS-SOLENOID | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 3E-5519 | [1] | PLUG AS-CONNECTOR(5-PIN) | |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 9X-1056 | [4] | TERMINAL-RECEPTACLE(14-GA TO 16-GA) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| | 180-9339 | [3] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| 3. | 130-5300 | [1] | CLIP | |
| 4. | 4P-7428 | [1] | CLIP(LADDER) | |
| 5. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 6. | 7K-1181 | [7] | STRAP-CABLE | |
| 7. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
