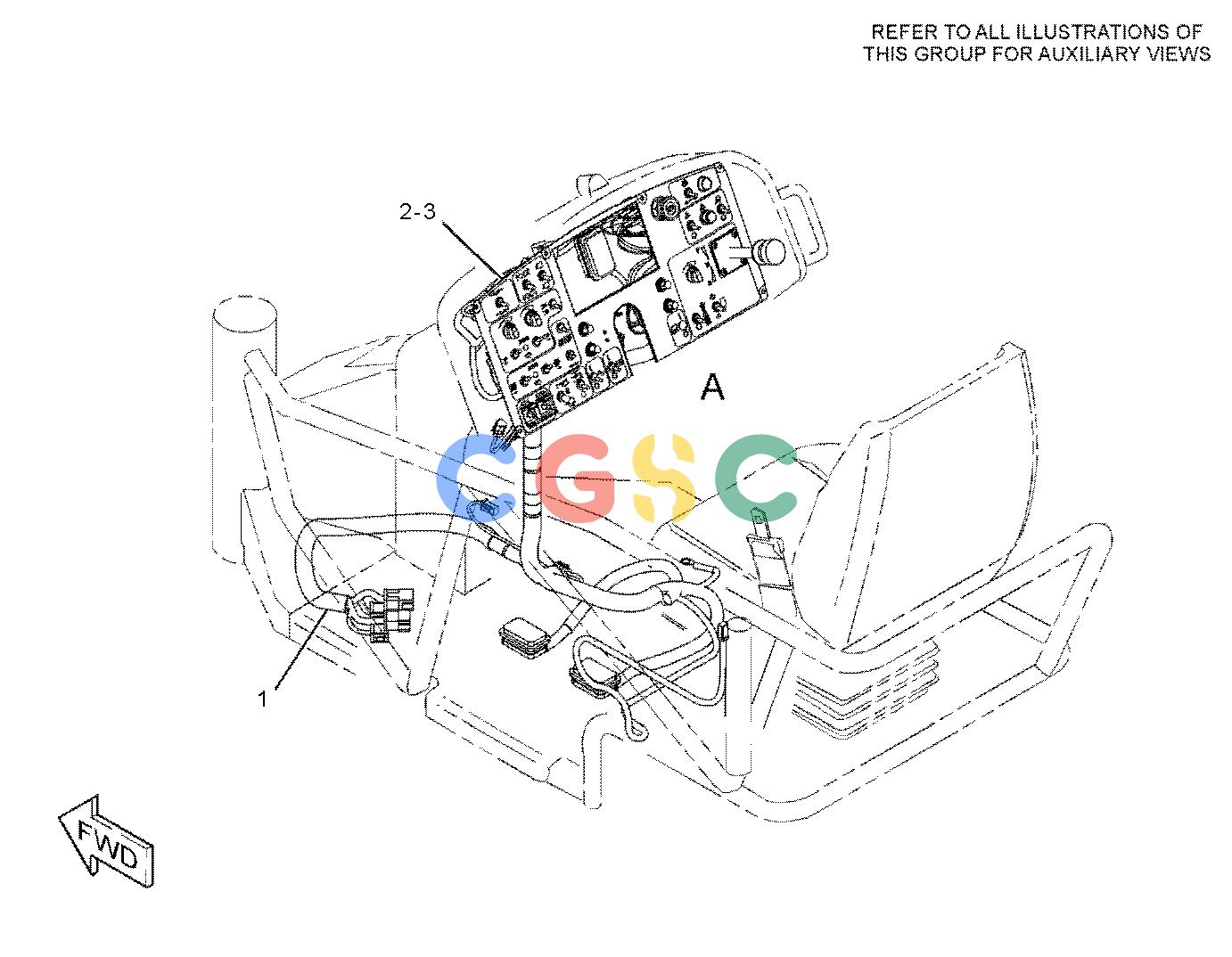

| 1. | 326-6142 | [1] | HARNESS AS-PANEL | |
| | 155-2260 | [5] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [2] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | 155-2274 | [2] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8802 | [2] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | 190-7614 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 180-9339 | [23] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| | 147-1445 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 147-1446 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | | | (EACH PLUG AS INCLUDES) |
| | 159-9322 | [1] | SEAL-O-RING | |
| | 8T-8737 | [82] | PLUG-SEAL | |
| | 160-2244G | | SLEEVE-ABRASION(19-IN) | |
| | 180-9340 | [101] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 5P-1475 | [45] | TERMINAL-FORK(14-GA TO 16-GA, NO. 8 SCREW) | |
| | 5P-5618 | [2] | TERMINAL-BLADE(10-GA TO 12-GA) | |
| | 5P-4571 | [13] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 7N-7978 | [7] | TERMINAL-FORK(10-GA TO 12-GA, NO. 6 SCREW) | |
| | 5P-2321 | [3] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 131-1492 | [2] | TERMINAL AS-RING(6-GA TO 8-GA) | |
| | 5P-3059 | [7] | TERMINAL-FORK(18-GA TO 22-GA, NO. 6 SCREW) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(30-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| 2. | 275-8234 | [1] | PANEL AS | |
| 3. | 275-3400 | [1] | FILM-IDENTIFICATION(PANEL) | |
| 4. | 246-8912 | [1] | SWITCH GP-TOGGLE(APRON FOLD) | |
| 4A. | 246-8912 | [1] | SWITCH GP-TOGGLE(HOPPER) | |
| 4B. | 246-8912 | [1] | SWITCH GP-TOGGLE(TRUCK HITCH) | |
| 4C. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER WIDTH, LH) | |
| 4D. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER WIDTH, RH) | |
| | | | (EACH SWITCH AS INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 5. | 213-8147 | [1] | POTENTIOMETER AS(CONVEYOR SPEED, LH) | |
| 5A. | 213-8147 | [1] | POTENTIOMETER AS(CONVEYOR SPEED, RH) | |
| 5B. | 213-8147 | [1] | POTENTIOMETER AS(PROPEL SPEED) | |
| | | | (EACH POTENTIOMETER AS INCLUDES) |
| | 5P-5677D | | WIRE(18-GA, BLACK)(0.9-M) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(25-CM) | |
| 6. | 7C-4550 | [3] | SEAL(ROTATING SHAFT) | |
| 7. | 316-5717 | [3] | KNOB AS | |
| 9. | 9D-3721 | [1] | SWITCH-TOGGLE(SINGLE POLE)(CONVEYOR) | |
| 10. | 9G-0011 | [1] | SWITCH AS-TOGGLE(AUGER RAISE, LOWER) | |
| 10A. | 9G-0011 | [1] | SWITCH AS-TOGGLE(AUGER REVERSE) | |
| 10B. | 9G-0011 | [1] | SWITCH AS-TOGGLE(THROTTLE) | |
| | | | (EACH SWITCH AS INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 11. | 8C-9812 | [1] | SWITCH AS-TOGGLE(CONVEYOR, LH) | |
| 11A. | 8C-9812 | [1] | SWITCH AS-TOGGLE(CONVEYOR, RH) | |
| 11B. | 8C-9812 | [1] | SWITCH AS-TOGGLE(AUGER, LH) | |
| 11C. | 8C-9812 | [1] | SWITCH AS-TOGGLE(AUGER, RH) | |
| | | | (EACH SWITCH AS INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 12. | 109-7187 | [1] | SWITCH AS-TOGGLE(SCREED HOIST) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 13. | 4D-1836 | [1] | SWITCH-TOGGLE(VIBRATORY) | |
| 14. | 7G-9730 | [4] | LAMP AS(120-VOLT, 3-WATT) | |
| | | | (EACH INCLUDES) |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 15. | 7N-5876 | [6] | LAMP(24-VOLT, 0.2-AMPERE) | |
| 16. | 1V-6652Y | [1] | SWITCH AS-TOGGLE(TRANSMISSION) | |
| 18. | 132-3090Y | [1] | LEVER GP-PROPEL | |
| 19. | 8N-0694Y | [1] | SWITCH AS-TOGGLE(SINGLE POLE)(ENGINE SHUTDOWN) | |
| 20. | 9D-3127 | [2] | BASE AS-INDICATOR LIGHT | |
| | | | (EACH INCLUDES) |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 21. | 9D-2868 | [1] | LENS-RED | |
| 22. | 116-5275 | [1] | SWITCH GP-PUSH BUTTON(OPERATOR)(PARKING BRAKE) | |
| 23. | 116-6565 | [1] | BLOCK AS(LIGHT) | |
| 24. | 116-5277 | [2] | BLOCK(CONTACT) | |
| 25. | 116-5270 | [1] | LAMP(24-VOLT)(PARKING BRAKE) | |
| 26. | 116-5274 | [1] | KNOB(PARKING BRAKE) | |
| 27. | 291-1590 | [1] | SPEEDOMETER AS | |
| | 4B-2043 | [6] | NUT(8-32-THD) | |
| | 9B-7233 | [6] | LOCKWASHER | |
| | 115-1748 | [1] | LAMP(24-VOLT, 3-WATT) | |
| 28. | 7K-1181 | [5] | STRAP-CABLE | |
| 29. | 116-0118 | [2] | CLIP | |
| 30. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 31. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 32. | 9D-9161 | [1] | LENS-GREEN | |
| 33. | 3V-4694 | [1] | PLUG-BUTTON | |
| 34. | 265-9984 | [2] | BRACKET | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
