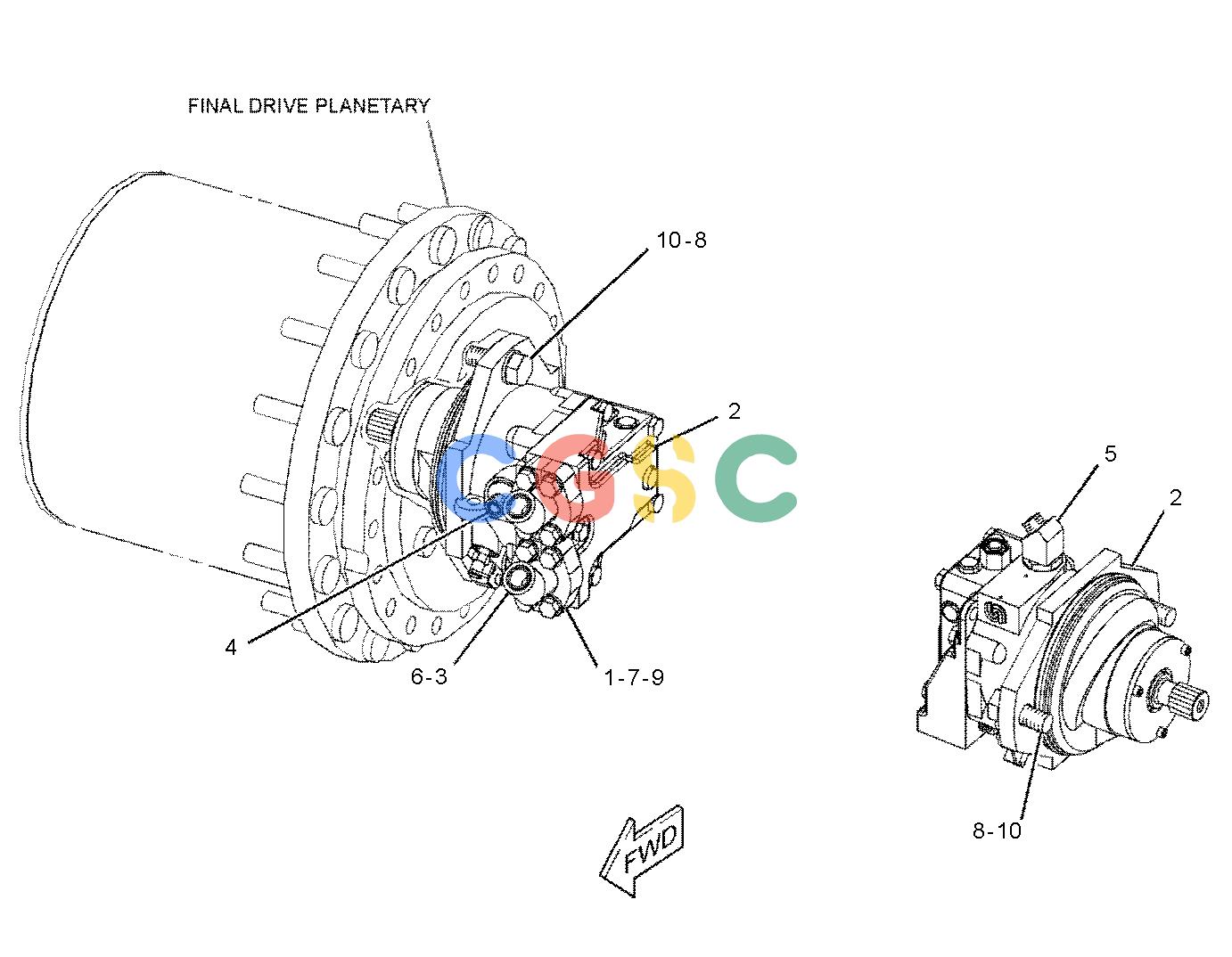

卡特零件查询（BG655D） 270-7212: MOTOR & MTG GP-PROPEL
广数供应链运营团队, 17 02月, 2025，浏览：
430 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 124-4288 | [4] | FLANGE-SPLIT | |
| 2. | 285-2212Y | [2] | MOTOR GP-PISTON(PROPEL) | |
| 3. | 250-1456 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 138-7796 | [1] | ELBOW | |
| 4. | 148-8328 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8633 | [1] | CONNECTOR | |
| 5. | 155-6258 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 127-1647 | [1] | ELBOW | |
| 6. | 4J-0520 | [2] | SEAL-O-RING | |
| 7. | 5P-7972 | [8] | BOLT-12 POINT HEAD(7/16-14X1.75-IN) | |
| 8. | 8T-4123 | [4] | WASHER(3.62X5.75X0.375-MM THK) | |
| 9. | 8T-5360 | [8] | WASHER(12X22.5X2.5-MM THK) | |
| 10. | 8T-6430M | [4] | BOLT(M20X2.5X50-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
