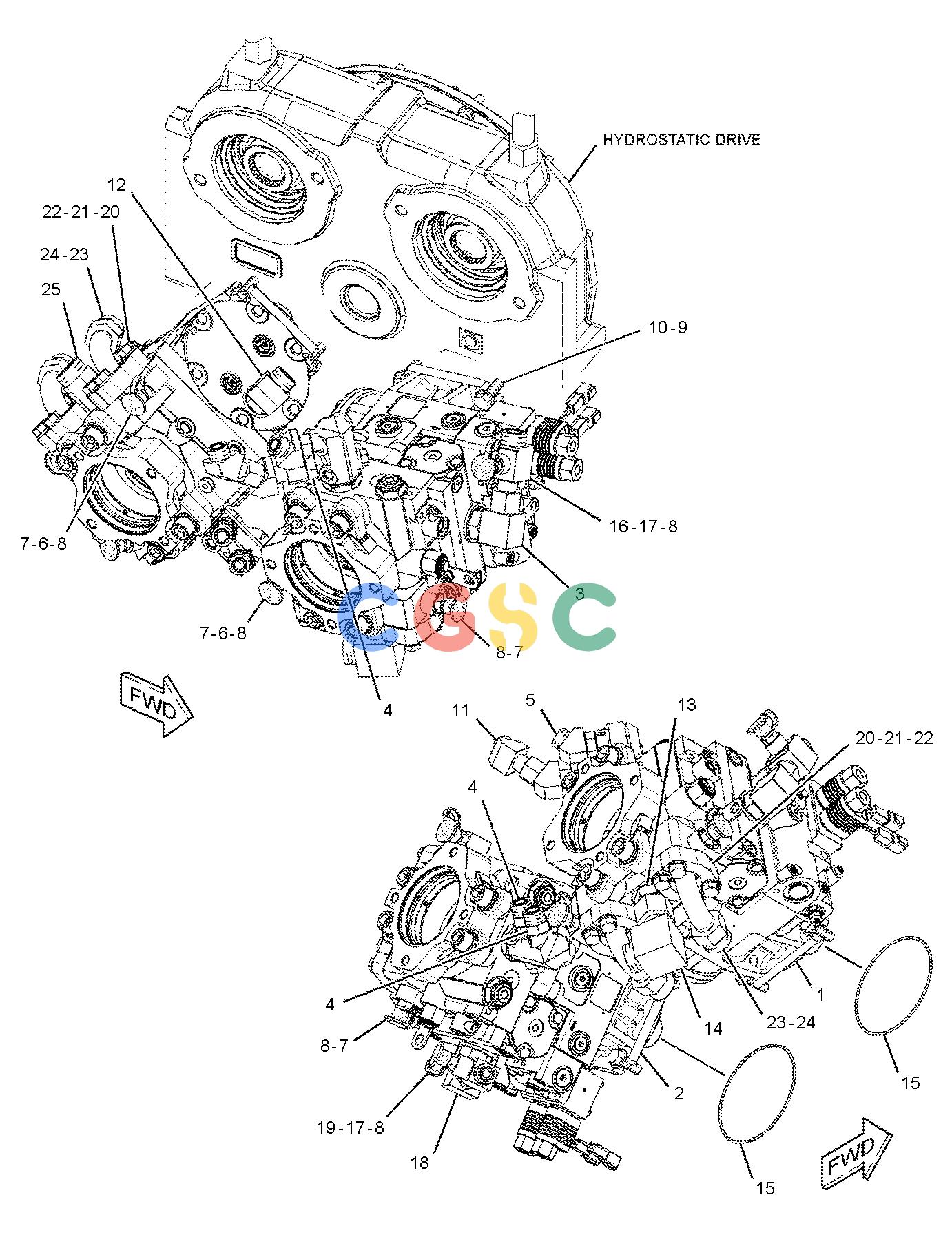

卡特零件查询（BG655D） 270-3534: PUMP GP-DUAL PROPEL
广数供应链运营团队, 17 02月, 2025，浏览：
580 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 285-4088Y | [1] | PUMP GP-PISTON(PROPEL, LH) | |
| 2. | 285-4088Y | [1] | PUMP GP-PISTON(PROPEL, RH) | |
| 3. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 4. | 148-8315 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8642 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 5. | 155-3504 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-9003 | [1] | ELBOW | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 6. | 150-3065 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-0484 | [1] | ELBOW | |
| 7. | 187-3547 | [4] | COUPLER AS-QUICK DISCONNECT | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 8. | 6V-0852 | [6] | CAP-DUST | |
| 9. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 10. | 8T-4956M | [8] | BOLT(M12X1.75X35-MM) | |
| 11. | 153-6256 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 8C-7563 | [1] | ELBOW | |
| 12. | 153-6237 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9004 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 13. | 148-8335 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 14. | 148-8352 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9854 | [1] | ELBOW(SWIVEL) | |
| 15. | 7J-6285 | [2] | SEAL-O-RING | |
| 16. | 148-8430 | [1] | TEE AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7X-0873 | [1] | TEE | |
| 17. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 18. | 148-8382 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 8T-0404 | [1] | ELBOW | |
| 19. | 148-8447 | [1] | TEE AS-SWIVEL | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 7X-0872 | [1] | TEE-SWIVEL | |
| 20. | 124-4288C | [8] | FLANGE-SPLIT | |
| 21. | 8T-5360C | [16] | WASHER(12X22.5X2.5-MM THK) | |
| 22. | 8C-6877C | [16] | BOLT(7/16-14X1.75-IN) | |
| 23. | 210-2041C | [4] | FITTING AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7X-9733 | [1] | FITTING | |
| 24. | 4J-0520C | [4] | SEAL-O-RING | |
| 25. | 148-8330C | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 8T-0198 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
