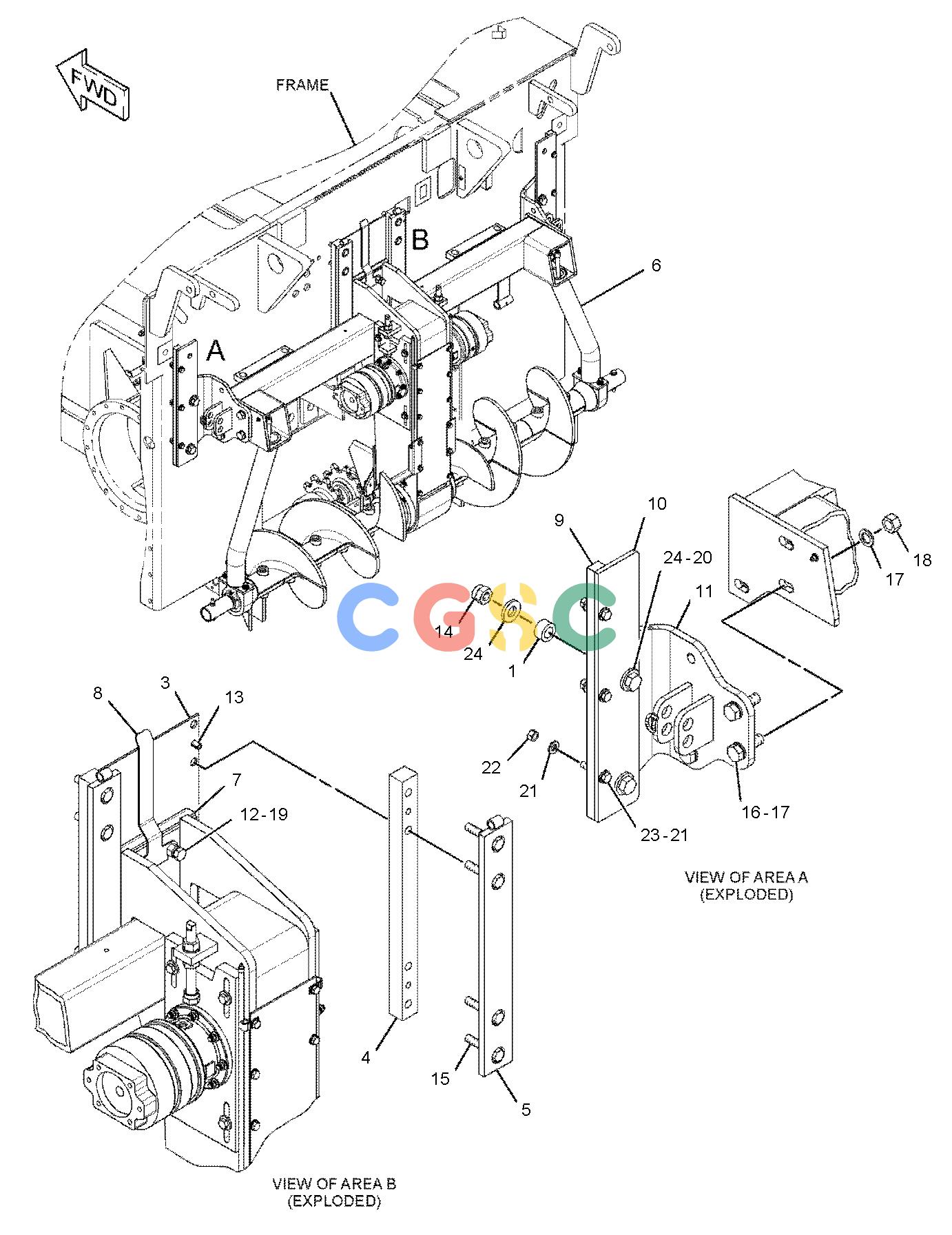

卡特零件查询（BG655D） 263-6001: AUGER GP
广数供应链运营团队, 17 02月, 2025，浏览：
618 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3P-9111 | [4] | SPACER(23X41.3X19-MM THK) | |
| 3. | 103-0155 | [1] | PLATE | |
| 4. | 170-1224 | [2] | BAR | |
| 5. | 323-7208C | [2] | RAIL AS | |
| 6. | 191-4421Y | [1] | CONVEYOR GP-AUGER | |
| 7. | 191-4423 | [1] | PLATE | |
| 8. | 249-5220 | [1] | PLATE | |
| 9. | 263-5975 | [2] | PLATE | |
| 10. | 263-5976 | [2] | PLATE | |
| 11. | 263-5977 | [2] | PLATE AS | |
| 12. | 168-7789M | [4] | BOLT(M16X2X55-MM) | |
| 13. | 2K-9062 | [4] | PIN-SPRING | |
| 14. | 6V-7688M | [4] | LOCKNUT(M20X2.5-THD) | |
| 15. | 7X-2555CM | [8] | BOLT(M16X2X80-MM) | |
| 16. | 7X-2563M | [6] | BOLT(M20X2.5X60-MM) | |
| 17. | 8T-4123 | [12] | WASHER(3.62X5.75X0.375-MM THK) | |
| 18. | 8T-4131M | [6] | NUT(M20X2.5-THD) | |
| 19. | 8T-4132M | [4] | NUT(M16X2-THD) | |
| 20. | 8T-4187M | [4] | BOLT(M20X2.5X80-MM) | |
| 21. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 22. | 8T-4244M | [6] | NUT(M12X1.75-THD) | |
| 23. | 8T-4910M | [6] | BOLT(M12X1.75X60-MM) | |
| 24. | 8T-5439 | [8] | WASHER-HARD(21.5X45X6-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
