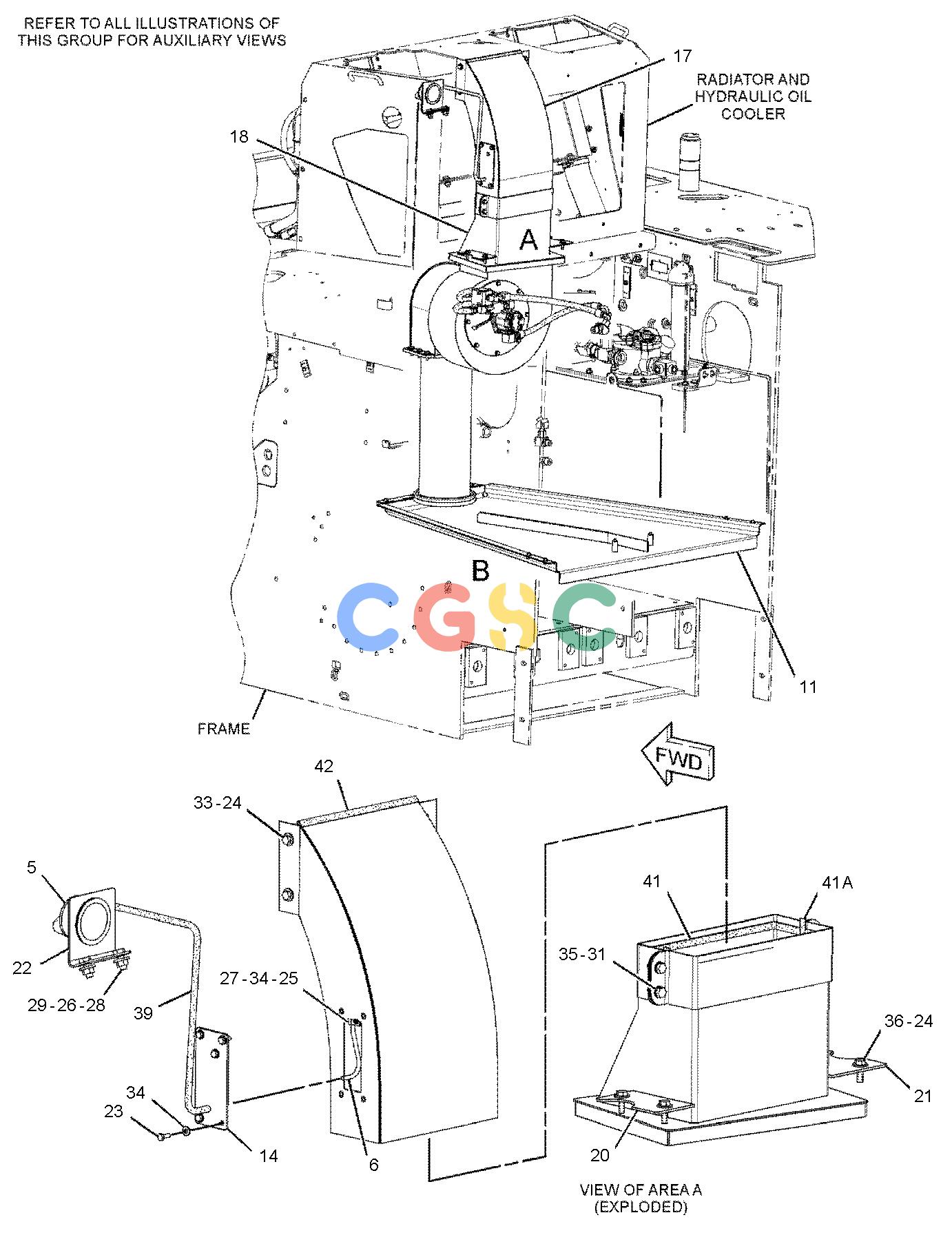

卡特零件查询（BG655D） 270-6763: VENTILATION GP-PAVER
广数供应链运营团队, 17 02月, 2025，浏览：
622 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4W-7627 | [2] | SPACER(11X19X37-MM THK) | |
| 2. | 6W-9789 | [1] | BAR | |
| 3. | 143-3500 | [1] | INLET-BLOWER | |
| 4. | 147-8904 | [1] | HOUSING AS-BLOWER | |
| 5. | 150-8702 | [1] | GAUGE-DIFFERENTIAL PRESSURE(PAVER VENTILATION) | |
| 6. | 222-9208 | [1] | TUBE | |
| 7. | 234-9162 | [1] | BLOWER GP-PAVER VENTILATION | |
| | 3B-8601 | [2] | SETSCREW-SOCKET(3/8-16X0.5-IN) | |
| 8. | 236-2581 | [1] | PLATE | |
| 9. | 236-4116 | [1] | DUCT AS | |
| 10. | 270-3559Y | [1] | VALVE & MTG GP-FLOW CONTROL(VENTILATION) | |
| 11. | 277-6422 | [1] | DUCT AS | |
| 12. | 277-8268 | [1] | DUCT AS | |
| 13. | 277-9933 | [3] | SPACER(14X25.4X26-MM THK) | |
| 14. | 277-9952 | [1] | PLATE | |
| 15. | 278-0492Y | [1] | MOTOR & MTG GP-VENTILATION | |
| 16. | 278-1868Y | [1] | LINES GP-PAVER VENTILATION | |
| 17. | 293-7519 | [1] | DUCT AS | |
| 18. | 293-7520 | [1] | DUCT AS | |
| 20. | 294-2176 | [1] | PLATE | |
| 21. | 294-2177 | [1] | PLATE | |
| 22. | 294-6002 | [1] | PLATE | |
| 23. | 5C-9553M | [5] | BOLT(M6X1X16-MM) | |
| 24. | 5P-4116 | [24] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 25. | 6V-7743M | [1] | LOCKNUT(M6X1-THD) | |
| 26. | 7X-7729 | [5] | WASHER(11X25X3-MM THK) | |
| 27. | 8M-2771 | [1] | CLIP | |
| 28. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 29. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 30. | 8T-4185M | [3] | BOLT(M10X1.5X50-MM) | |
| 31. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 32. | 8T-4199M | [8] | BOLT(M8X1.25X12-MM) | |
| 33. | 8T-4200M | [4] | BOLT(M8X1.25X16-MM) | |
| 34. | 8T-4205 | [21] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 35. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 36. | 8T-4908M | [10] | BOLT(M8X1.25X25-MM) | |
| 37. | 8T-7329M | [2] | BOLT(M8X1.25X55-MM) | |
| 38. | 8T-9364 | [16] | BOLT(1/4-20X0.625-IN) | |
| 39. | 144-0195E | | HOSE(73-CM) | |
| 40. | 128-8423E | | SEAL(16-CM EACH) | |
| 40A. | 128-8423E | | SEAL(27-CM EACH) | |
| 40B. | 128-8423E | | SEAL(70-CM) | |
| 41. | 128-2596D | | SEAL(0.38-M EACH) | |
| 41A. | 128-2596D | | SEAL(0.08-M EACH) | |
| 42. | 7X-7877E | | STRIP-EDGE(26-CM EACH) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
