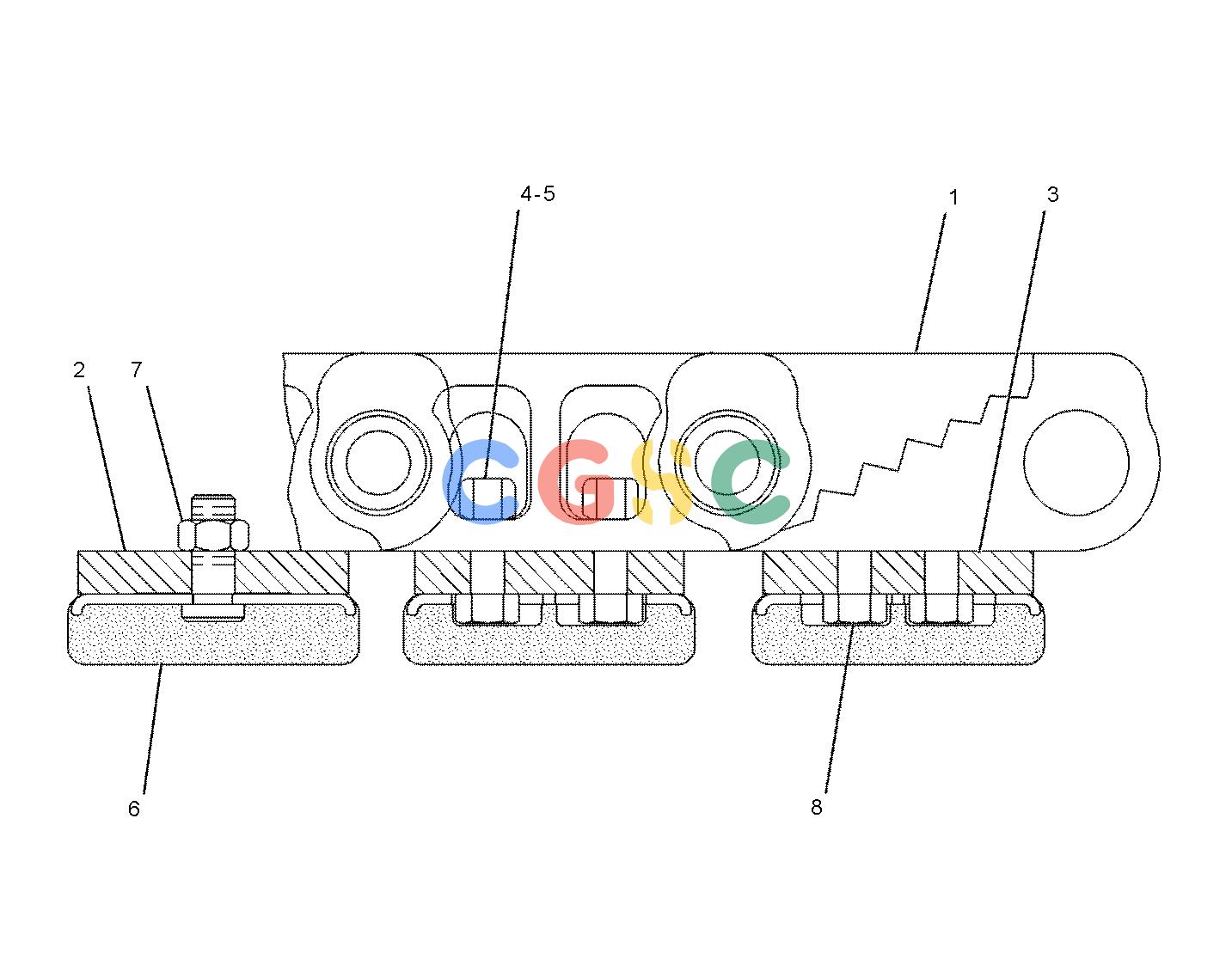

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 222-3058CY | [1] | LINK AS-TRACK | |
| 2. | 136-1090 | [49] | PLATE-BACKING | |
| 3. | 136-1135 | [1] | PLATE-BACKING | |
| 4. | 8S-4745 | [196] | BOLT(9/16-18X2-IN) | |
| 5. | 7K-2017 | [196] | NUT-SQUARE(9/16-18-THD) | |
| 6. | 461-2418 | [50] | PAD AS-TRACK | |
| [1] | PLATE AS | |||
| 7. | 2K-4821 | [100] | LOCKNUT(5/8-18-THD) | |
| 8. | 8S-4747 | [4] | BOLT(9/16-18X3.5-IN) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| Y | SEPARATE ILLUSTRATION | |||
