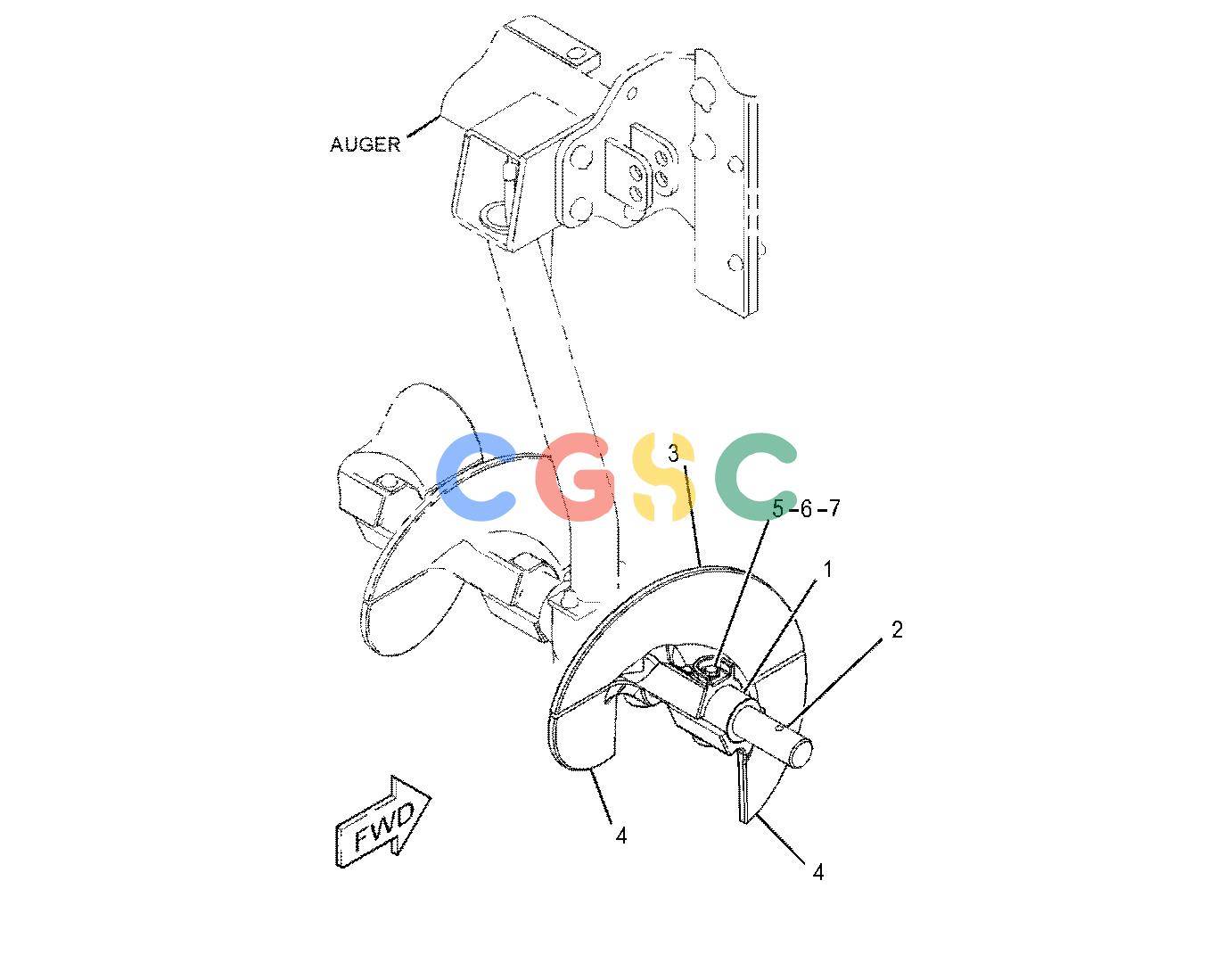

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 310-5419 | [1] | TUBE | |
| 2. | 310-5421 | [1] | SHAFT | |
| 3. | 419-6688C | [1] | SEGMENT-HALF AUGER(RH) | |
| 4. | 419-6691C | [2] | SEGMENT-QUARTER AUGER(INNER, LH; OUTER, RH) | |
| 5. | 6V-7687M | [2] | LOCKNUT(M12X1.75-THD) | |
| 6. | 8T-4223C | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 7. | 8T-5001M | [2] | BOLT(M12X1.75X130-MM) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| M | METRIC PART | |||
