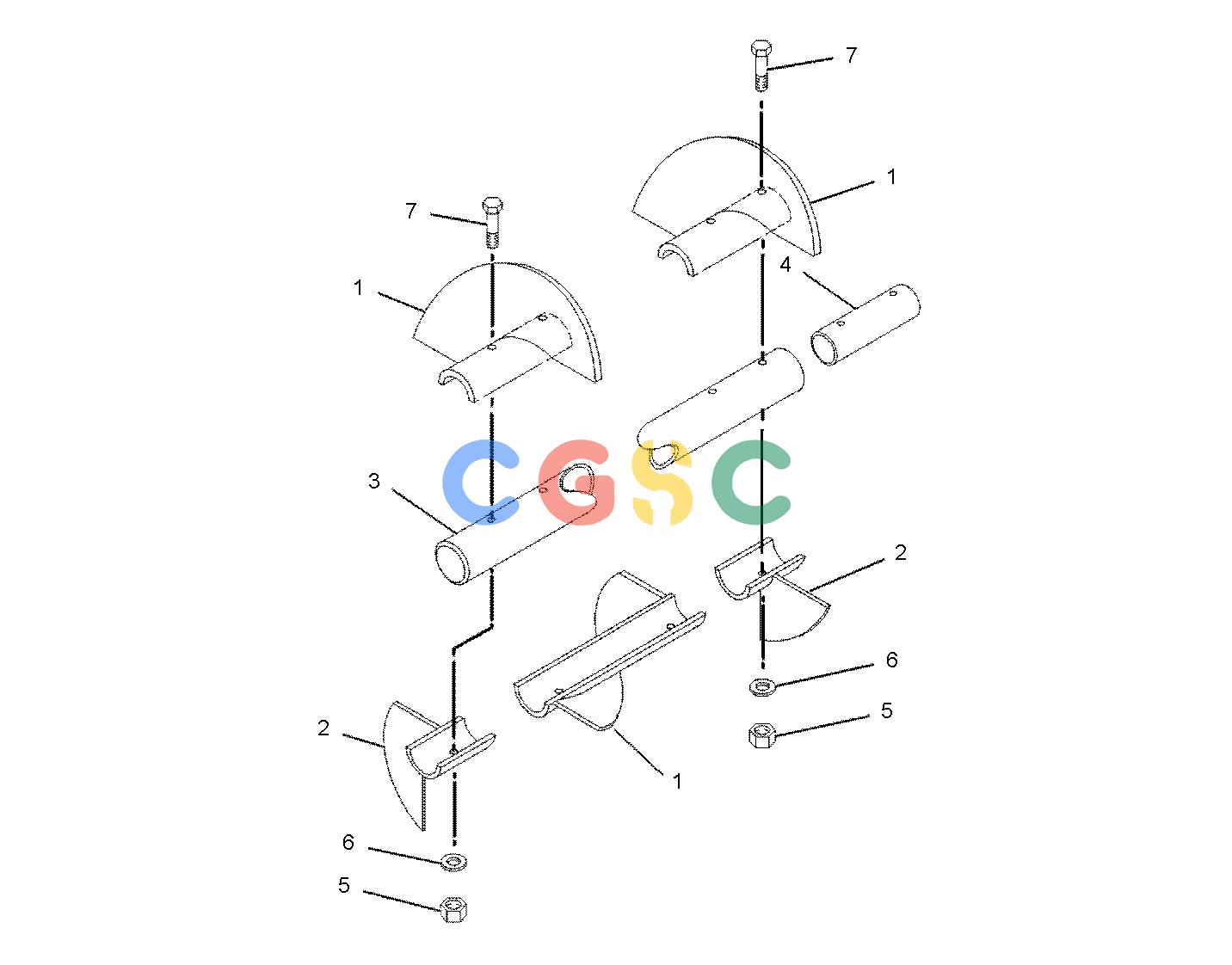

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8T-8005 | [3] | SEGMENT-HALF AUGER | |
| 2. | 8T-8007 | [2] | SEGMENT-QUARTER AUGER | |
| 3. | 310-5420 | [1] | TUBE | |
| 4. | 310-5421 | [1] | SHAFT | |
| 5. | 6V-7687M | [4] | LOCKNUT(M12X1.75-THD) | |
| 6. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 7. | 310-6460 | [4] | BOLT(M12X1.75X130-MM) | |
| M | METRIC PART | |||
