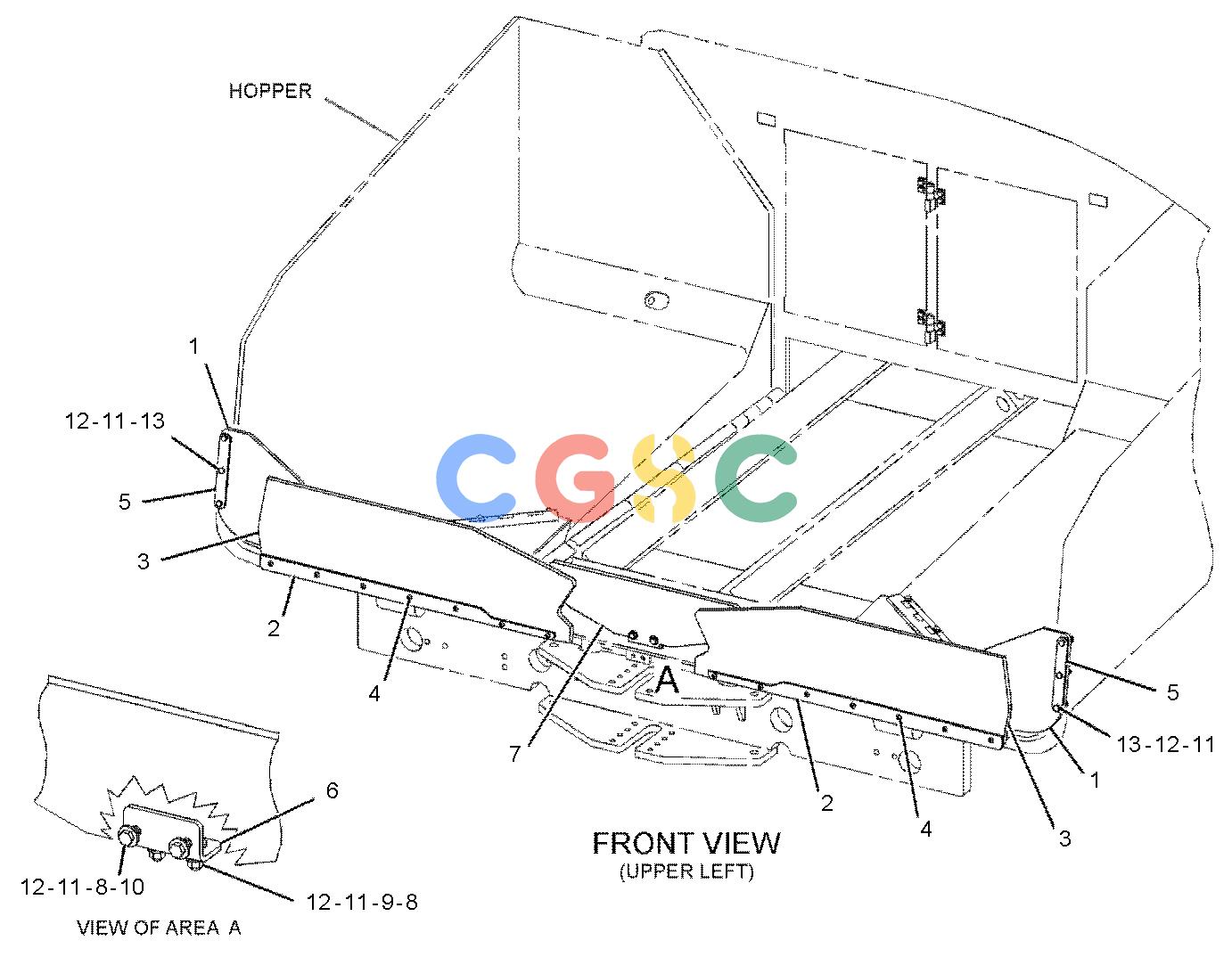

卡特零件查询（BG655D） 279-2577: FLASHING GP
广数供应链运营团队, 17 02月, 2025，浏览：
980 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 271-5090 | [2] | FLASHING | |
| 2. | 275-1142 | [2] | PLATE | |
| 3. | 275-1150 | [2] | FLASHING | |
| 4. | 281-2901M | [14] | SCREW-BUTTON HEAD(M10X1.5X40-MM) | |
| 5. | 283-8414 | [2] | PLATE | |
| 6. | 303-8784 | [1] | PLATE | |
| 7. | 303-8787 | [1] | FLASHING | |
| 8. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 9. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 10. | 8T-4194M | [2] | BOLT(M12X1.75X50-MM) | |
| 11. | 8T-4223 | [10] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 8T-4244M | [10] | NUT(M12X1.75-THD) | |
| 13. | 8T-4910M | [6] | BOLT(M12X1.75X60-MM) | |
| | M | | METRIC PART |
