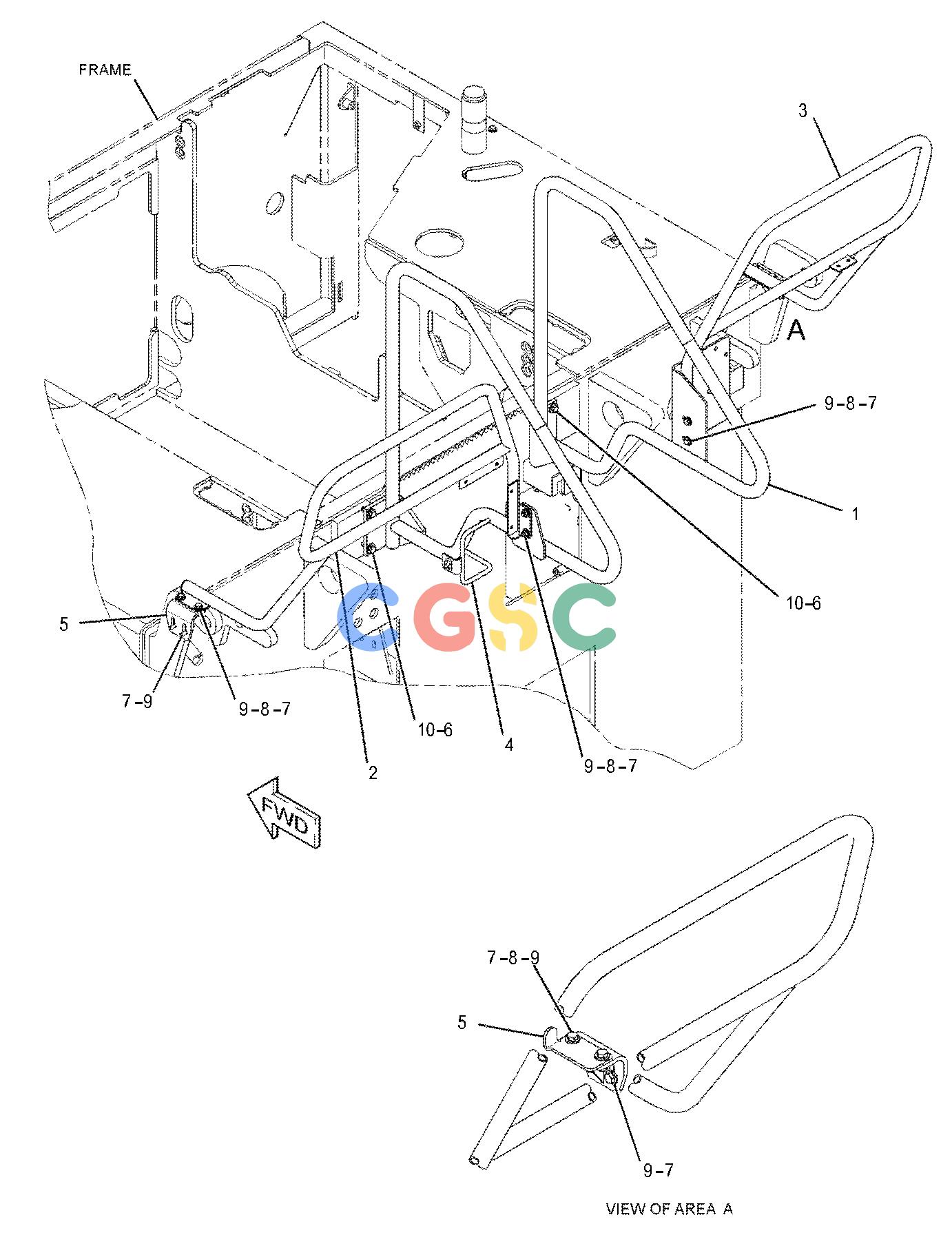

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 315-2620 | [1] | HANDRAIL AS(RH) | |
| 2. | 331-9678 | [1] | HANDRAIL AS(LH) | |
| 6V-9632M | [4] | NUT-WELD(M6X1-THD) | ||
| 3. | 331-9679 | [1] | HANDRAIL AS(RH) | |
| 4. | 371-5990 | [1] | HANDRAIL AS(LH) | |
| 5. | 334-3369 | [2] | BRACKET AS | |
| 6. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 7. | 7X-7729 | [20] | WASHER(11X25X3-MM THK) | |
| 8. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 9. | 8T-4195M | [12] | BOLT(M10X1.5X30-MM) | |
| 10. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| M | METRIC PART | |||
