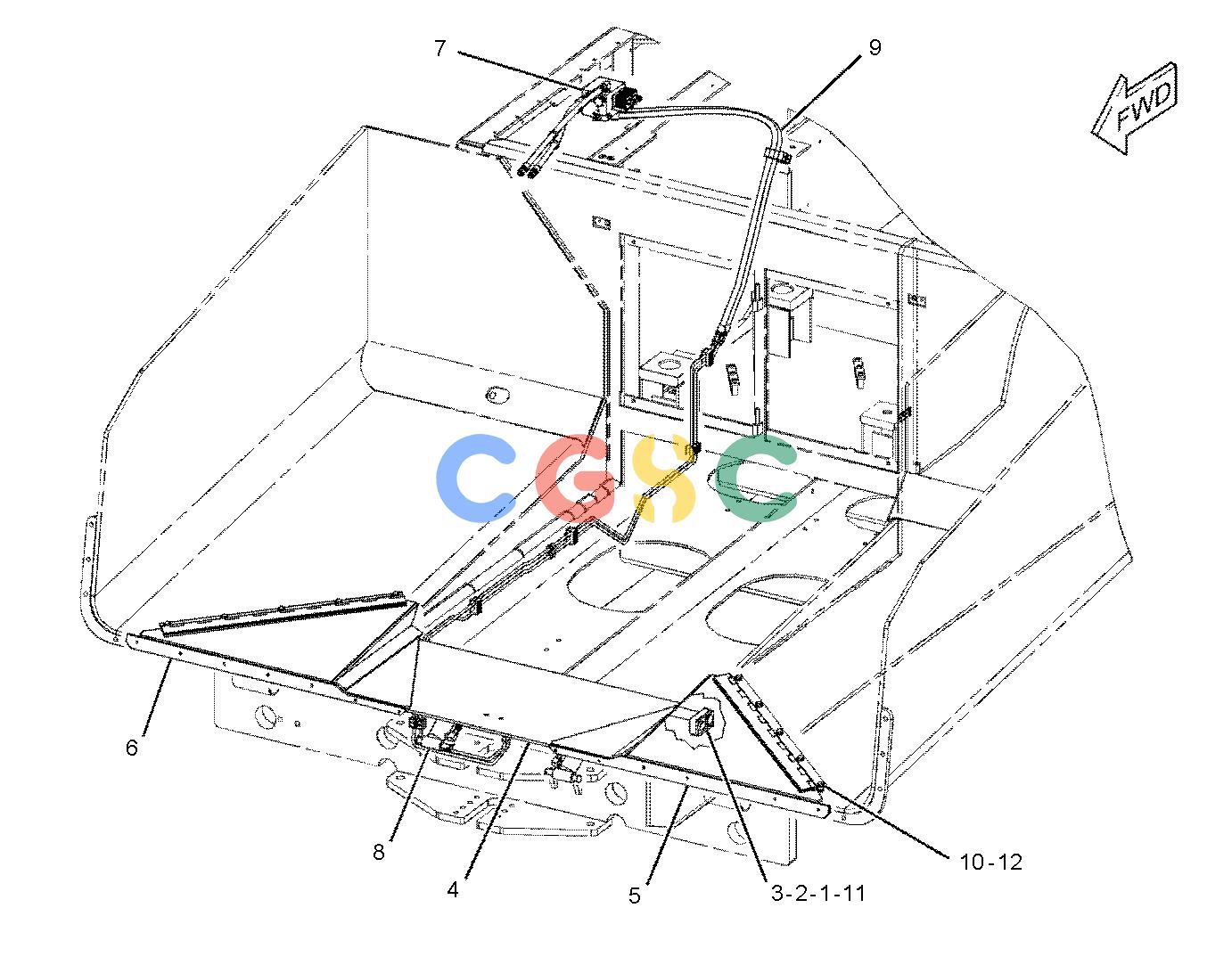

卡特零件查询（BG655D） 278-8234: HOPPER GP
广数供应链运营团队, 17 02月, 2025，浏览：
179 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7W-9738 | [1] | WASHER(10.5X38X1.6-MM THK) | |
| 2. | 106-1242 | [1] | SPACER(13.8X23.75X12.7-MM THK) | |
| 3. | 268-7933 | [1] | PIN AS | |
| 4. | 272-1932 | [1] | PLATE AS | |
| 5. | 272-1939 | [1] | PLATE AS | |
| 6. | 272-1940 | [1] | PLATE AS | |
| 7. | 274-5857Y | [1] | VALVE & MOUNTING GP(APRON FOLD) | |
| 8. | 276-5032Y | [1] | CYLINDER & MTG GP-APRON(APRON FOLD) | |
| 9. | 278-7739Y | [1] | LINES GP-HOPPER(APRON) | |
| 10. | 8T-4192M | [10] | BOLT(M12X1.75X25-MM) | |
| 11. | 8T-4196M | [1] | BOLT(M10X1.5X35-MM) | |
| 12. | 8T-4223 | [10] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
