卡特零件查询（BG655D） 245-9078: PLATE GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
494 次

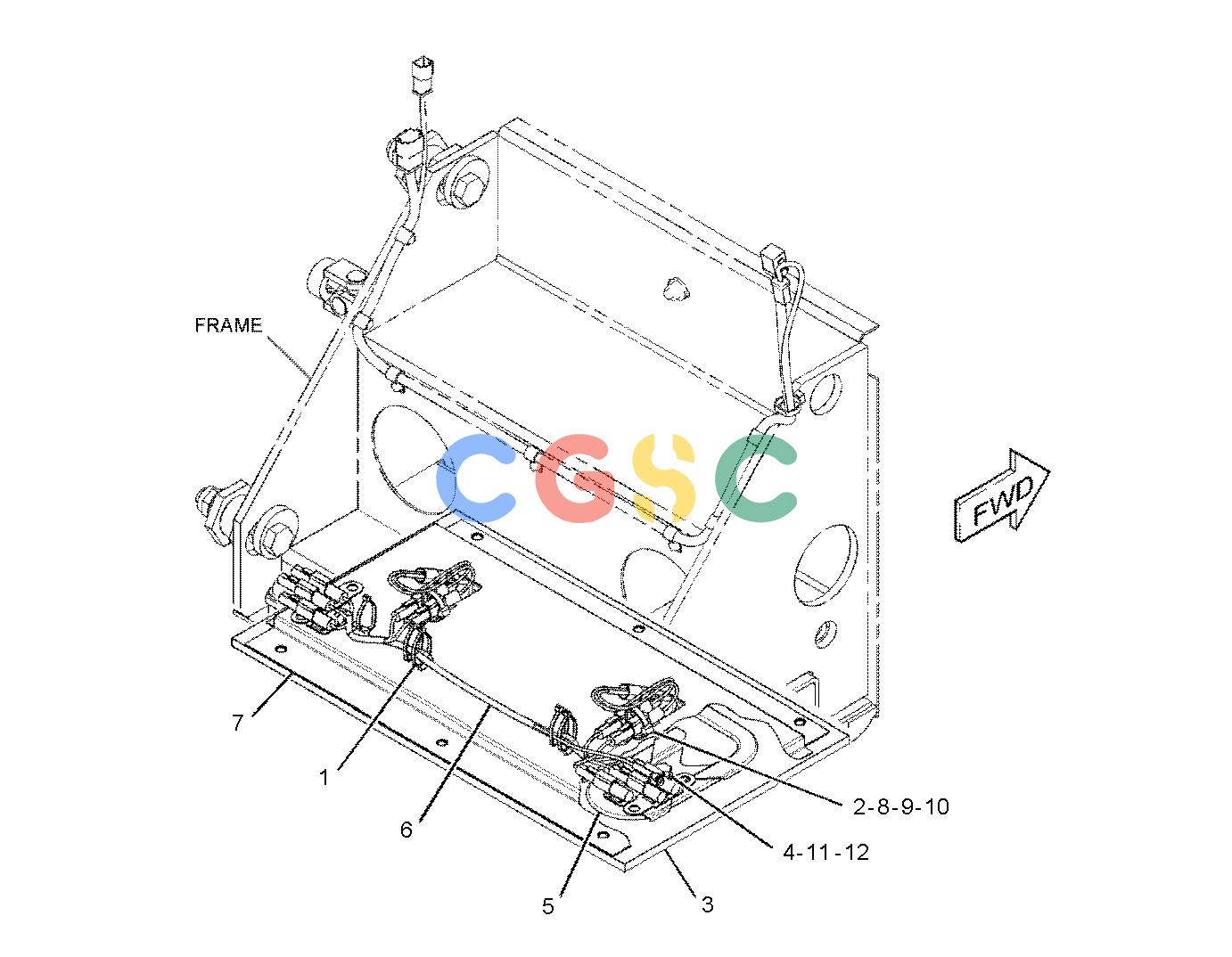

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093C | [5] | STRAP-CABLE | |
| 2. | 7K-1181 | [2] | STRAP-CABLE | |
| 3. | 245-9060 | [1] | PLATE | |
| 4. | 250-0737 | [4] | BRACKET | |
| 5. | 349-3008C | [2] | HEATER AS-SCREED(240-VOLT, 1180-WATT) | |
| | | | (EACH INCLUDES) |
| | 129-7164 | [2] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 6. | 309-9227C | [1] | HARNESS AS-SCREED(HEATER ELEMENT) | |
| | 8N-1540 | [3] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 129-7163 | [10] | PLUG AS-CONNECTOR(1-PIN) | |
| | 8T-8737 | [6] | PLUG-SEAL | |
| | 129-7164 | [6] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| | 8N-1541 | [7] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| 7. | 311-6538C | [1] | PLATE AS | |
| 8. | 132-5789 | [2] | CLIP(LADDER) | |
| 9. | 5P-1075 | [2] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 10. | 5P-8167 | [2] | BOLT(3/8-16X0.625-IN) | |
| 11. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 8T-9384 | [4] | BOLT(1/2-13X0.875-IN) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
