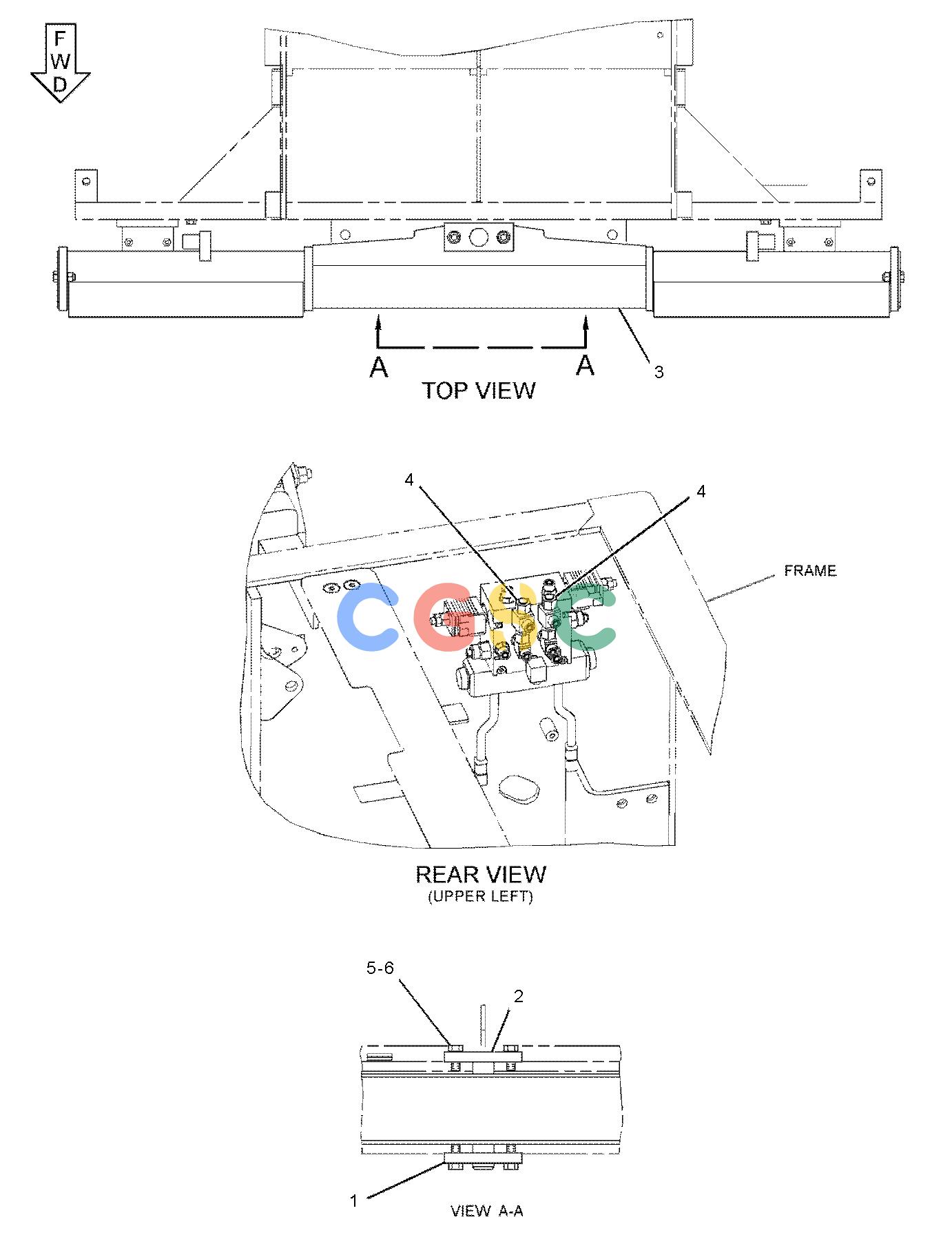

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 195-0408 | [1] | BAR | |
| 2. | 195-0409 | [1] | PIN AS | |
| 195-0408 | [1] | BAR | ||
| 3. | 292-0983Y | [1] | ROLLER GP-PUSH | |
| 4. | 6V-9829 | [2] | CAP(ORFS) | |
| 5. | 8T-4123 | [4] | WASHER(3.62X5.75X0.375-MM THK) | |
| 6. | 8T-6430M | [4] | BOLT(M20X2.5X50-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
