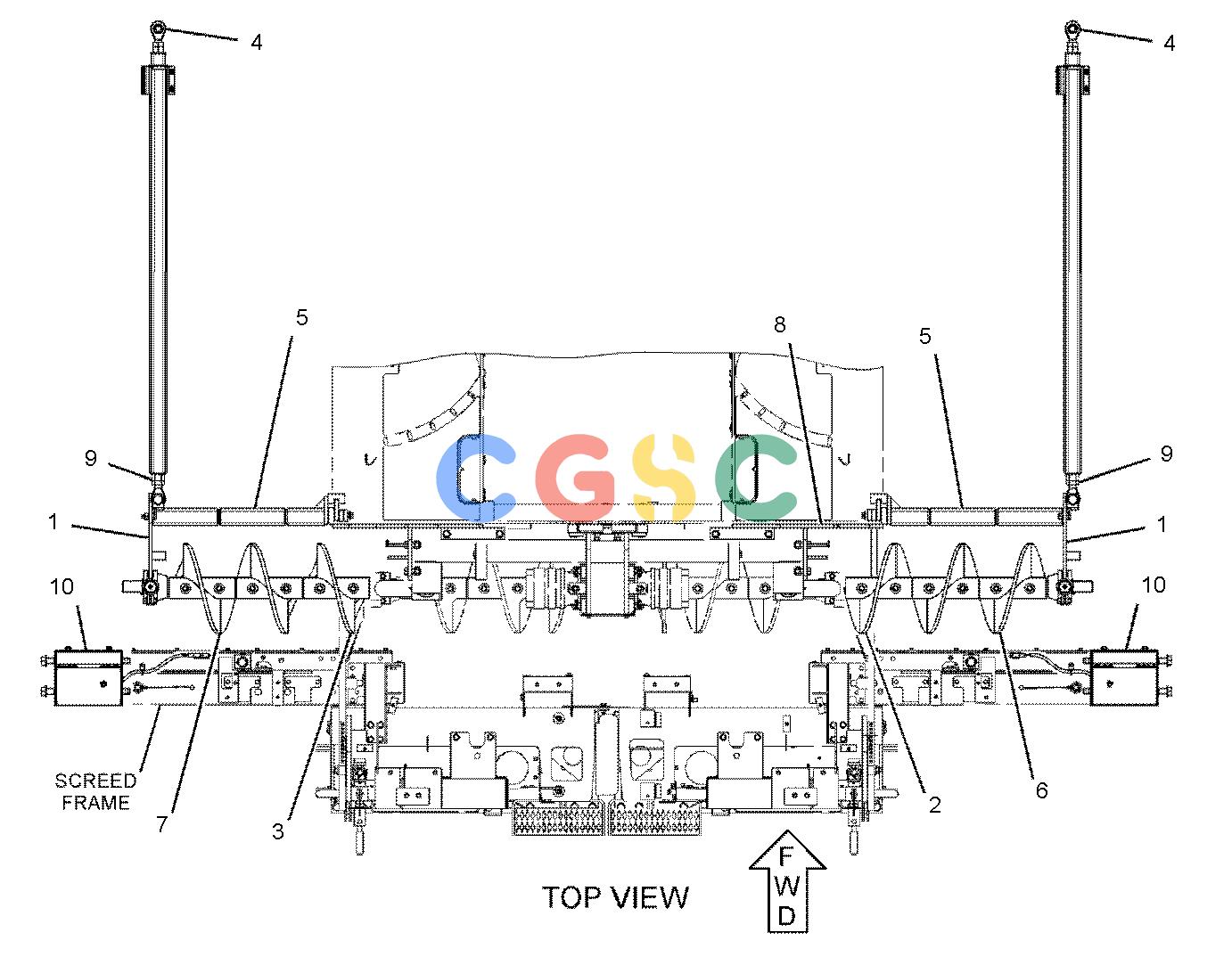

卡特零件查询（BG655D） 282-8505: EXTENSION GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
715 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 116-9509Y | [2] | BEARING GP-AUGER | |
| | 315-1101Y | [2] | BRACE GP | |
| | 282-8500Y | [1] | BRACKET GP-SUPPORT | |
| | 198-8287Y | [3] | EXTENSION GP-AUGER(12-IN, RH) | |
| | 199-4206Y | [3] | EXTENSION GP-AUGER(12-IN, LH) | |
| | 231-1982Y | [6] | EXTENSION GP-MAIN FRAME(12-IN) | |
| | 287-0329Y | [2] | EXTENSION GP-SCREED | |
| | 231-1956Y | [2] | SUPPORT GP-FRAME | |
| | | | |
| | 246-3318B | [1] | TUBE AS | |
| | | | |
| | 8T-4193M | [6] | BOLT(M16X2X50-MM) | |
| | 8I-0922 | [1] | WRENCH | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
