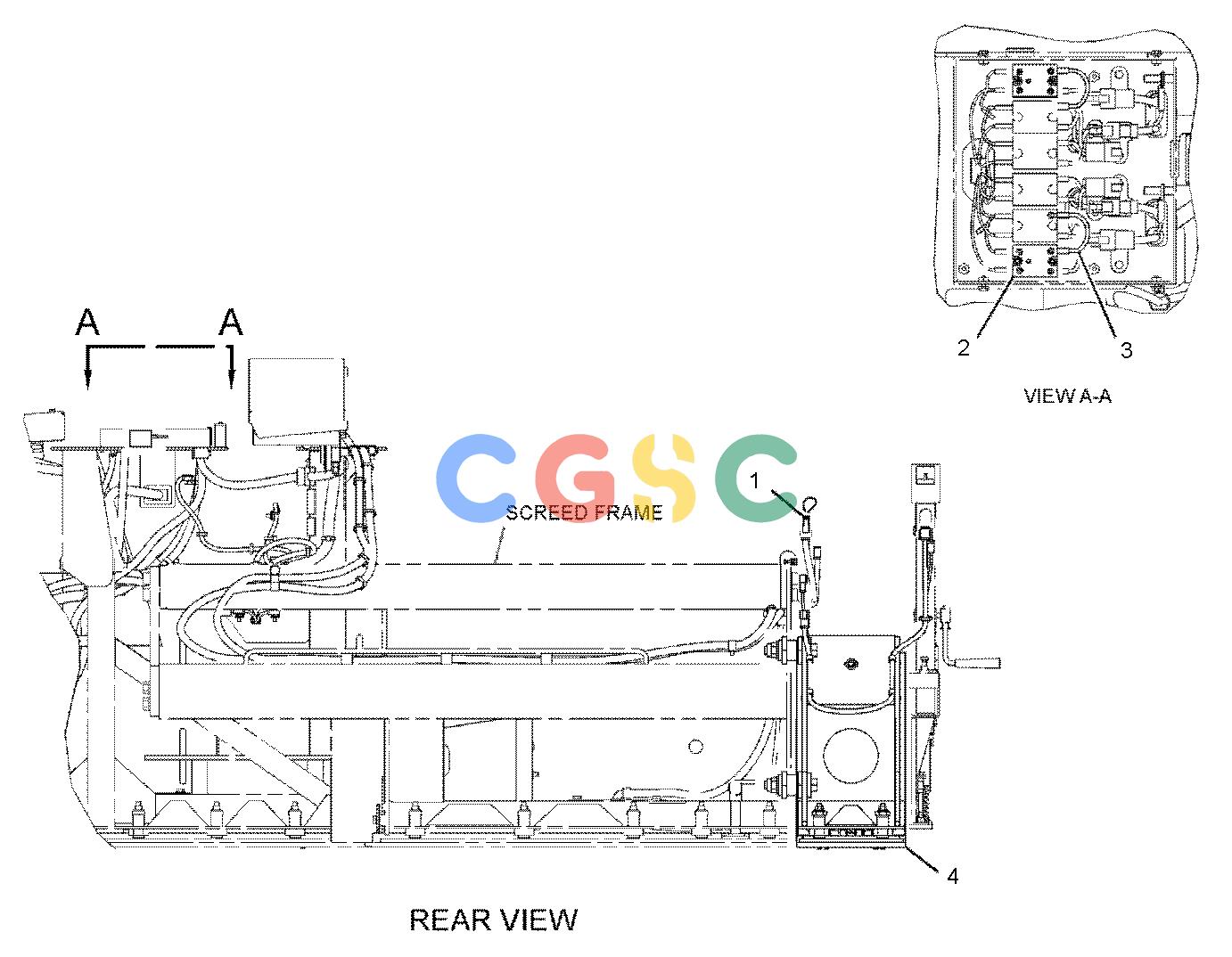

卡特零件查询（BG655D） 282-8507: EXTENSION GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
833 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 116-9509Y | [2] | BEARING GP-AUGER | |
| 2. | 198-8287Y | [2] | EXTENSION GP-AUGER(12-IN, RH) | |
| 3. | 199-4206Y | [2] | EXTENSION GP-AUGER(12-IN, LH) | |
| 4. | 231-1956Y | [2] | SUPPORT GP-FRAME | |
| 5. | 231-1982Y | [2] | EXTENSION GP-MAIN FRAME(12-IN) | |
| 6. | 231-1983Y | [2] | EXTENSION GP-MAIN FRAME(24-IN) | |
| 7. | 231-2042Y | [1] | EXTENSION GP-AUGER(24-IN, RH) | |
| 8. | 231-2043Y | [1] | EXTENSION GP-AUGER(24-IN, LH) | |
| 9. | 282-8500Y | [1] | BRACKET GP-SUPPORT | |
| 10. | 315-1101Y | [2] | BRACE GP | |
| 11. | 322-6286Y | [2] | EXTENSION GP-SCREED(ELECTRIC HEAT, 2-FT) | |
| | | | |
| | 246-3318F | [1] | TUBE AS | |
| | F | | NOT SHOWN |
| | Y | | SEPARATE ILLUSTRATION |
