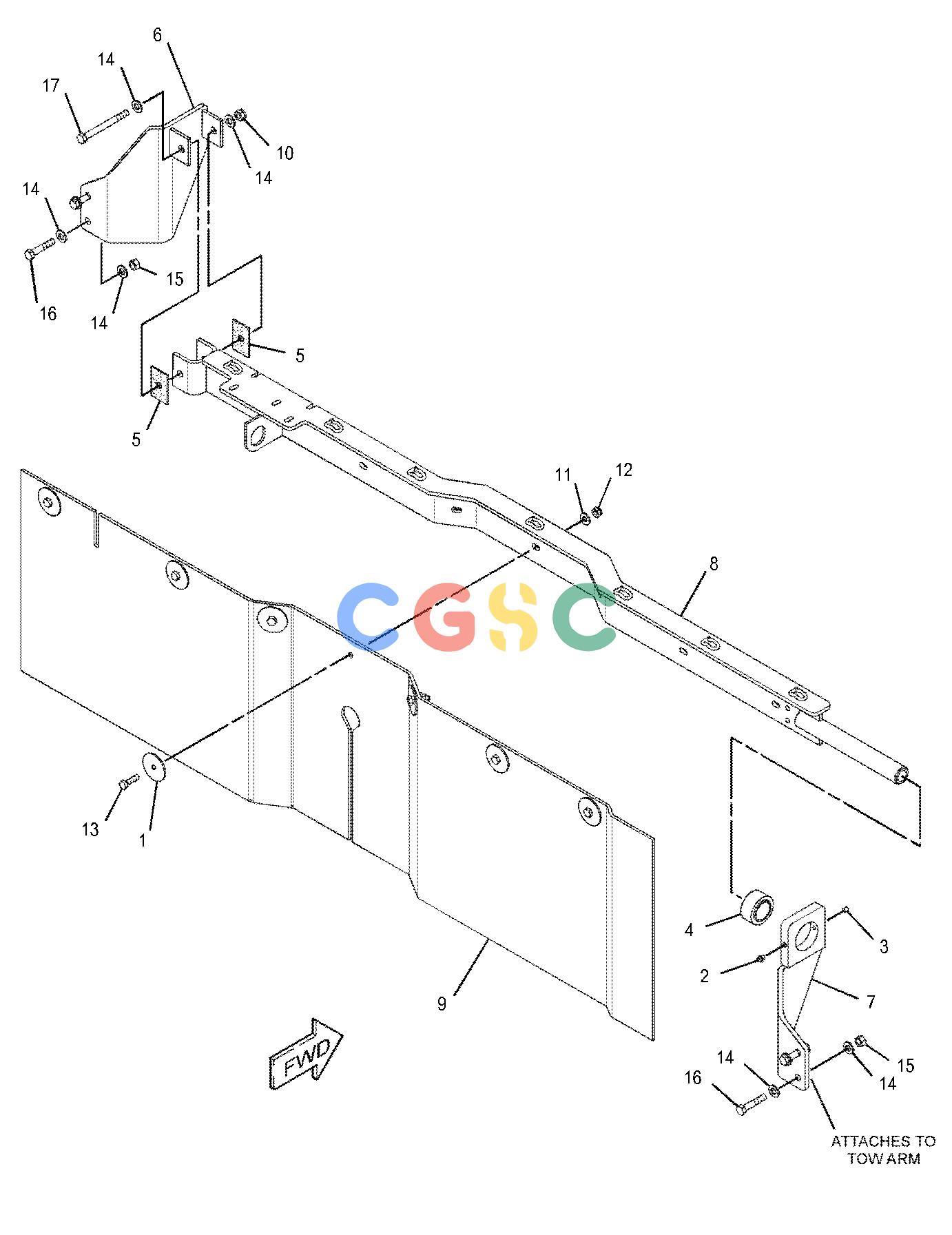

卡特零件查询（BG655D） 272-0697: BEAM GP-TRANSVERSE
广数供应链运营团队, 17 02月, 2025，浏览：
753 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2G-8767 | [7] | WASHER(10.5X60X3-MM THK) | |
| 2. | 3B-8489 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 3. | 3C-1887M | [1] | SETSCREW-SOCKET(M8X1.25X12-MM) | |
| 4. | 4D-0298 | [1] | BEARING | |
| 5. | 192-4278 | [2] | PAD | |
| 6. | 272-0698 | [1] | BRACKET AS | |
| 7. | 272-0700 | [1] | BRACKET AS | |
| 8. | 272-0702 | [1] | BEAM AS | |
| 9. | 418-9381 | [1] | DEFLECTOR | |
| 10. | 129-3180M | [1] | LOCKNUT(M12X1.75-THD) | |
| 11. | 8T-0389M | [7] | LOCKNUT(M10X1.5-THD) | |
| 12. | 7X-7729 | [7] | WASHER(11X25X3-MM THK) | |
| 13. | 8T-4196M | [7] | BOLT(M10X1.5X35-MM) | |
| 14. | 8T-4223 | [10] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 15. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 16. | 8T-4910M | [4] | BOLT(M12X1.75X60-MM) | |
| 17. | 8T-5041M | [1] | BOLT(M12X1.75X120-MM) | |
| | M | | METRIC PART |
