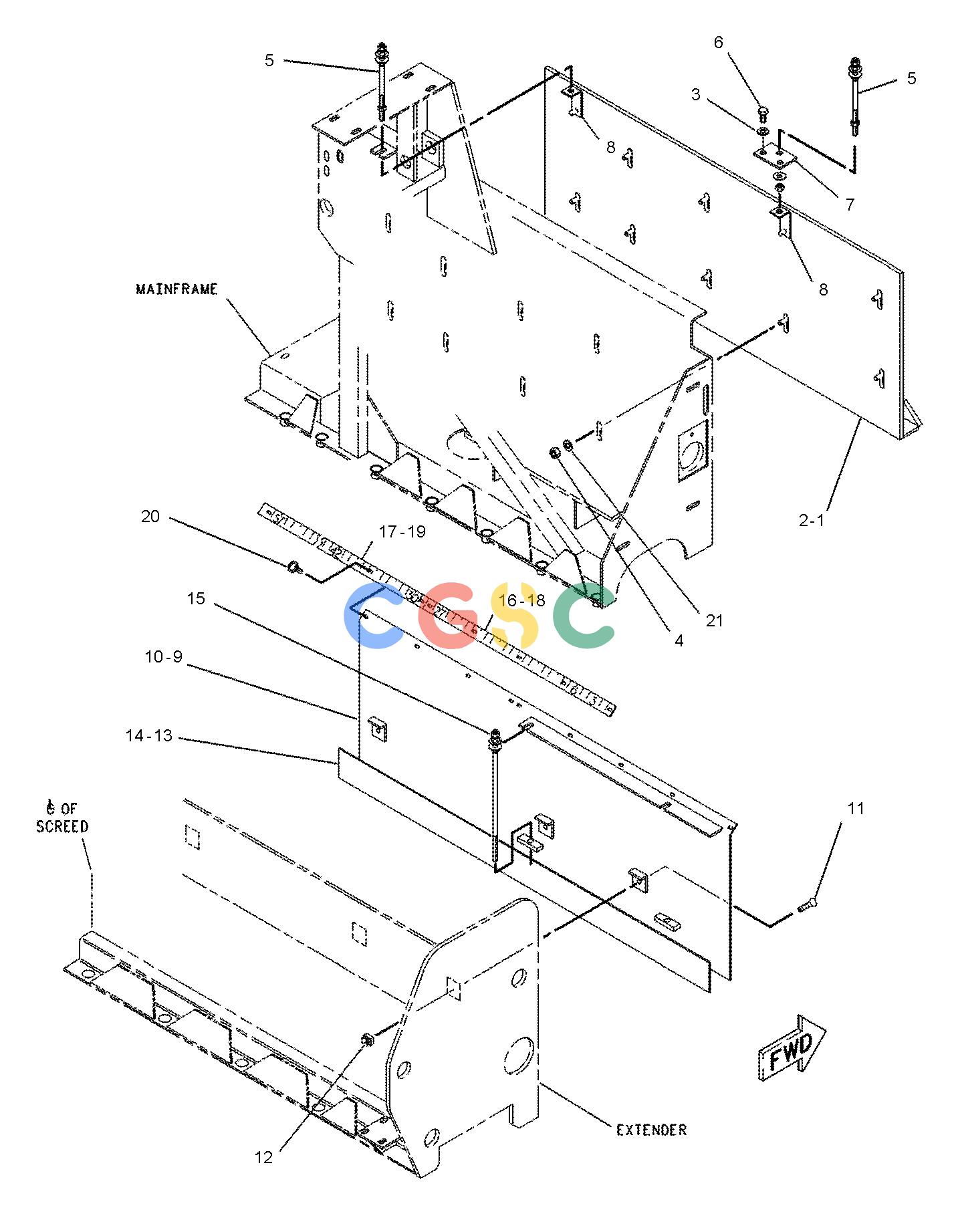

卡特零件查询（10） 8I-0292: DEFLECTOR GP
广数供应链运营团队, 17 02月, 2025，浏览：
507 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0293 | [1] | PLATE AS(RH) | |
| 2. | 8I-0303 | [1] | PLATE AS(LH) | |
| 3. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 4. | 1K-6872 | [20] | LOCKNUT(1/2-13-THD) | |
| 5. | 8I-0295 | [4] | ROD AS-ADJUSTING | |
| 6. | 5P-2228 | [4] | BOLT(1/2-13X1-IN) | |
| 7. | 8I-0332 | [2] | PLATE-MOUNTING | |
| 8. | 8I-0305 | [1] | BRACKET AS-ADJUSTMENT | |
| 9. | 8I-0296 | [1] | PLATE AS(RH) | |
| 10. | 8I-0297 | [1] | PLATE AS(LH) | |
| 11. | 107-2784 | [8] | SCREW-FLAT HEAD(1/2-13X1.5-IN) | |
| 12. | 104-2231 | [8] | NUT-SPRING | |
| 13. | 8I-0300 | [1] | PLATE AS(RH) | |
| 14. | 8I-0986 | [1] | PLATE AS(LH) | |
| 15. | 8I-0302 | [1] | ROD AS-ADJUSTING | |
| 16. | 8I-0323 | [1] | SCALE(29-IN) | |
| 17. | 8I-0324 | [1] | SCALE(29 TO 58 INCH) | |
| 18. | 8I-0325 | [1] | SCALE(29-IN) | |
| 19. | 8I-0326 | [1] | SCALE(29 TO 58 INCH) | |
| 20. | 5D-8412 | [20] | SCREW-ROUND HEAD(8-32X0.5-IN) | |
| 21. | 5P-1076 | [20] | WASHER-HARD(13.5X30X4-MM THK) | |
