卡特零件查询（10） 110-1532: ADJUSTER GP-STRIKE-OFF
广数供应链运营团队, 17 02月, 2025，浏览：
535 次

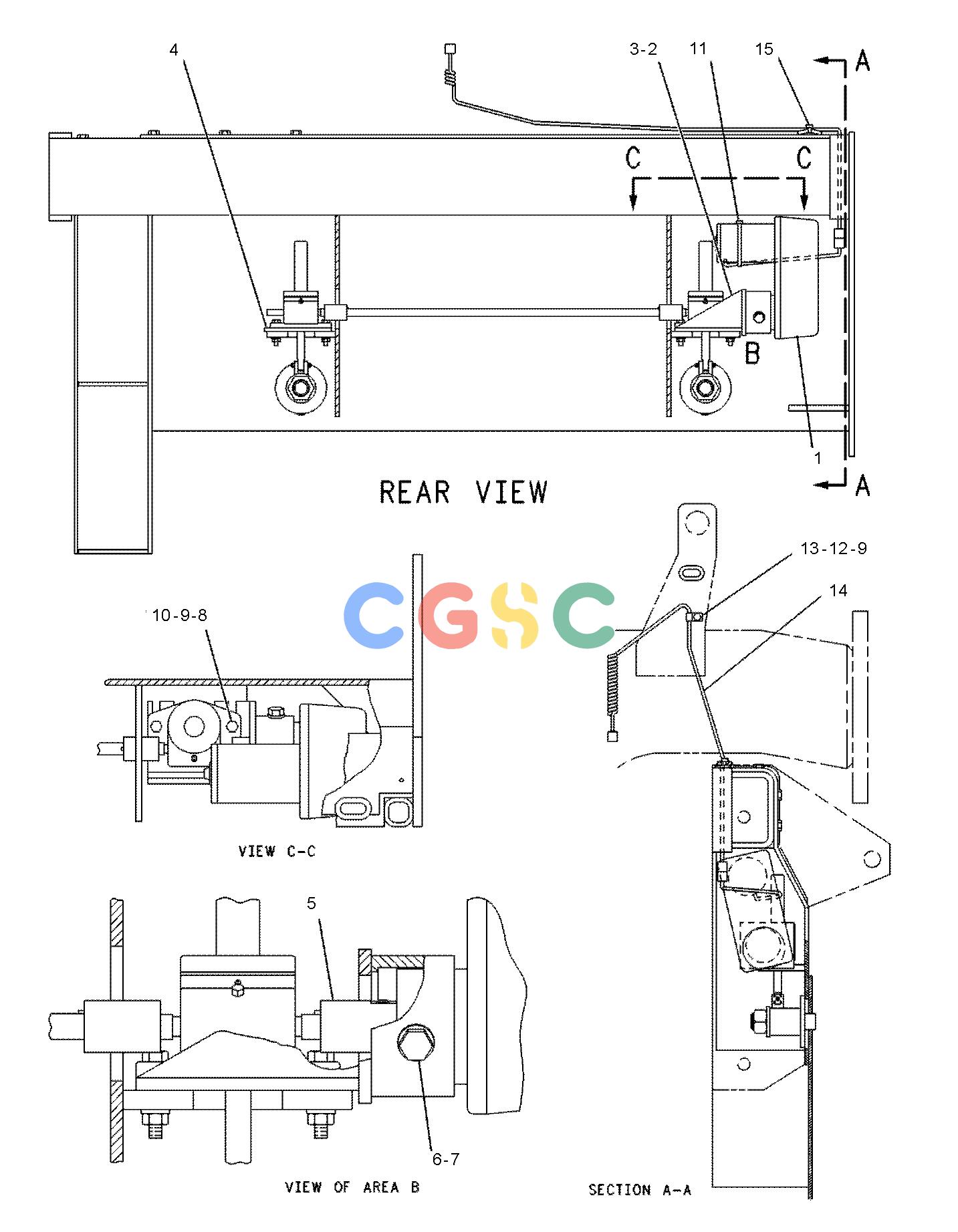

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 110-7839 | [4] | JACK | |
| 2. | 1B-1406 | [4] | PIN | |
| 3. | 3B-5311 | [4] | PIN-COTTER | |
| 4. | 7V-3715 | [4] | WASHER(28X85X8-MM THK) | |
| 5. | 112-5293 | [2] | ROD | |
| 6. | 110-7907 | [6] | BUSHING | |
| 7. | 102-2739 | [4] | KEY-SQUARE | |
| 8. | 8I-0923 | [4] | COUPLING | |
| 9. | 112-5294 | [4] | PIVOT AS | |
| 10. | 8T-5361 | [4] | WASHER-HARD(28X49X5-MM THK) | |
| 11. | 6K-3632 | [4] | LOCKNUT(1-8-THD) | |
| 12. | 117-0619 | [6] | KEY-RECTANGULAR | |
| 13. | 4B-4274 | [4] | WASHER(5.5X13X1.2-MM THK) | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH & RH SIDES |
