卡特零件查询（10） 117-7804: EXTENSION GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
187 次

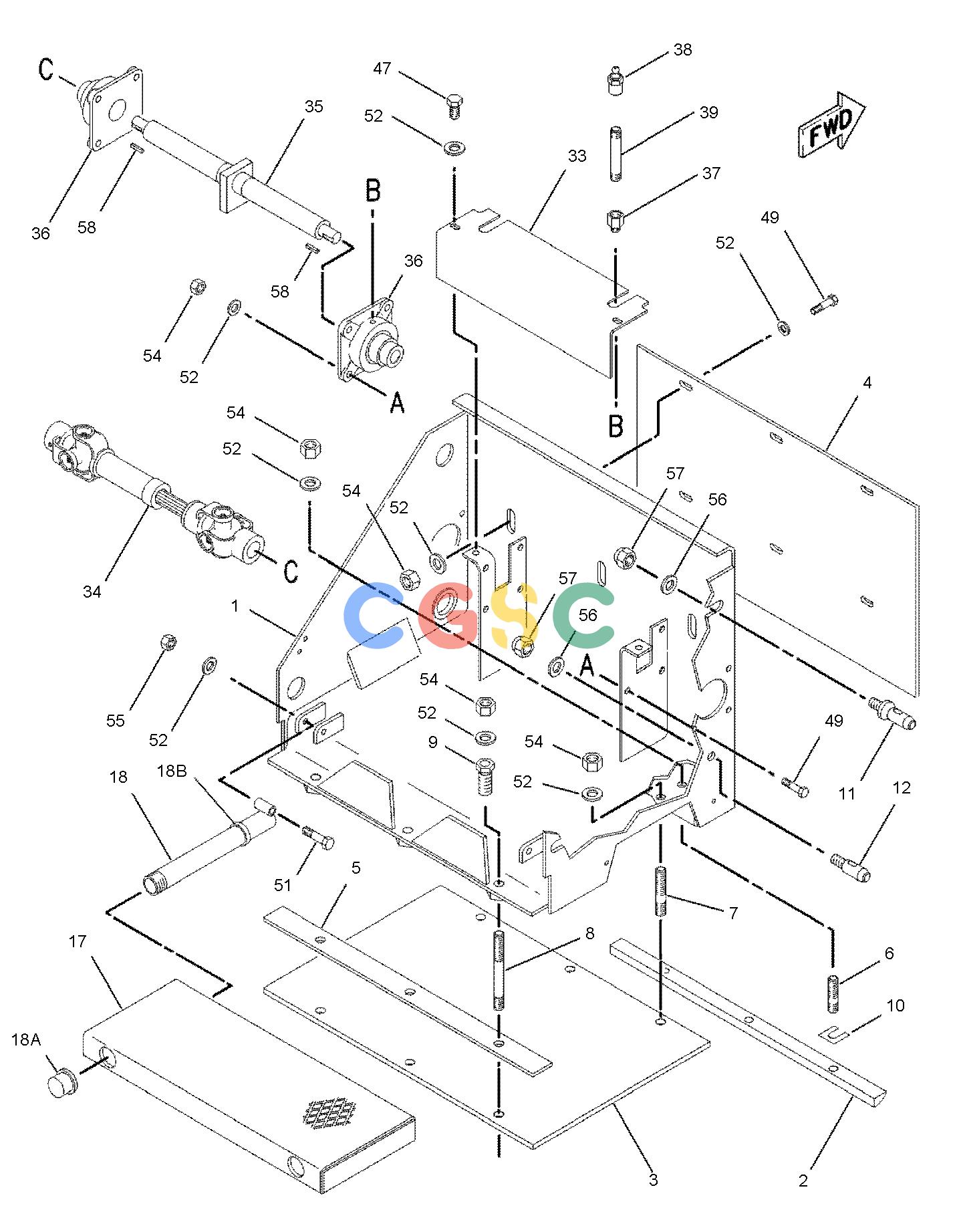

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 117-7809 | [1] | FRAME AS-STANDARD | |
| 2. | 117-7920 | [1] | BAR-NOSE | |
| 3. | 117-7923 | [1] | PLATE-EXTENSION | |
| 4. | 117-7927 | [1] | PLATE-DEFLECTOR | |
| 5. | 120-5837 | [1] | BAR-SPACER | |
| 6. | 8I-0189 | [3] | STUD(1/2-13X1.75-IN) | |
| 7. | 8I-0185 | [3] | STUD(1/2-13X2.75-IN) | |
| 8. | 8I-0212 | [3] | STUD(1/2-13X5-IN) | |
| 9. | 8I-0184 | [3] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 10. | 8I-0889 | [3] | SHIM(0.02-IN THK) | |
| 11. | 8C-7099 | [2] | MANDREL | |
| 12. | 8C-7100 | [1] | MANDREL | |
| 13. | 8C-7215 | [2] | PIN | |
| 14. | 081-7759 | [1] | PIN | |
| 15. | 8C-7102 | [2] | NUT(ECCENTRIC) | |
| 16. | 8C-7103 | [2] | NUT-JAM(2.35-18-THD) | |
| 17. | 117-8347 | [1] | PLATFORM AS-EXTENSION | |
| 18. | 110-6224 | [2] | SUPPORT AS | |
| | | | (EACH INCLUDES) |
| 18A. | 8F-7800 | [1] | CAP-PIPE | |
| 18B. | 102-2838 | [1] | COLLAR | |
| 19. | 117-8339 | [1] | CHAMBER AS-LOWER BURNER | |
| | 8T-5911 | [4] | NUT-WELD(1/2-13-THD) | |
| 20. | 117-8344 | [1] | INSULATION | |
| 21. | 110-6218 | [1] | CHAMBER AS-UPPER BURNER | |
| 22. | 8T-8013 | [1] | GLOW PLUG(12-VOLT) | |
| 23. | 8I-0997 | [1] | CONNECTOR AS | |
| 24. | 111-8140 | [1] | VALVE-CHECK | |
| 25. | 102-2725 | [1] | ADAPTER | |
| 26. | 102-2688 | [1] | NOZZLE | |
| 27. | 102-2706 | [1] | RING-FLAME | |
| 28. | 8I-0998 | [1] | BRACKET-MOUNTING | |
| 29. | 102-2698 | [1] | HOUSING-BLOWER | |
| 30. | 102-2697 | [1] | WHEEL-BLOWER | |
| 31. | 103-7347 | [1] | MOTOR AS | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECPTACLE AS & WEDGE) |
| | 9W-0852 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 9X-1813BE | | SLEEVE | |
| 32. | 102-2736 | [1] | SCREEN-INLET | |
| 33. | 120-4789 | [1] | PLATE-COVER | |
| 34. | 112-1276 | [1] | SHAFT GP-DRIVE(ECCENTRIC WEIGHT) | |
| 35. | 120-4787 | [1] | SHAFT AS-VIBRATORY | |
| 36. | 102-2695 | [2] | BEARING | |
| 37. | 8I-0720 | [2] | CONNECTOR | |
| 38. | 5P-9982 | [2] | FITTING-GREASE | |
| 39. | 9S-1812 | [2] | FITTING(NIPPLE-PIPE) | |
| 40. | 030-9612 | [2] | SCREW-FORMING(10-24X0.5-IN) | |
| 41. | 045-4065 | [4] | SCREW-MACHINE(10-32X0.75-IN) | |
| 42. | 4B-4274 | [2] | WASHER(5.5X13X1.2-MM THK) | |
| 43. | 9F-8125 | [4] | LOCKWASHER | |
| 44. | 8M-6802 | [4] | SCREW-HEX SOCKET(1/4-20X1-IN) | |
| 45. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 46. | 6V-8185 | [4] | NUT(1/4-20-THD) | |
| 47. | 5P-2228 | [2] | BOLT(1/2-13X1-IN) | |
| 48. | 8T-8917 | [4] | BOLT(1/2-13X1.25-IN) | |
| 49. | 5P-2566 | [16] | BOLT(1/2-13X1.5-IN) | |
| 50. | 8T-4835 | [4] | BOLT(1/2-13X2-IN) | |
| 51. | 7X-0328 | [2] | BOLT(1/2-13X3.5-IN) | |
| 52. | 8T-4223 | [39] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 53. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 54. | 6V-8188 | [25] | NUT(1/2-13-THD) | |
| 55. | 1K-6872 | [2] | LOCKNUT(1/2-13-THD) | |
| 56. | 8T-5361 | [3] | WASHER-HARD(28X49X5-MM THK) | |
| 57. | 6K-3632 | [3] | LOCKNUT(1-8-THD) | |
| 58. | 102-2735 | [2] | KEY-SQUARE | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
