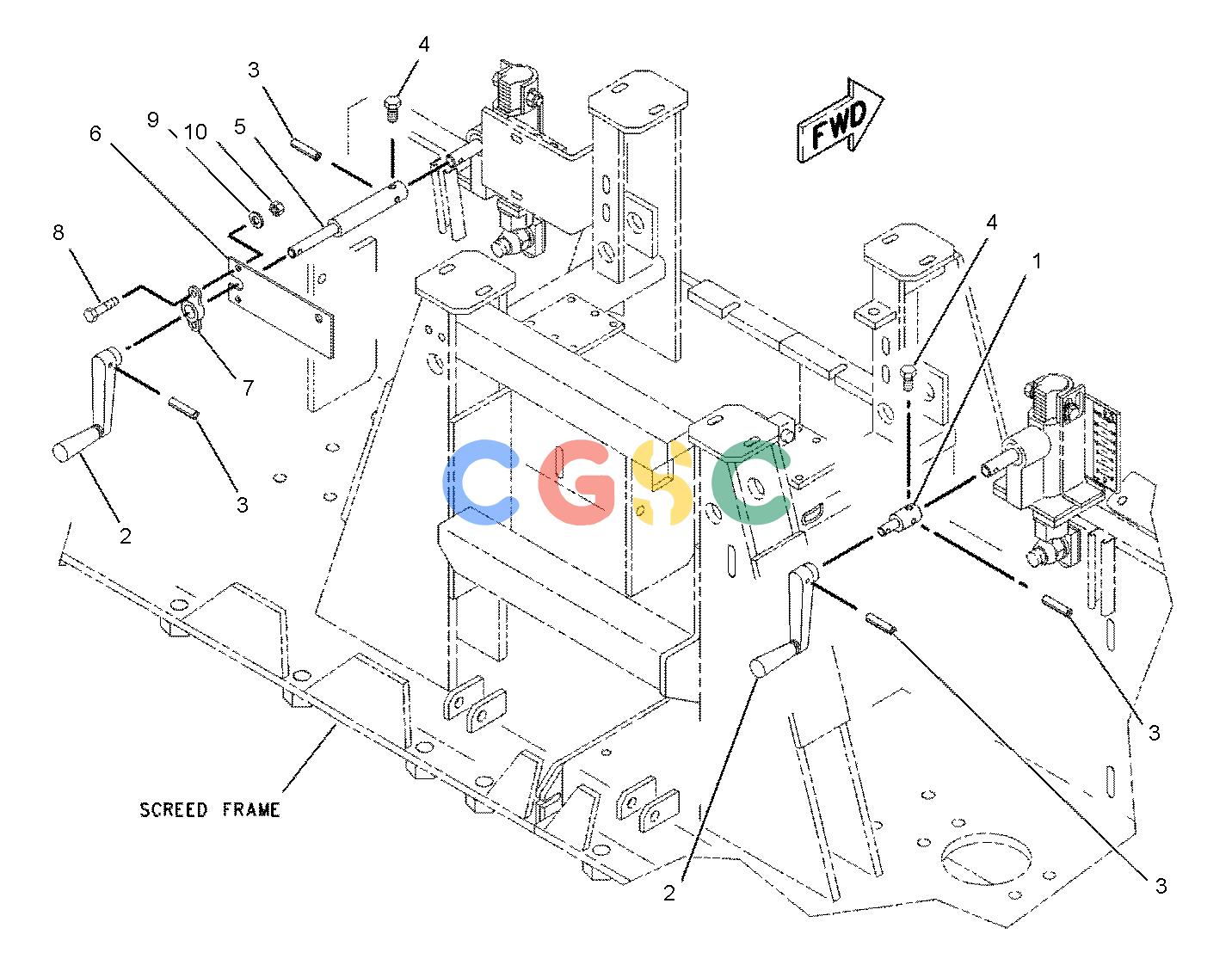

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8I-0280 | [1] | KEEPER | |
| 2. | 102-2714 | [2] | HANDLE | |
| 3. | 8T-7566 | [4] | PIN-SPRING | |
| 4. | 5S-7349 | [2] | BOLT(1/4-20X0.5-IN) | |
| 5. | [1] | SHAFT | ||
| 6. | [1] | PLATE | ||
| 7. | 102-2701 | [1] | BEARING | |
| 8. | 8T-8908 | [2] | BOLT(1/4-20X1-IN) | |
| 9. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 10. | 6V-8185 | [2] | NUT(1/4-20-THD) | |
