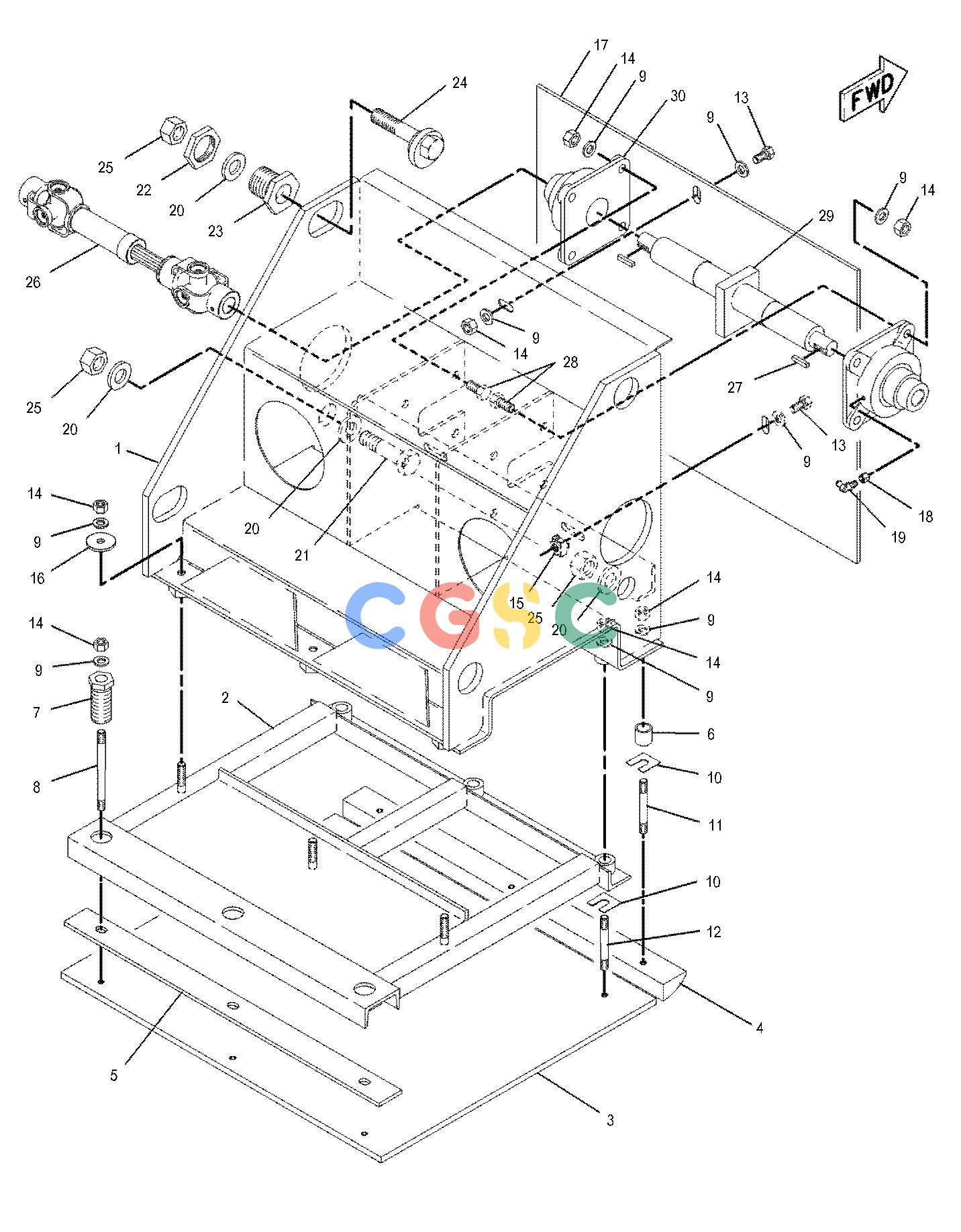

卡特零件查询（10-20B） 8I-0523: EXTENSION GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
664 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0525 | [1] | FRAME AS | |
| 2. | 8I-0526 | [1] | SUBFRAME AS | |
| 3. | 102-2723 | [1] | PLATE | |
| 4. | 8I-0181 | [1] | BAR-NOSE | |
| 5. | 102-2731 | [1] | BAR-SPACER | |
| 6. | 8I-0187 | [3] | SPACER | |
| 7. | 8I-0184 | [3] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 8. | 8I-0212 | [3] | STUD(1/2-13X5-IN) | |
| 9. | 8T-4223 | [24] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 10. | 8I-0889B | [3] | SHIM(0.02-IN THK) | |
| 11. | 8I-0185 | [3] | STUD(1/2-13X2.75-IN) | |
| 12. | 8I-0186 | [3] | STUD(1/2-13X3.5-IN) | |
| 13. | 5P-2228 | [3] | BOLT(1/2-13X1-IN) | |
| 14. | 6V-8188 | [21] | NUT(1/2-13-THD) | |
| 15. | 104-2231 | [2] | NUT-SPRING | |
| 16. | 4B-5275 | [6] | WASHER(17.5X44.4X3.5-MM THK) | |
| 17. | 102-2711 | [1] | PLATE | |
| 18. | 8I-0720 | [2] | CONNECTOR | |
| 19. | 3B-8485 | [2] | ELBOW | |
| 20. | 8T-5361 | [5] | WASHER-HARD(28X49X5-MM THK) | |
| 21. | 7X-0410 | [1] | BOLT(1-8X4-IN) | |
| 22. | 102-2719 | [2] | LOCKNUT(2-1/4-16-THD) | |
| 23. | 8I-0544 | [2] | BUSHING | |
| 24. | 8I-0528 | [2] | BOLT AS | |
| 25. | 6K-3632 | [4] | LOCKNUT(1-8-THD) | |
| 26. | 112-1276 | [1] | SHAFT GP-DRIVE(ECCENTRIC WEIGHT) | |
| 27. | 102-2735 | [2] | KEY-SQUARE | |
| 28. | 5P-2566 | [8] | BOLT(1/2-13X1.5-IN) | |
| 29. | 102-2712 | [1] | SHAFT AS-VIBRATORY | |
| 30. | 102-2695 | [2] | BEARING | |
| | B | | USE AS REQUIRED |
