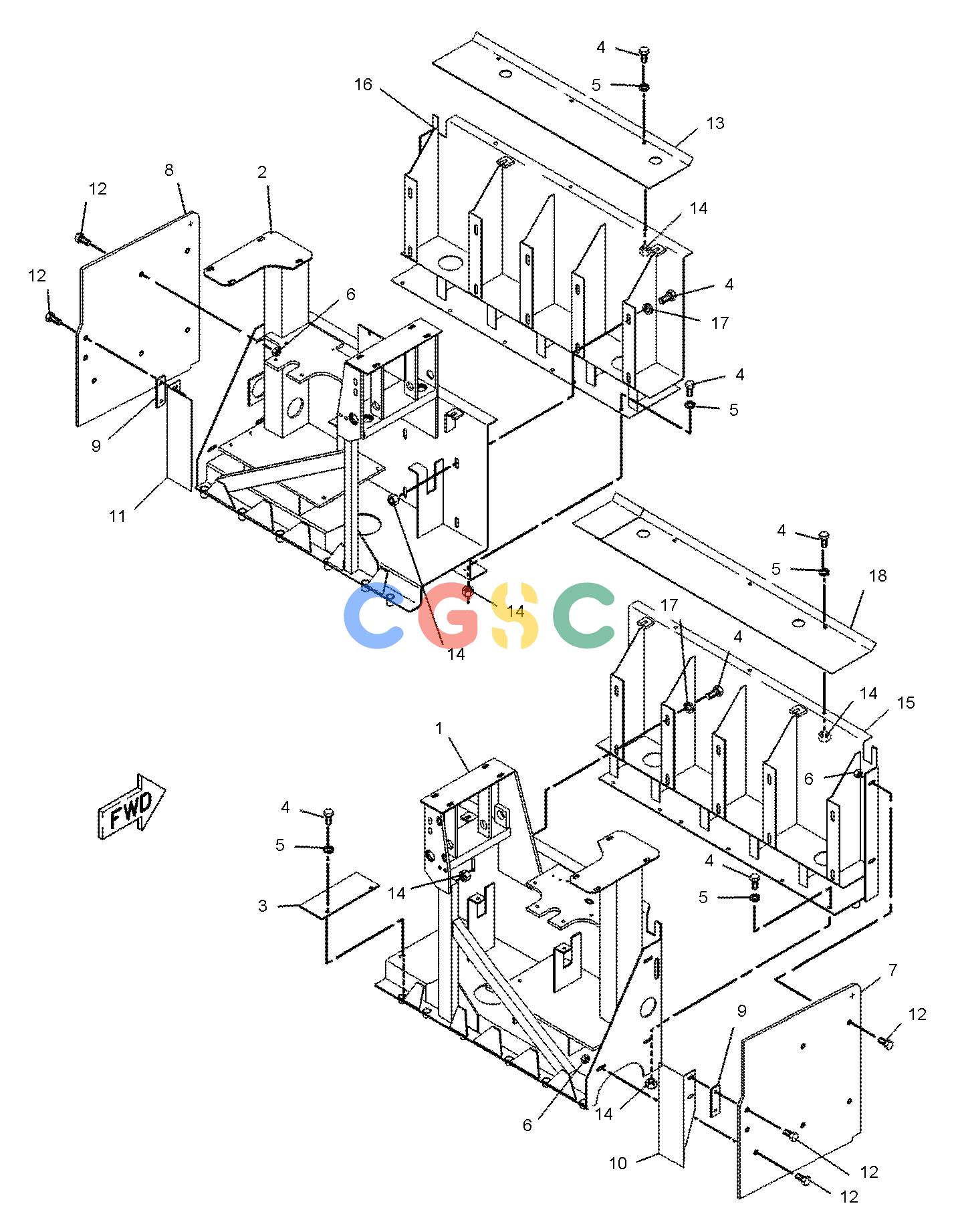

卡特零件查询（10-20B） 120-5904: FRAME GP-MAIN
广数供应链运营团队, 17 02月, 2025，浏览：
415 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0006 | [1] | FRAME AS(RH) | |
| 2. | 120-5907 | [1] | FRAME AS(LH) | |
| 3. | 8I-0082 | [1] | COVER-CENTER | |
| 4. | 8T-8917 | [40] | BOLT(1/2-13X1.25-IN) | |
| 5. | 8T-4223 | [36] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 104-2231 | [10] | NUT-SPRING | |
| 7. | 8I-0111 | [1] | COVER(RH) | |
| 8. | 8I-0110 | [1] | COVER(LH) | |
| 9. | 110-1250 | [2] | CLAMP AS | |
| | | | (EACH INCLUDES) |
| | 1F-0748 | [2] | NUT-WELD(1/2-13-THD) | |
| | 8I-0116 | [1] | SPACER | |
| 10. | 8I-0122 | [1] | COVER(RH) | |
| 11. | 8I-0121 | [1] | COVER(LH) | |
| 12. | 107-2783 | [14] | SCREW-FLAT HEAD(1/2-13X1-IN) | |
| 13. | 8I-0132 | [1] | COVER AS(LH) | |
| 14. | 6V-8188 | [42] | NUT(1/2-13-THD) | |
| 15. | 8I-0012 | [1] | SUBFRAME AS | |
| 16. | 8I-0013 | [1] | SUBFRAME AS | |
| 17. | 4B-5273 | [20] | WASHER(14.3X35X2.5-MM THK) | |
| 18. | 8I-0290 | [1] | COVER AS(RH) | |
| 19. | 138-7861B | [4] | SHIM(0.062-MM THK) | |
| 20. | 8I-0137 | [4] | TUBE AS | |
| 21. | 8T-8924B | [16] | BOLT(3/4-10X2.5-IN) | |
| 22. | 8T-4994 | [32] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 23. | 8I-0139B | [4] | SHIM(0.125-MM THK) | |
| 24. | 8I-0010 | [1] | FRAME AS(RH) | |
| 25. | 8I-0011 | [1] | FRAME AS(LH) | |
| 26. | 8I-0065 | [2] | COVER-END | |
| 27. | 7X-0366B | [16] | BOLT(3/4-10X2-IN) | |
| 28. | 8I-0014 | [1] | SUBFRAME AS | |
| 29. | 8I-0015 | [1] | SUBFRAME AS | |
| 30. | 4B-5275 | [24] | WASHER(17.5X44.4X3.5-MM THK) | |
| 31. | 5P-2424 | [8] | BOLT(1/2-13X2.25-IN) | |
| 32. | 8T-9384 | [4] | BOLT(1/2-13X0.875-IN) | |
| 33. | 122-6081 | [1] | ANGLE | |
| 34. | 122-6080 | [1] | BAR | |
| 35. | 5P-7750 | [8] | BOLT-BRONZE(3/8-16X0.75-IN) | |
| 36. | 8T-4896 | [8] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| | B | | USE AS REQUIRED |
