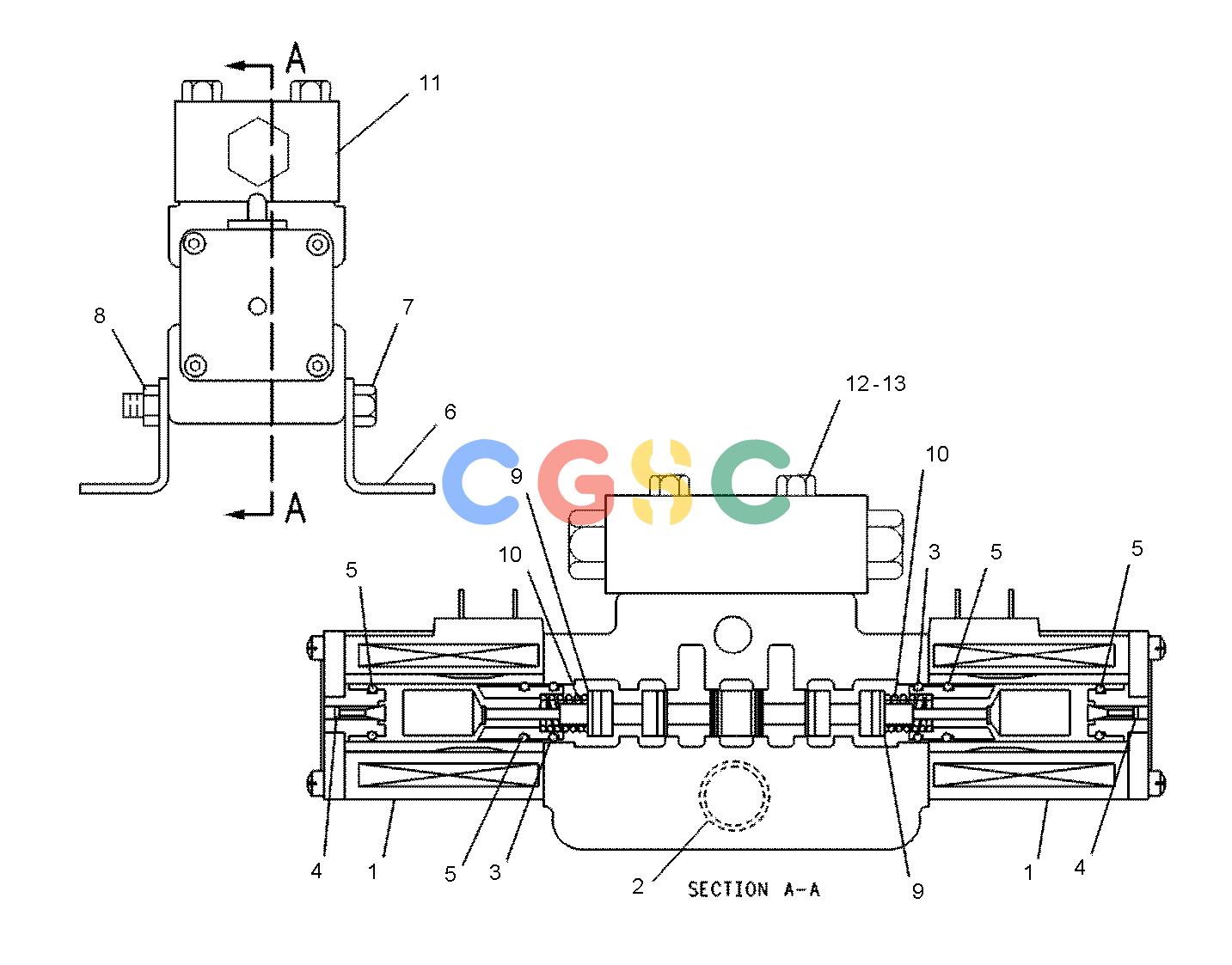

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 077-4042 | [2] | COIL | |
| 2. | 6V-8399 | [1] | SEAL-O-RING | |
| 3. | 7J-9108 | [2] | SEAL-O-RING | |
| 4. | 9X-7453 | [2] | SEAL-QUAD RING | |
| 5. | 095-1751 | [4] | SEAL-O-RING | |
| 6. | 106-1504 | [2] | KIT-BRACKET | |
| 7. | Z | [2] | BOLT | |
| 8. | Z | [2] | NUT | |
| 9. | 106-1502 | [2] | WASHER | |
| 10. | 106-1503 | [2] | SPRING | |
| 11. | 1G-6319Y | [1] | VALVE GP-SOLENOID | |
| 12. | 8C-3121 | [2] | BOLT(5/16-18X1.5-IN) | |
| 13. | 6V-8398 | [2] | SEAL-O-RING | |
| Y | SEPARATE ILLUSTRATION | |||
| Z | NOT SERVICED SEPARATELY | |||
