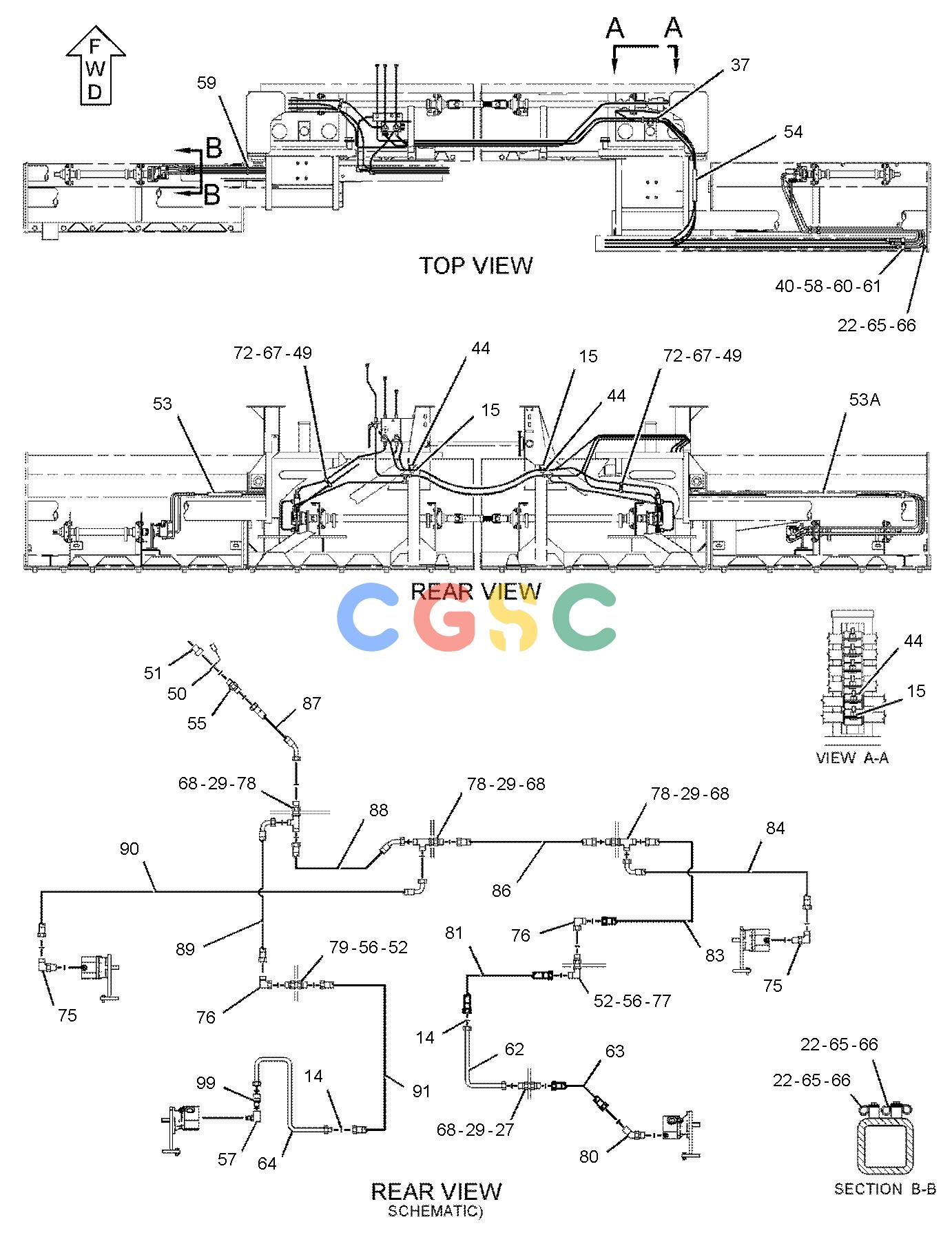

卡特零件查询（10-20B） 311-4878: LINES GP-VIBRATORY_卡特彼勒Caterpillar_工程机械

Pos.	Part No	Qty	Parts name
1.	5R-6304	[1]	COUPLER AS-QUICK DISCONNECT(FEMALE)
	3S-9233	[1]	SEAL-O-RING
		[1]	RETAINER
2.	5R-6305	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
3.	5R-5718	[1]	PLUG-DUST
4.	5R-5719	[1]	CAP-DUST
5.	148-8327	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-8637	[1]	CONNECTOR
	6V-9746	[1]	SEAL-O-RING
6.	148-8358	[1]	ELBOW AS
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8624	[1]	ELBOW
7.	148-8380	[1]	ELBOW AS
	6V-8398	[2]	SEAL-O-RING
	6V-8988	[1]	ELBOW
8.	159-8353I	[2]	HOSE AS
9.	153-6245	[2]	ELBOW AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	136-6811	[1]	ELBOW
10.	153-6237	[2]	ELBOW AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-9004	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
11.	208-1632Y	[1]	VALVE GP-CONTROL(VIBRATORY)
12.	308-0919I	[1]	HOSE AS
13.	6V-9851	[1]	ELBOW
14.	6V-8397	[6]	SEAL-O-RING
15.	5E-9375	[3]	CLAMP
16.	148-8370	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[1]	SEAL-O-RING
	6V-9851	[1]	ELBOW
18.	308-0468	[4]	MOUNT AS
19.	118-4331I	[1]	HOSE AS
20.	9R-9299I	[1]	HOSE AS
21.	148-8364	[2]	ELBOW AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8625	[1]	ELBOW
22.	8M-2770	[4]	CLIP(LOOP)
23.	313-3421I	[1]	HOSE AS
24.	313-3417I	[1]	HOSE AS
25.	148-8345	[1]	CONNECTOR AS
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8638	[1]	CONNECTOR
26.	308-2125Y	[4]	MOTOR GP-GEAR
27.	148-8457	[3]	UNION AS(STRAIGHT)
			(EACH INCLUDES)
	6V-8398	[2]	SEAL-O-RING
	6V-8995	[1]	UNION(STRAIGHT)
28.	148-8375	[3]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[2]	SEAL-O-RING
	6V-8981	[1]	ELBOW
29.	6V-9169	[10]	NUT(13/16-16-THD)
30.	317-8794I	[2]	HOSE AS
31.	313-3415I	[2]	HOSE AS
32.	310-1011	[1]	TUBE AS
33.	308-1514I	[1]	HOSE AS
34.	307-8430	[1]	TUBE AS
35.	307-8431	[1]	TUBE AS
36.	310-1012	[1]	TUBE AS
37.	177-2215	[2]	STRAP-DUAL CLAMP
38.	4M-6425	[16]	BOLT(5/16-18X1-IN)
39.	6V-8918	[8]	BOLT(5/16-18X1.25-IN)
40.	8T-4224	[2]	WASHER-HARD(8.8X16X2-MM THK)
41.	7X-0290	[2]	BOLT(3/8-16X3.5-IN)
42.	8T-4896	[2]	WASHER-HARD(10.2X18.5X2.5-MM THK)
43.	6V-8801	[2]	NUT(3/8-16-THD)
44.	077-8184	[3]	CLAMP
45.	6V-0852	[1]	CAP-DUST
46.	3J-7354	[1]	SEAL-O-RING
47.	7X-5315	[1]	FITTING(QUICK DISCONNECT)
49.	5P-4295	[4]	CLIP
50.	5R-5677	[1]	CAP-DUST(DUST)
51.	5R-6306	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
52.	8T-4994	[3]	WASHER-HARD(20X36.5X3.5-MM THK)
53.	160-2251G		SLEEVE-ABRASION(86.6-IN)
53A.	160-2251G		SLEEVE-ABRASION(67-IN)
54.	160-2248G		SLEEVE-ABRASION(36.2-IN)
55.	148-8340	[1]	CONNECTOR AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8639	[1]	CONNECTOR
56.	6V-9168	[2]	NUT(11/16-16-THD)
57.	180-9933	[1]	ADAPTER AS
	3J-7354	[1]	SEAL-O-RING
	135-9941	[1]	ADAPTER
58.	7X-0440	[1]	BOLT(5/16-18X1.75-IN)
59.	110-8760	[1]	STRAP
60.	086-9286	[2]	CLAMP
61.	3V-0046	[1]	PLATE
62.	307-8433	[1]	TUBE AS
63.	308-1404I	[1]	HOSE AS
64.	313-2533	[1]	TUBE AS
65.	8T-4121	[3]	WASHER-HARD(11X21X2.5-MM THK)
66.	8T-4137M	[3]	BOLT(M10X1.5X20-MM)
67.	6V-8185	[2]	NUT(1/4-20-THD)
68.	8T-4123	[16]	WASHER(22X35X3.5-MM THK)
69.	153-6241	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[1]	SEAL-O-RING
	8C-8989	[1]	ELBOW
70.	148-8328	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8633	[1]	CONNECTOR
72.	5P-4115	[2]	WASHER-HARD(7.2X19X2-MM THK)
73.	5P-4116	[44]	WASHER-HARD(8.8X20.5X2-MM THK)
74.	6V-8189	[20]	NUT(5/16-18-THD)
75.	148-8361	[2]	ELBOW AS(90-DEG)
			(EACH INCLUDES)
	3J-7354	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9200	[1]	ELBOW
76.	148-8367	[4]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	6V-9850	[1]	ELBOW
77.	148-8377	[1]	ELBOW AS
	6V-8397	[2]	SEAL-O-RING
	6V-8980	[1]	ELBOW
78.	148-8427	[3]	TEE AS
			(EACH INCLUDES)
	6V-8398	[3]	SEAL-O-RING
	8T-6895	[1]	TEE-UNION
79.	149-5452	[1]	UNION AS(STRAIGHT)
	6V-8397	[2]	SEAL-O-RING
	6V-8994	[1]	UNION(STRAIGHT)
80.	164-7908	[1]	ELBOW AS
	3J-7354	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	8T-7546	[1]	ELBOW
81.	313-3416I	[1]	HOSE AS
82.	313-3418I	[1]	HOSE AS
83.	313-3419I	[1]	HOSE AS
84.	313-3420I	[1]	HOSE AS
85.	313-3422I	[1]	HOSE AS
86.	313-3423I	[1]	HOSE AS
87.	313-3424I	[1]	HOSE AS
88.	313-3726I	[1]	HOSE AS
89.	313-3727I	[1]	HOSE AS
90.	317-8792I	[1]	HOSE AS
91.	317-8793I	[1]	HOSE AS
92.	148-8315	[2]	CONNECTOR AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8642	[1]	CONNECTOR
	7J-9108	[1]	SEAL-O-RING
93.	150-4039	[2]	TEE AS
			(EACH INCLUDES)
	7J-9108	[1]	SEAL-O-RING
	127-2141	[1]	TEE-SWIVEL-ORFS
94.	6V-8555	[2]	NUT-FACE SEAL(1-14-THD)
95.	156-4282	[2]	REDUCER AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	6V-8938	[1]	REDUCER
96.	235-3582	[2]	ELBOW AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	235-3581	[1]	ELBOW
97.	150-4046	[2]	ADAPTER AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	5P-1404	[1]	ADAPTER
98.	148-8439	[2]	TEE AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-8774	[1]	TEE
99.	150-4043	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-9873	[1]	CONNECTOR
100.	317-3784	[2]	TUBE AS
	G		ORDER BY THE INCH
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
