卡特零件查询（10-20B） 254-0056: PLATE & FILM GP
广数供应链运营团队, 17 02月, 2025，浏览：
526 次

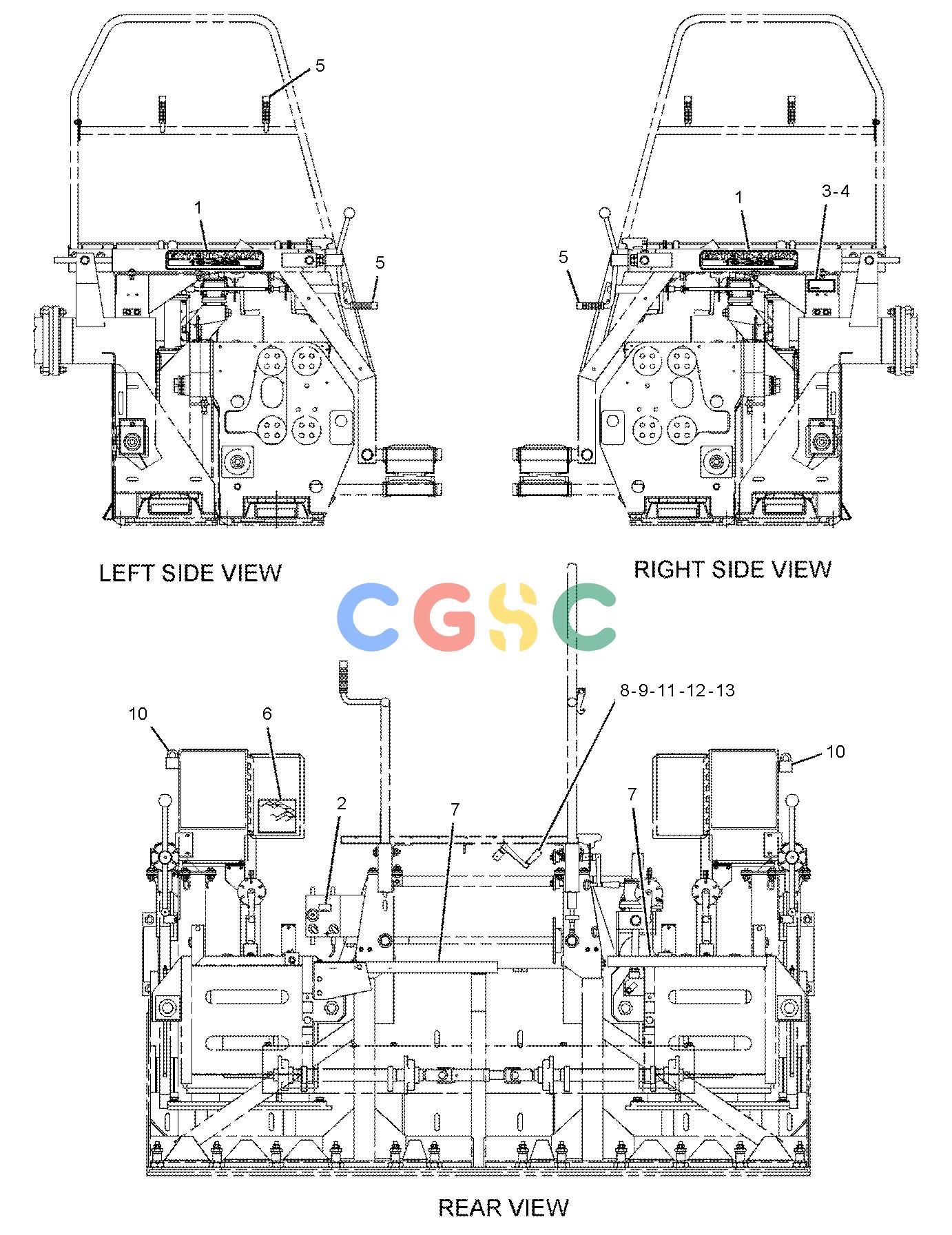

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 104-1788 | [2] | FILM(EXTENDAMAT) | |
| 2. | 206-0313 | [1] | FILM-INFORMATION(SCREED CONTROL) | |
| 3. | 187-8168 | [1] | PLATE-SERIAL NUMBER | |
| 4. | 168-8389 | [4] | TACK(METAL) | |
| 5. | 7X-9918 | [4] | GRIP-HANDLE | |
| 6. | 102-2708 | [1] | FILM(SCREED ADJUSTMENT) | |
| 7. | 081-9654 | [2] | FILM-NOTICE(SCREED RETRACT) | |
| 8. | 8T-7566 | [2] | PIN-SPRING | |
| 9. | 5S-7349 | [1] | BOLT(1/4-20X0.5-IN) | |
| 10. | 246-2641 | [2] | PADLOCK GP | |
| | | | (EACH INCLUDES) |
| | 5P-8500 | [1] | KEY | |
| 11. | 3S-2093 | [2] | STRAP-CABLE | |
| 12. | 8I-0280 | [1] | KEEPER | |
| 13. | 102-2714 | [1] | HANDLE | |
