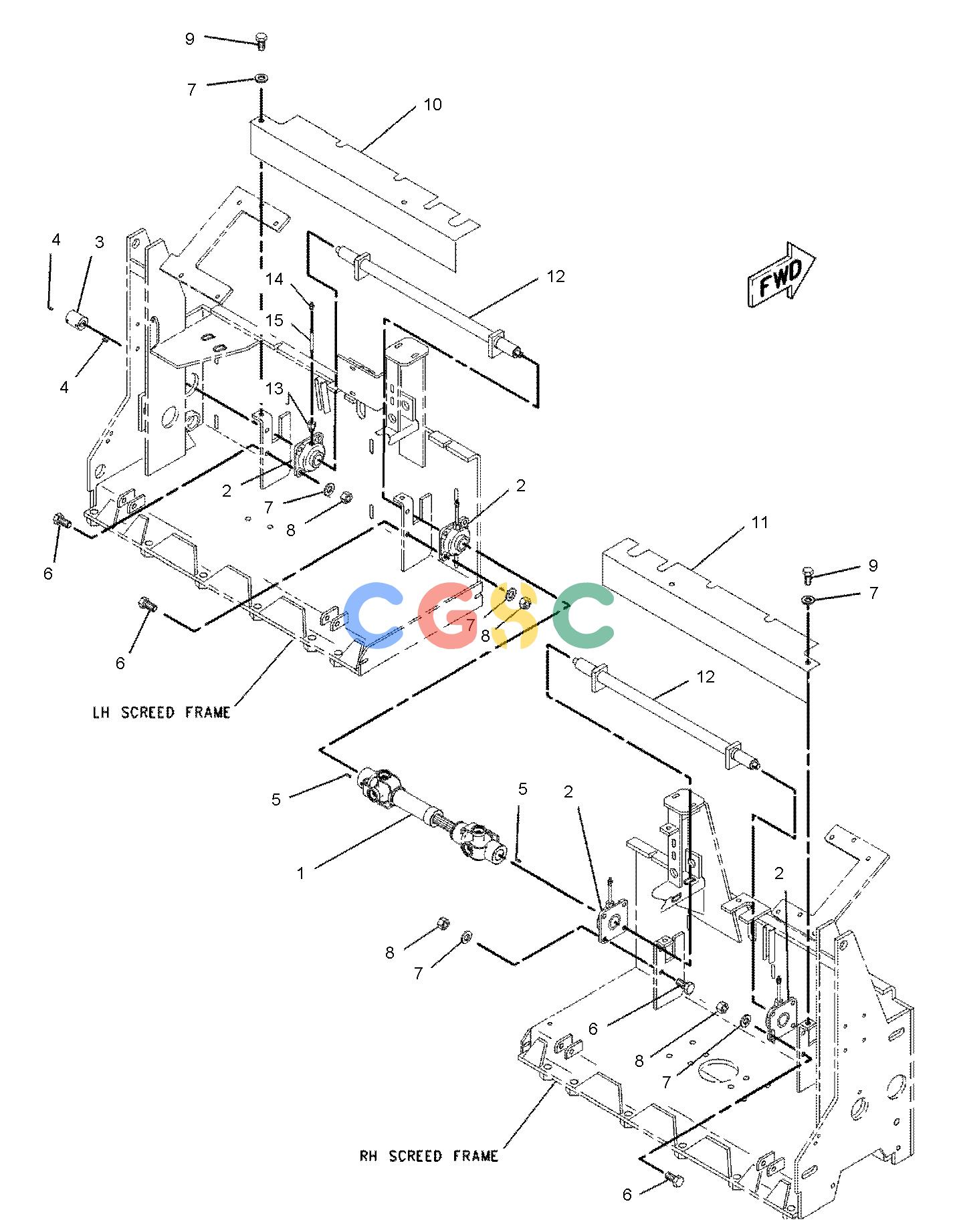

卡特零件查询（10B） 110-0998: VIBRATORY GP
广数供应链运营团队, 17 02月, 2025，浏览：
407 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 112-1276 | [1] | SHAFT GP-DRIVE(ECCENTRIC WEIGHT) | |
| 2. | 102-2695 | [4] | BEARING | |
| 3. | 139-2372 | [1] | COUPLING | |
| 4. | 105-1533 | [2] | KEY-SQUARE | |
| 5. | 102-2735 | [2] | KEY-SQUARE | |
| 6. | 5P-2566 | [16] | BOLT(1/2-13X1.5-IN) | |
| 7. | 8T-4223 | [20] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 8. | 6V-8188 | [16] | NUT(1/2-13-THD) | |
| 9. | 5P-2228 | [4] | BOLT(1/2-13X1-IN) | |
| 10. | 205-7165 | [1] | COVER | |
| 11. | 205-7164 | [1] | COVER | |
| 12. | 8I-0145 | [2] | SHAFT AS-VIBRATORY | |
| 13. | 8I-0720 | [4] | CONNECTOR | |
| 14. | 5P-9982 | [4] | FITTING-GREASE | |
| 15. | 9S-1812 | [4] | FITTING(NIPPLE-PIPE) | |
