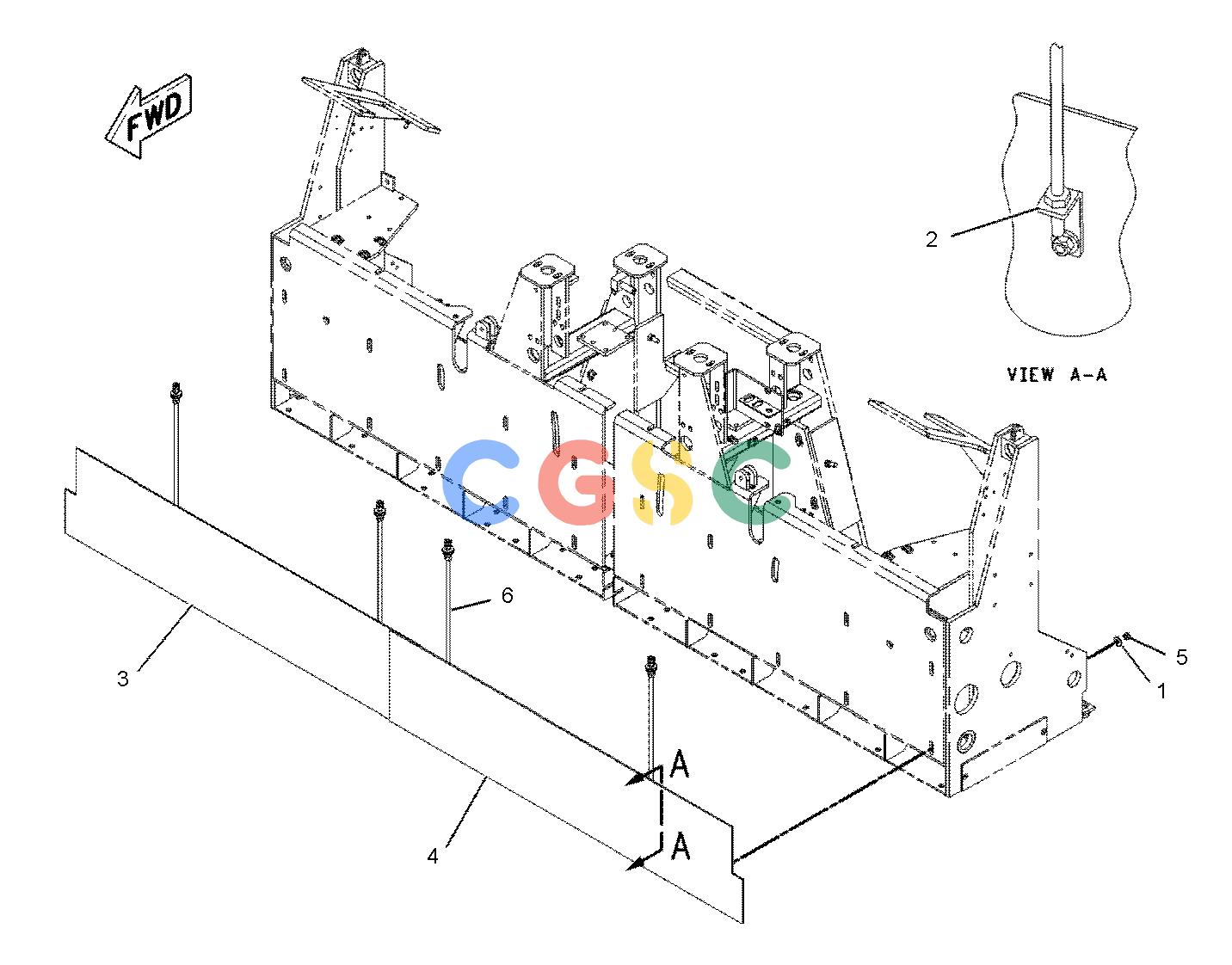

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 5P-1076 | [10] | WASHER-HARD(13.5X30X4-MM THK) | |
| 2. | 205-7163 | [4] | BRACKET AS | |
| (EACH INCLUDES) | ||||
| 8T-5911 | [1] | NUT-WELD(1/2-13-THD) | ||
| 3. | 205-7169 | [1] | PLATE AS(RH) | |
| 8C-3678 | [5] | STUD-WELD(1/2-13X1.125-IN) | ||
| 4. | 205-7170 | [1] | PLATE AS(LH) | |
| 8C-3678 | [5] | STUD-WELD(1/2-13X1.125-IN) | ||
| 5. | 1K-6872 | [10] | LOCKNUT(1/2-13-THD) | |
| 6. | 205-7167 | [4] | ROD AS | |
| 4B-5273 | [8] | WASHER(14.3X35X2.5-MM THK) | ||
| 6V-8188 | [12] | NUT(1/2-13-THD) | ||
