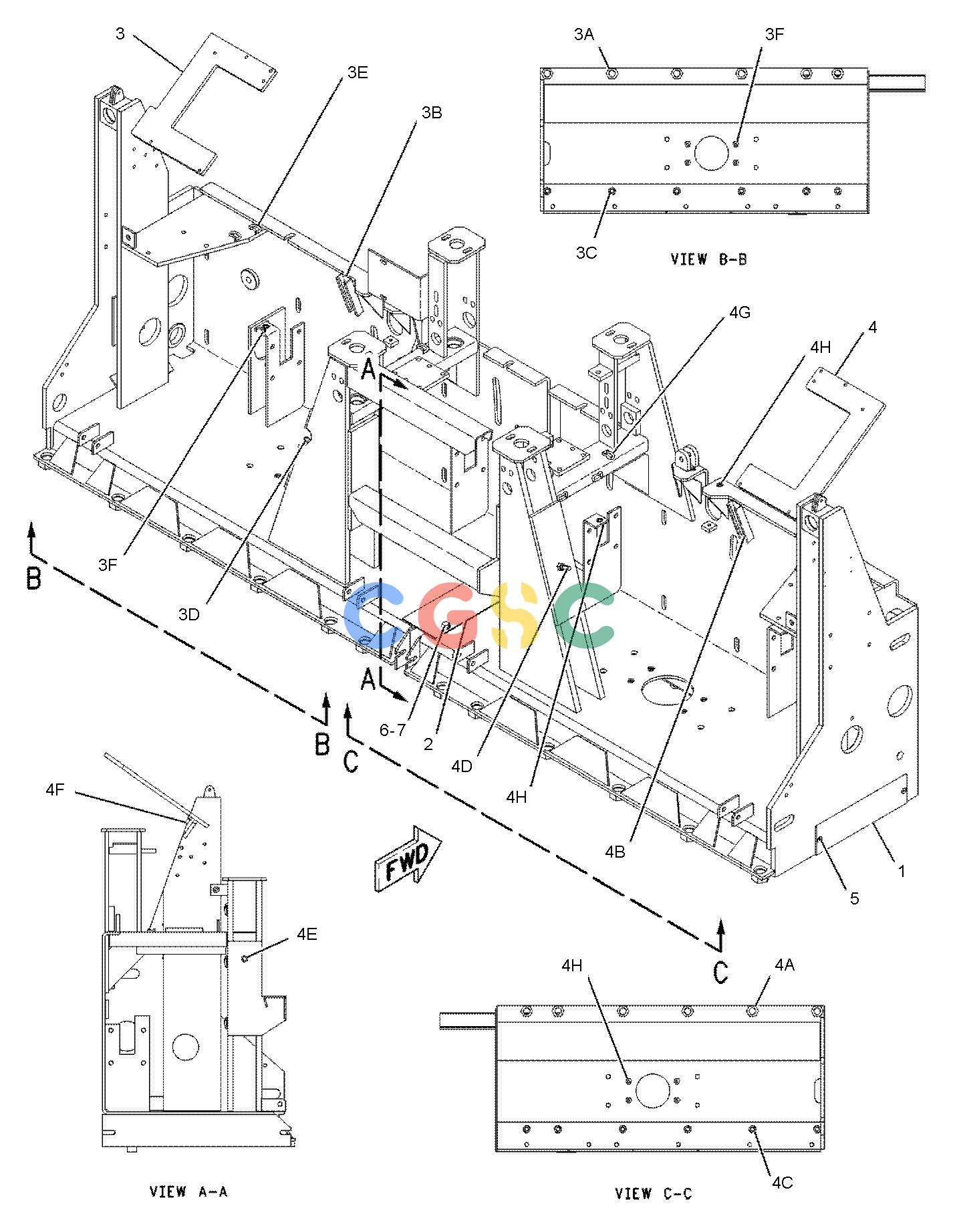

卡特零件查询（10B） 205-7178: FRAME GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
928 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 110-8391 | [2] | PLATE-COVER | |
| 2. | 111-8389 | [1] | PLATE-COVER | |
| 3. | 205-7176 | [1] | FRAME AS(LH) | |
| 3A. | 1A-4168 | [6] | NUT(1-1/4-12-THD) | |
| 3B. | 6R-4036 | [1] | CHANNEL | |
| 3C. | 8I-0130 | [6] | SPACER | |
| 3D. | 0S-1595 | [1] | BOLT(1/2-13X1.25-IN) | |
| 3E. | 7T-1099 | [8] | LINK | |
| 3F. | 8T-5911 | [8] | NUT-WELD(1/2-13-THD) | |
| 4. | 205-7177 | [1] | FRAME AS(RH) | |
| 4A. | 1A-4168 | [6] | NUT(1-1/4-12-THD) | |
| 4B. | 6R-4036 | [1] | CHANNEL | |
| 4C. | 8I-0130 | [6] | SPACER | |
| 4D. | 0S-1595 | [1] | BOLT(1/2-13X1.25-IN) | |
| 4E. | 0S-1621 | [1] | BOLT(1/2-13X1-IN) | |
| 4F. | 5M-3062 | [1] | BOLT(3/8-16X0.75-IN) | |
| 4G. | 7T-1099 | [9] | LINK | |
| 4H. | 8T-5911 | [10] | NUT-WELD(1/2-13-THD) | |
| 5. | 030-7571 | [4] | BOLT(3/8-16X1-IN) | |
| 6. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 7. | 8T-8917 | [2] | BOLT(1/2-13X1.25-IN) | |
