卡特零件查询（10B） 117-7805: EXTENSION GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
759 次

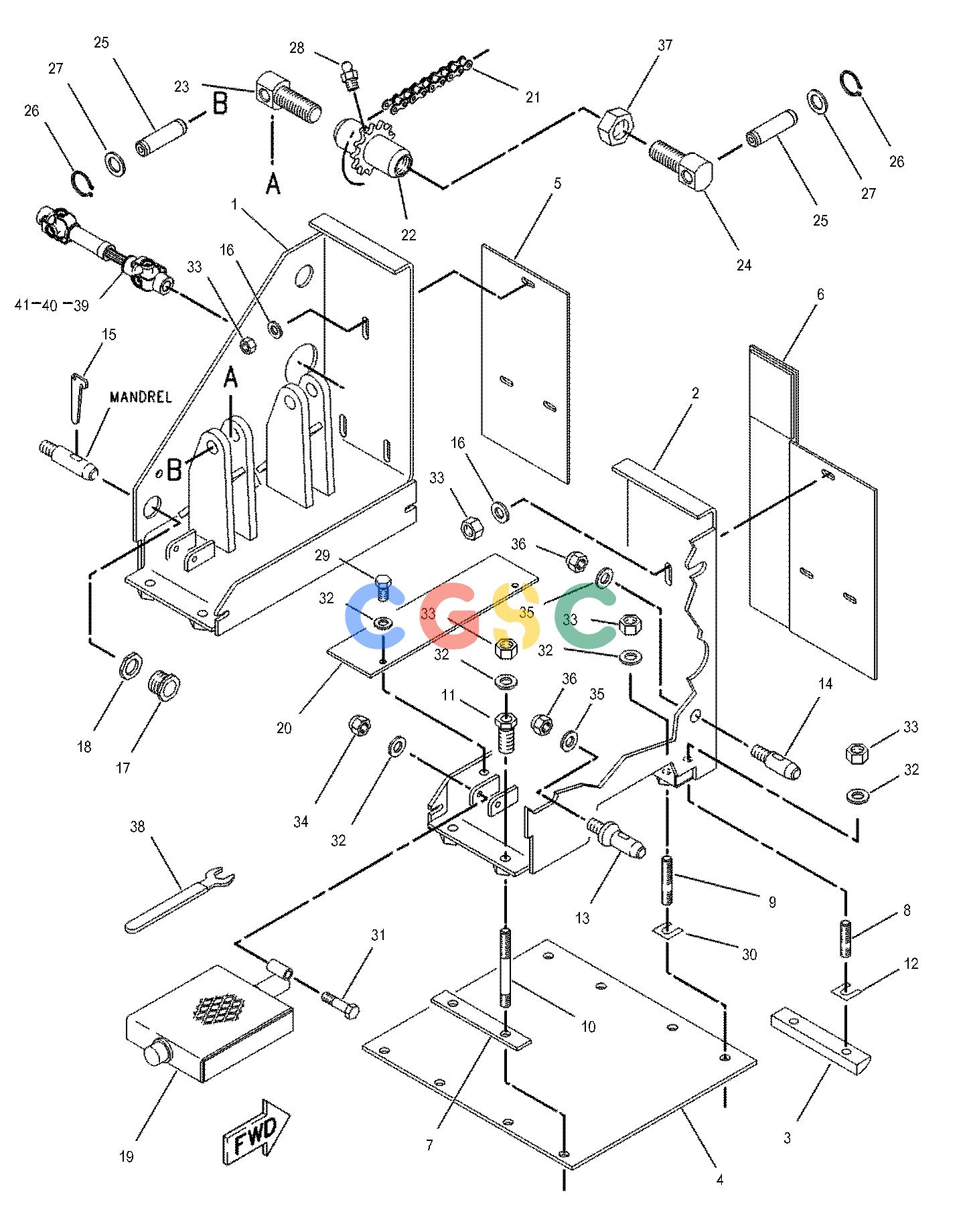

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 117-7810 | [1] | FRAME AS(LH) | |
| 2. | 117-7811 | [1] | FRAME AS | |
| 3. | 8I-0182 | [2] | BAR-NOSE | |
| 4. | 117-7924 | [1] | PLATE-EXTENSION | |
| 5. | 133-3563 | [1] | PLATE AS-DEFLECTOR | |
| 6. | 117-7929 | [1] | PLATE AS(RH) | |
| 7. | 121-0201 | [2] | BAR-SPACER | |
| 8. | 8I-0189 | [4] | STUD(1/2-13X1.75-IN) | |
| 9. | 8I-0185 | [4] | STUD(1/2-13X2.75-IN) | |
| 10. | 8I-0212 | [4] | STUD(1/2-13X5-IN) | |
| 11. | 8I-0184 | [4] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 12. | 8I-0889B | [4] | SHIM(0.02-IN THK) | |
| 13. | 8C-7099 | [2] | MANDREL | |
| 14. | 8C-7100 | [1] | MANDREL | |
| 15. | 8C-7215 | [3] | PIN(SHORT WEDGE) | |
| 16. | 5P-1076 | [6] | WASHER-HARD(13.5X30X4-MM THK) | |
| 17. | 8C-7102 | [2] | NUT(ECCENTRIC) | |
| 18. | 8C-7103 | [2] | NUT-JAM(2.35-18-THD) | |
| 19. | 117-8345 | [2] | PLATFORM AS-EXTENSION | |
| 20. | 111-8389 | [1] | PLATE-COVER | |
| 21. | 121-2497 | [1] | CHAIN AS | |
| | 5B-6386 | [1] | LINK-CONNECTING | |
| | 5B-6408 | [1] | LINK-OFFSET | |
| 22. | 081-7748 | [2] | SPROCKET AS | |
| 23. | 081-7749 | [2] | SCREW | |
| 24. | 081-7750 | [2] | SCREW | |
| 25. | 082-2460 | [4] | PIN | |
| 26. | 082-2532 | [8] | RING-RETAINING | |
| 27. | 082-2415 | [2] | SHIM | |
| 28. | 3B-8489 | [4] | FITTING-GREASE(1/8-27 PTF) | |
| 29. | 8T-8917 | [2] | BOLT(1/2-13X1.25-IN) | |
| 30. | 129-8817B | [4] | SHIM(0.02-IN THK) | |
| 31. | 7X-0328 | [2] | BOLT(1/2-13X3.5-IN) | |
| 32. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 33. | 6V-8188 | [18] | NUT(1/2-13-THD) | |
| 34. | 1K-6872 | [2] | LOCKNUT(1/2-13-THD) | |
| 35. | 8T-5361 | [3] | WASHER-HARD(28X49X5-MM THK) | |
| 36. | 6K-3632 | [3] | LOCKNUT(1-8-THD) | |
| 37. | 081-7752 | [1] | NUT-JAM | |
| 38. | 8C-7189 | [1] | WRENCH | |
| 39. | 139-2065BC | [1] | SHAFT AS-DRIVE(40-IN EXTENDED) | |
| | 123-7438B | [1] | SHAFT AS-DRIVE(47-IN EXTENDED) | |
| | 123-7439B | [1] | SHAFT AS-DRIVE(36-IN EXTENDED) | |
| 40. | 105-1533C | [1] | KEY-SQUARE | |
| 41. | 102-2735C | [2] | KEY-SQUARE | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
