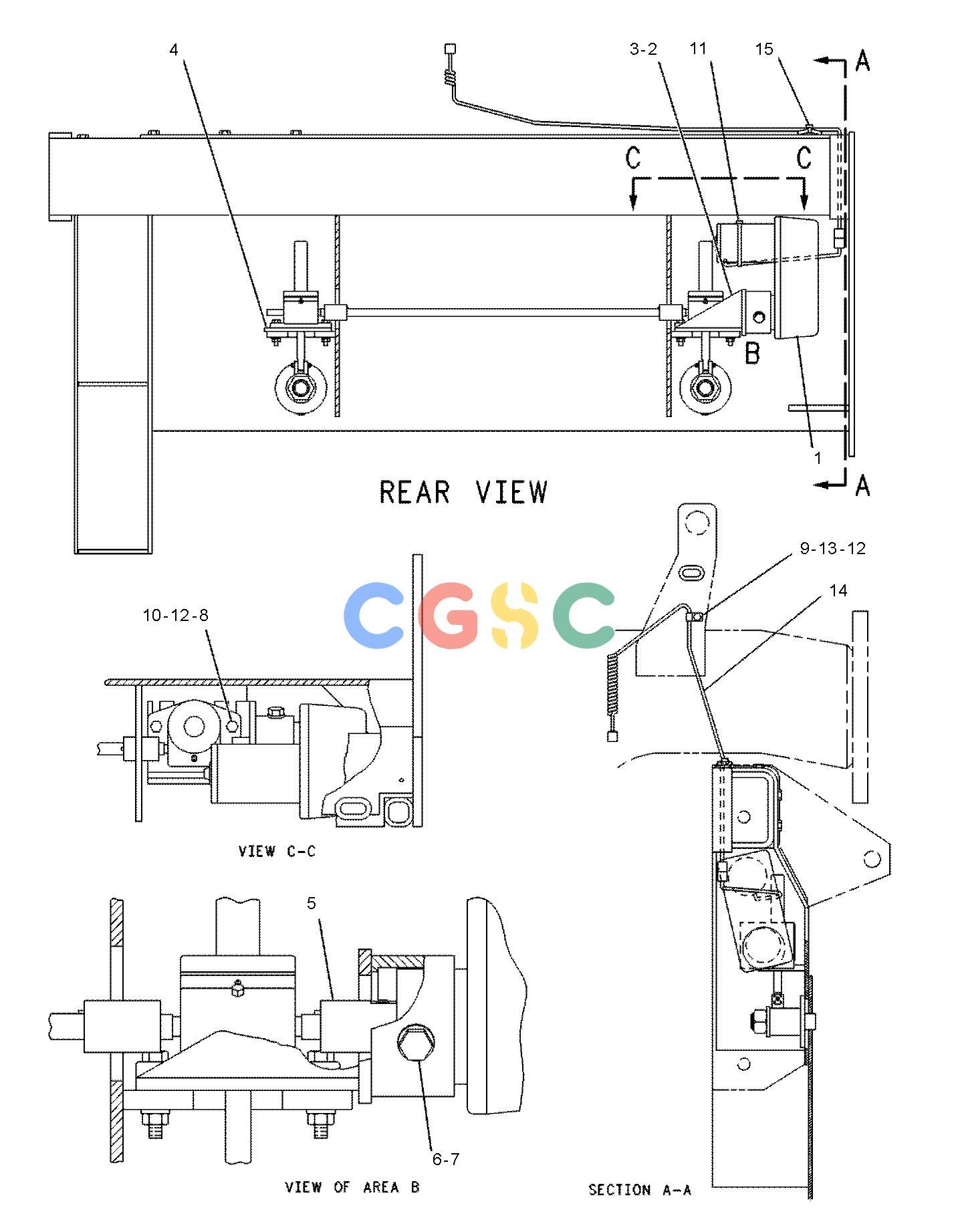

卡特零件查询（10B） 122-0160: ADJUSTER GP-STRIKE-OFF
广数供应链运营团队, 17 02月, 2025，浏览：
462 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 109-0336Y | [2] | MOTOR GP-POWER ADJUSTER(24-VOLT) | |
| 2. | 122-0154 | [1] | SUPPORT AS(RH) | |
| 3. | 122-0155 | [1] | SUPPORT AS(LH) | |
| 4. | 122-0156 | [2] | PLATE | |
| 5. | 8I-0740 | [2] | COUPLING GP | |
| | | | (EACH INCLUDES) |
| | 4B-9806 | [1] | SETSCREW-SOCKET(1/4-20X0.25-IN) | |
| 6. | 4L-6454 | [4] | BOLT(3/8-16X1-IN) | |
| 7. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 8. | 4M-5282 | [8] | BOLT(1/4-20X1.5-IN) | |
| 9. | 8M-2771 | [2] | CLIP | |
| 10. | 6V-8185 | [8] | NUT(1/4-20-THD) | |
| 11. | 7K-1181 | [2] | STRAP-CABLE | |
| 12. | 8T-4205 | [10] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 13. | 8T-8908 | [2] | BOLT(1/4-20X1-IN) | |
| 14. | 124-1497 | [2] | CABLE AS-COILED | |
| 15. | 8L-8413 | [2] | STRAP-CABLE(WHITE) | |
| 16. | 7N-8008 | [2] | SWITCH AS-TOGGLE(EXTENDER RAISE/LOWER) | |
| | | | (EACH GP INCLUDES) |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 17. | 114-2383 | [2] | WIRE AS | |
| 18. | 105-6610 | [4] | WIRE AS | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH & RH SIDES |
| | Y | | SEPARATE ILLUSTRATION |
