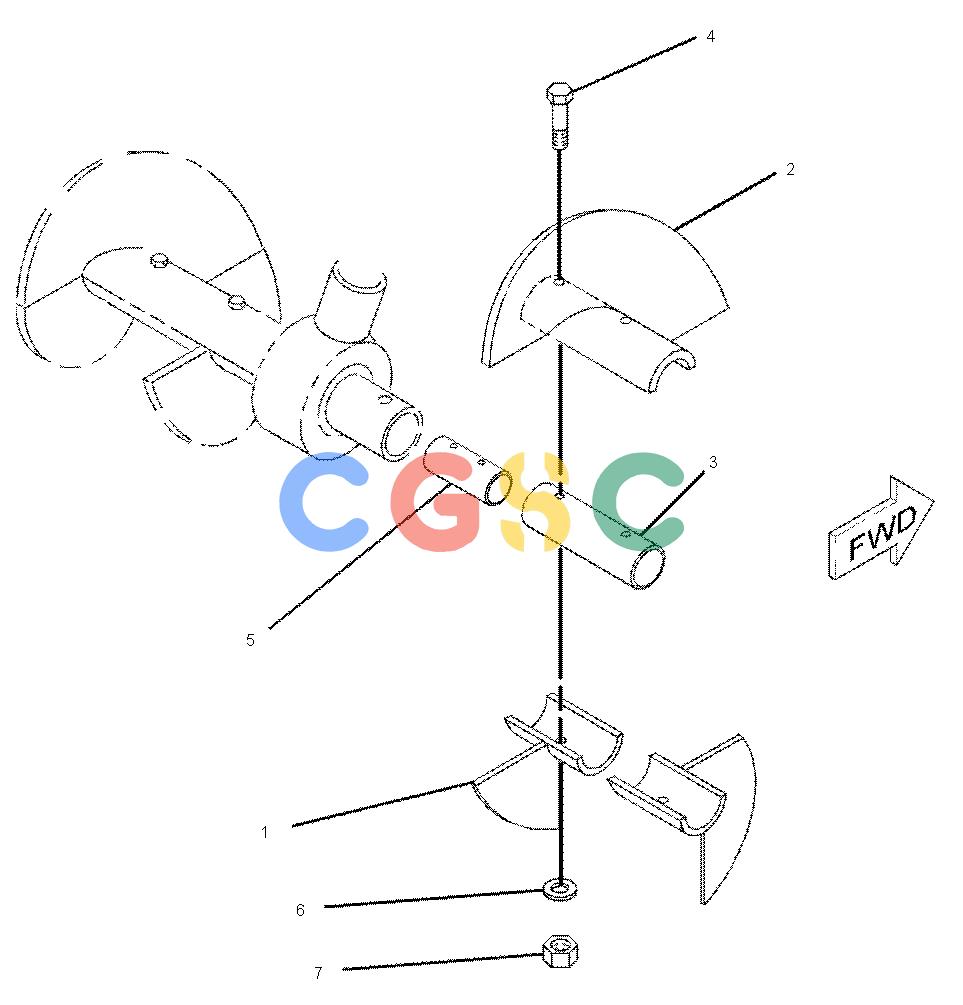

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8T-8007N | [2] | SEGMENT-QUARTER AUGER | |
| 2. | 8T-8005 | [1] | SEGMENT-HALF AUGER | |
| 3. | 8C-7873 | [1] | SHAFT-EXTENSION | |
| 4. | 7X-0334 | [2] | BOLT(1/2-13X5-IN) | |
| 5. | 081-7153 | [1] | SHAFT-COUPLING | |
| 6. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 7. | 1K-6872 | [2] | LOCKNUT(1/2-13-THD) | |
| N | REFER TO AUGER | |||
