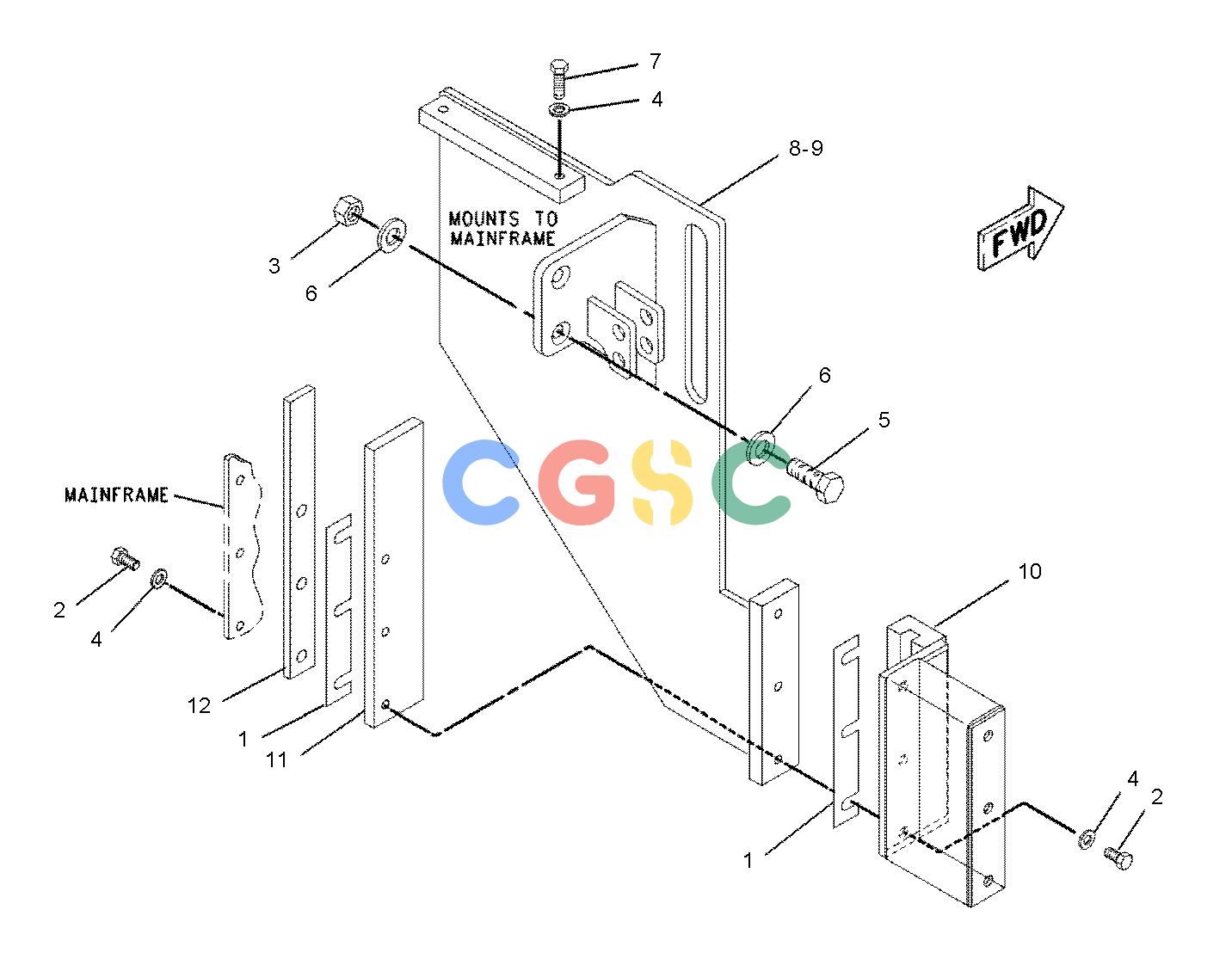

卡特零件查询（10B） 116-9510: EXTENSION GP-MAIN FRAME
广数供应链运营团队, 17 02月, 2025，浏览：
729 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 121-3920B | [4] | SHIM(1.65-MM THK) | |
| 2. | 7X-0345 | [12] | BOLT(5/8-11X1.75-IN) | |
| 3. | 6V-8182 | [6] | NUT(3/4-10-THD) | |
| 4. | 8T-4122 | [16] | WASHER-HARD(17X32X3.5-MM THK) | |
| 5. | 8T-8924 | [6] | BOLT(3/4-10X2.5-IN) | |
| 6. | 8T-4994 | [12] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 7. | 7X-0346 | [4] | BOLT(5/8-11X2-IN) | |
| 8. | 203-3733 | [1] | SUPPORT AS | |
| 9. | 203-3734 | [1] | SUPPORT AS | |
| 10. | 120-6673 | [2] | EXTENSION AS | |
| 11. | 120-7678 | [2] | BAR | |
| 12. | 120-7679 | [2] | BAR | |
| | B | | USE AS REQUIRED |
