卡特零件查询（10B） 130-2145: EXTENSION AR
广数供应链运营团队, 17 02月, 2025，浏览：
190 次

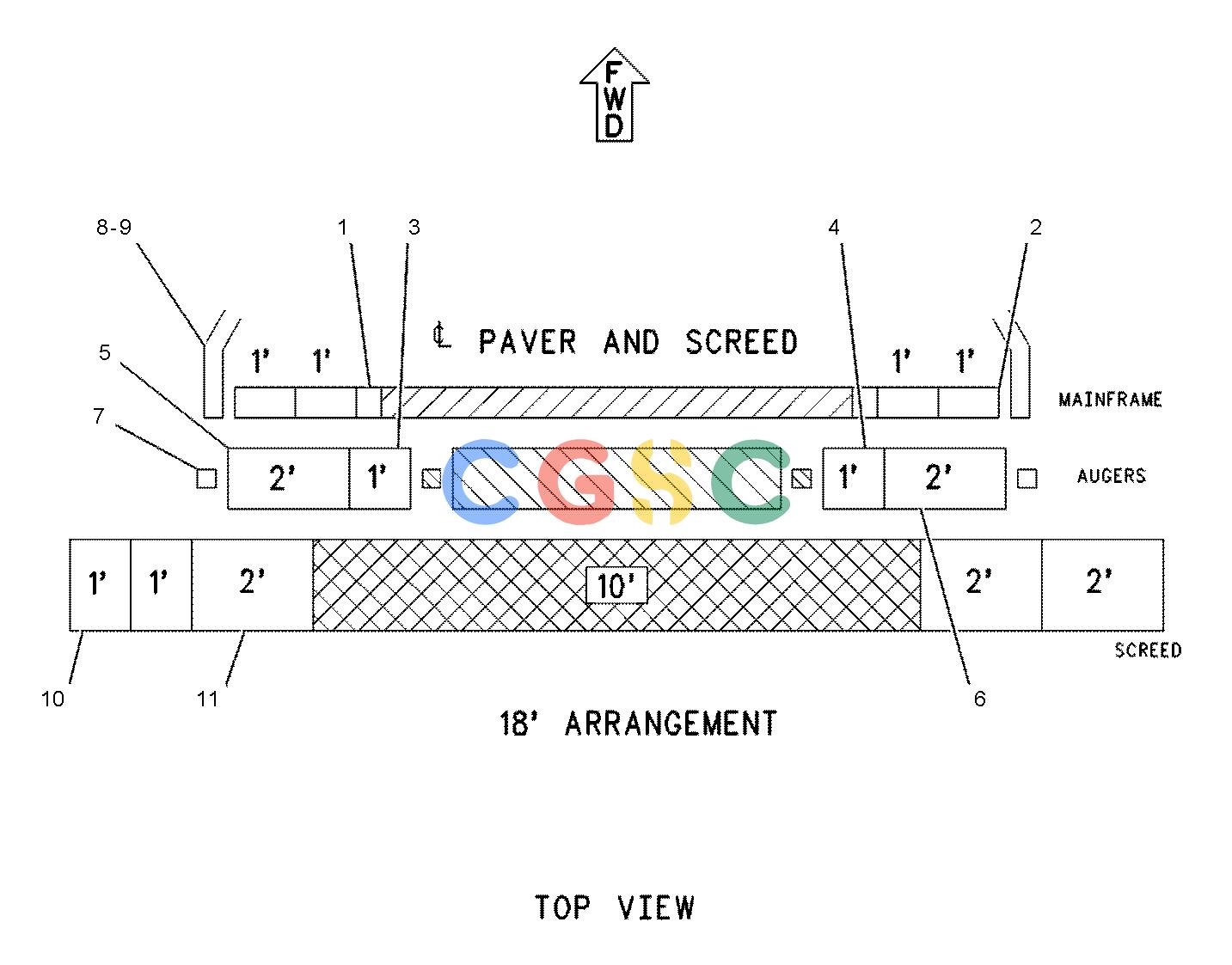

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 116-9510Y | [1] | EXTENSION GP-MAIN FRAME(6-IN) | |
| 2. | 106-9714Y | [4] | EXTENSION GP-MAIN FRAME(1-FT)(MAINFRAME) | |
| 3. | 5E-9808Y | [1] | EXTENSION GP-AUGER(1-FT, LH) | |
| 4. | 5E-9809Y | [1] | EXTENSION GP-AUGER(1-FT, RH) | |
| 5. | 5E-9825Y | [1] | EXTENSION GP-AUGER(2-FT, LH) | |
| 6. | 5E-9826Y | [1] | EXTENSION GP-AUGER(2-FT, RH) | |
| 7. | 116-9509Y | [2] | BEARING GP-AUGER(OUTBOARD) | |
| 8. | 106-9689Y | [2] | BRACE GP | |
| 9. | 109-2722Y | [2] | BRACKET GP-SUPPORT | |
| 10. | 117-7802Y | [2] | EXTENSION GP-SCREED(1-FT) | |
| 11. | 119-1411Y | [3] | EXTENSION GP-SCREED(2-FT WITHOUT HEAT) | |
| | 123-7435F | [1] | SHAFT-DRIVE | |
| | 123-7436F | [1] | SHAFT-DRIVE | |
| | F | | NOT SHOWN |
| | Y | | SEPARATE ILLUSTRATION |
