卡特零件查询（8） 106-3443: BOX GP-EXTENSION
广数供应链运营团队, 17 02月, 2025，浏览：
873 次

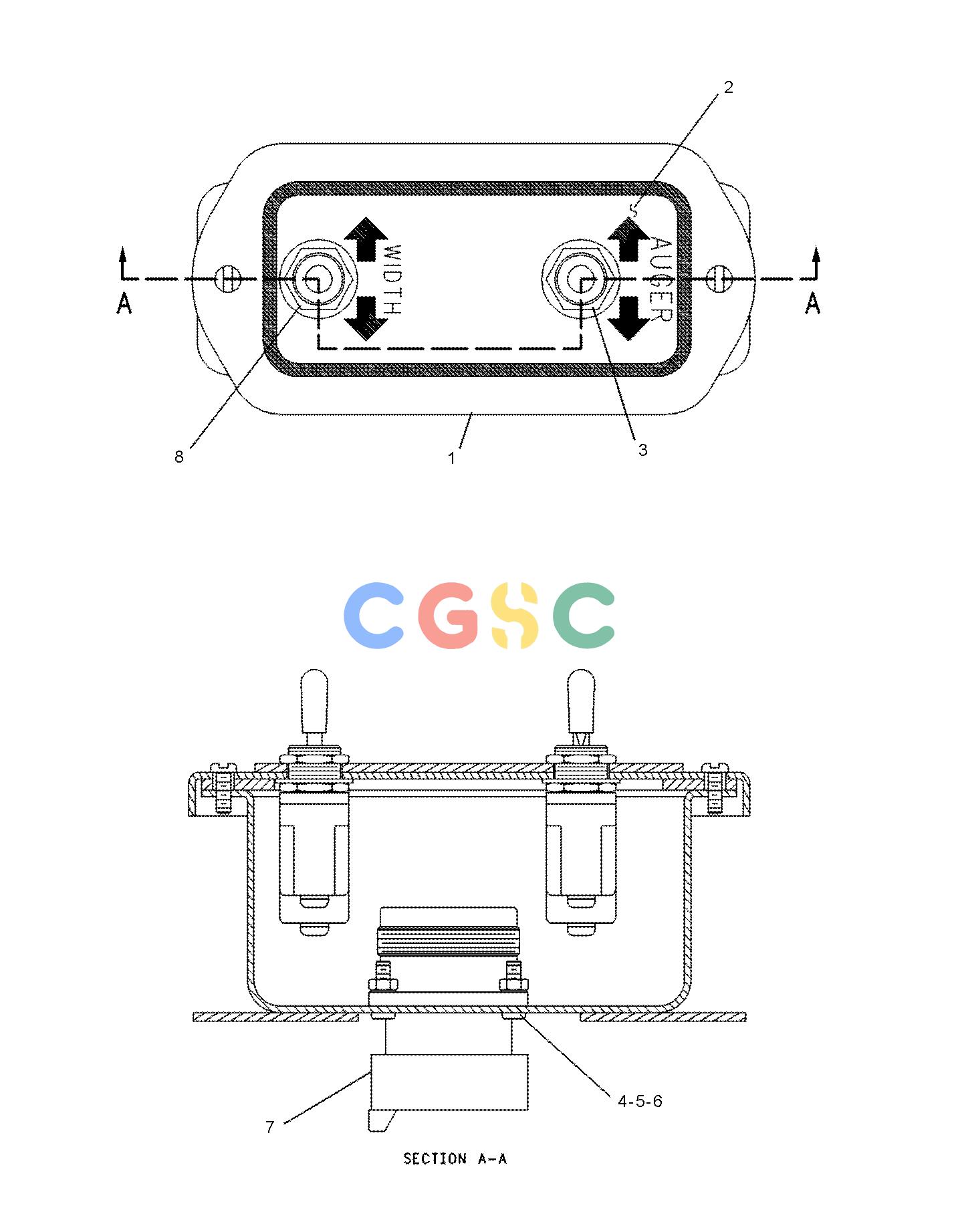

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 104-6854 | [1] | BOX-EXTENSION | |
| 2. | | [1] | PLATE |
| 3. | 9G-0011 | [1] | SWITCH AS-TOGGLE(AUGER) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 4. | 6V-2480 | [4] | SCREW(4-40X0.5-IN) | |
| 5. | 092-4917 | [4] | WASHER(3.2X14X0.5-MM THK) | |
| 6. | 6B-4540 | [4] | NUT(4-40-THD) | |
| 7. | 106-3448 | [1] | HARNESS AS-SCREED(EXTENDER) | |
| 8. | 9G-0011 | [1] | SWITCH AS-TOGGLE(EXTENDER WIDTH) | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
