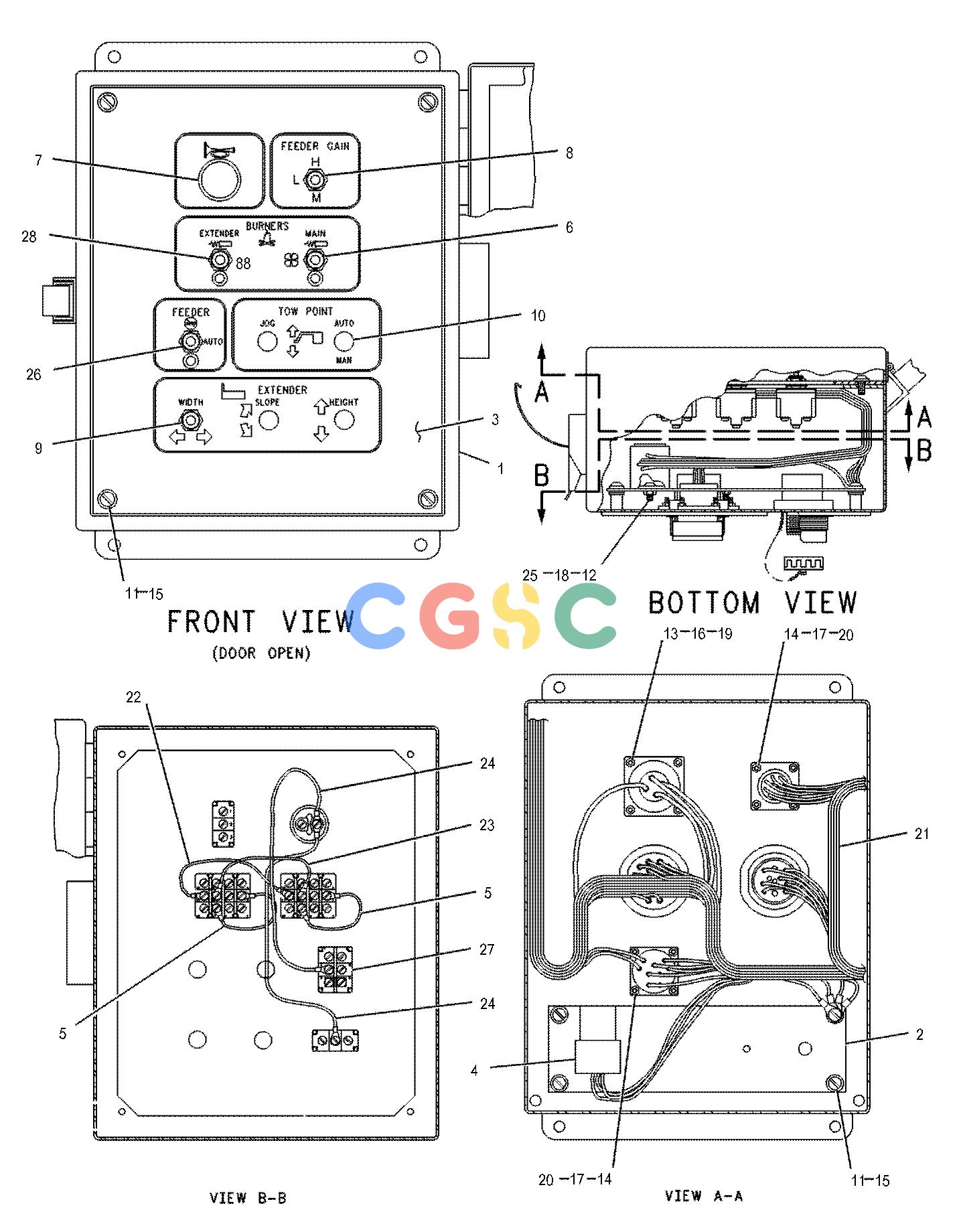

卡特零件查询（8） 129-9805: BOX GP-SCREED CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
911 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 104-3660 | [1] | BOX(LH) | |
| 2. | 104-4714 | [1] | PLATE | |
| 3. | 112-7973 | [1] | PLATE(RH) | |
| 4. | 3E-9362 | [1] | RELAY AS(12-VOLT) | |
| 5. | 105-6610 | [2] | WIRE AS | |
| 6. | 8C-2034 | [1] | SWITCH(MAIN BURNER) | |
| 7. | 3D-9718 | [1] | SWITCH AS-PUSH BUTTON(HORN) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 6V-8832 | [1] | NUT(5/8-32-THD) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 8. | 1V-6652 | [1] | SWITCH AS-TOGGLE(FEEDER GAIN) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 9. | 9G-0011 | [1] | SWITCH AS-TOGGLE(EXTENDER WIDTH) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 10. | 3V-4694 | [4] | PLUG-BUTTON | |
| 11. | 5P-7162 | [8] | SCREW-MACHINE(10-32X0.5-IN) | |
| 12. | 7S-1197 | [1] | SCREW-MACHINE(8-32X0.5-IN) | |
| 13. | 9X-6257 | [4] | SCREW-MACHINE(6-32X0.625-IN) | |
| 14. | 6V-2480 | [8] | SCREW(4-40X0.5-IN) | |
| 15. | 4B-4274 | [8] | WASHER(5.5X13X1.2-MM THK) | |
| 16. | 4B-5324 | [4] | WASHER(3.9X9.6X1.2-MM THK) | |
| 17. | 092-4917 | [8] | WASHER(3.2X14X0.5-MM THK) | |
| 18. | 6D-5801 | [1] | LOCKNUT(8-32-THD) | |
| 19. | 4B-2041 | [4] | NUT(6-32-THD) | |
| 20. | 6B-4540 | [8] | NUT(4-40-THD) | |
| 21. | 120-8471 | [1] | HARNESS AS | |
| 22. | 105-7838 | [1] | WIRE AS | |
| 23. | 105-7839 | [1] | WIRE AS | |
| 24. | 105-7840 | [2] | WIRE AS | |
| 25. | 4B-4863 | [1] | WASHER(4.7X11X1.2-MM THK) | |
| 26. | 081-7041 | [1] | SWITCH AS-TOGGLE(FEEDER) | |
| 27. | 9N-9800 | [1] | JUMPER-TERMINAL | |
| 28. | 8C-2034 | [1] | SWITCH(EXTENDER BURNER) | |
